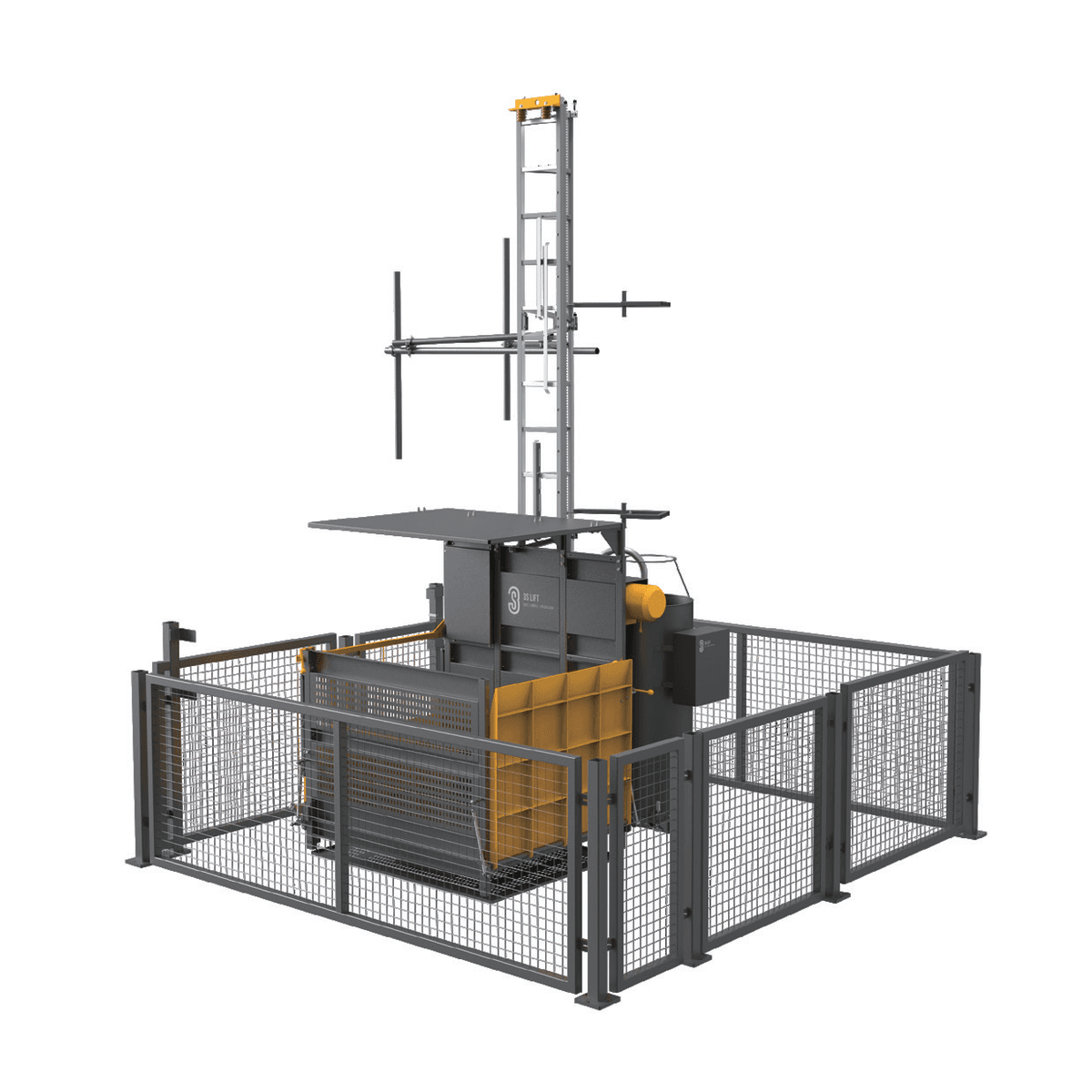

3S 1500H/HP

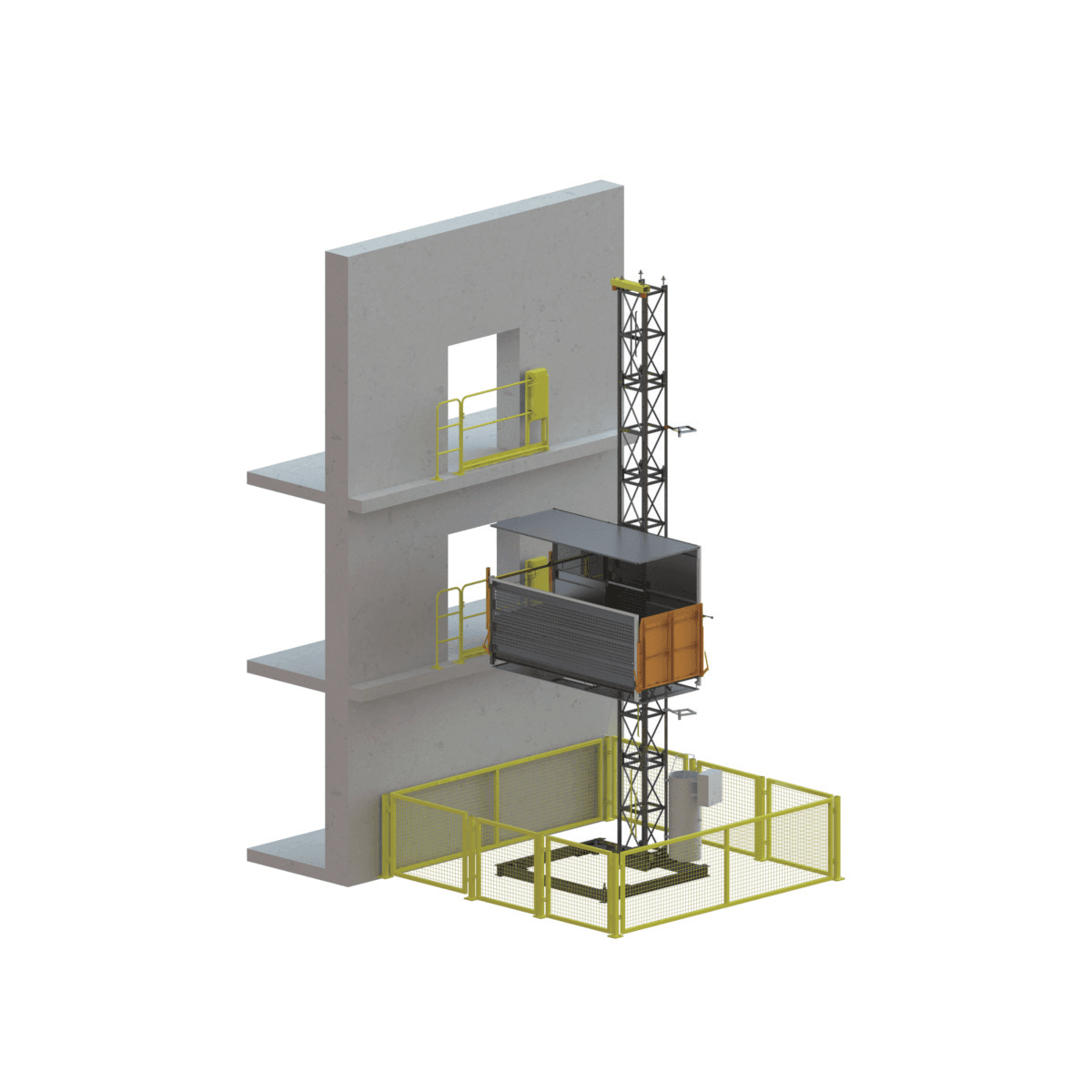

3S 1500H/HP Transport Platform The 3S 1500H/HP is a high-capacity transport platform for projects that need to elevate a full crew together with heavy materials. Its 3200×1400 mm deck carries up to 1500 kg or seven people, driven by a dual 2×7.5 kW unit for smooth, high-cycle travel to 100 m at 24 m/min for materials and 12 m/min for personnel. The dual-drive tandem frame spreads load evenly across the guide rollers for reduced wear and a longer service life. Features 1500 kg rated load / 7 persons Materials up to 24 m/min, persons up to 12 m/min Large 3200×1400 mm load-carrying platform Dual 2×7.5 kW drive on a tandem guide-roller frame C4 hot-dip galvanized mast sections Advantages Moves a whole crew and their materials in one lift Long deck accepts bulky and palletized loads Even pressure distribution extends guiding-system life Benefits Logistics throughput: handles peak shift changes and deliveries Efficiency: fewer trips to upper floors Reliability: dual drive with manual descent and overload protection Product Details Enhanced Structure Constructed from high-strength materials, the equipment guarantees durability and reliability, ensuring prolonged and stable operation even in challenging working conditions. The main load-bearing components, crafted from high-strength structural steel, prioritize safety and dependability. To enhance resilience, the mast sections undergo a hot-dip galvanizing surface treatment, achieving an anti-corrosion grade of C4. Guardrail Components The ground enclosure fence serves to isolate the safe area around the transportation platform, preventing accidents. Additionally, each landing floor features a slidable guardrail with an interlock system to prevent operators from falling, and make sure the platform can not move when the door is open. Operation Platform The operation platform ensures seamless functionality, while a drawbridge with guardrails is conveniently positioned on its back for installers to secure masts and rails during erection. The floor, composed of bent and perforated elements, offers both rigidity and anti-slip properties. Installing the loading ramp on either side, left or right, enhances the convenience of loading and unloading, which also features a control bar system with vertical or horizontal openings. To enhance versatility, the loading ramp can be substituted with a bi-foldable gate, facilitating easy loading with a fork-lift or when it is used for manned lifting. Drive System The single or dual drive unit operates on mast sections using a series of guide rollers mounted on a tandem frame, ensuring uniform pressure distribution and leading to decreased wear, smoother travel, and an extended lifespan for the entire guiding system. The dual motor with manual descending function, overload protection device, and fall arrest system are centrally located for efficient installation and streamlined operation. Additionally, the cable guiding tube on the rear side of the platform prevents the entire power system from being encumbered by lengthy cables. Guiding System The guiding system comprises guide rails, single guide rollers, and double guide rollers. The guide rail is interconnected through standard sections, where the rack is securely fastened. Buffers are positioned at the top and bottom of the standard section. The transport platform is linked to the guide rail via guide wheels, facilitating reciprocal movement along the rail to ensure the platform adheres to the designated trajectory. Mast Sections The mast sections are securely fastened to each other using 3-4 eyebolts, ensuring swift and safe assembly while eliminating the risk of loss. Simultaneously, the rack is affixed to the mast through screwing. The Mast Tie is attached to the mast sections using a double frame, enhancing the rigidity of the masts and providing a robust connection to the main building. Control Panel The electric control box is versatile, allowing placement on both sides of the platform. It consolidates all the necessary commands for platform use and safety system control. The panel features a key-switch, enabling functionality as either for manned or cargo transportation. Additionally, an LCD display on the control box monitors operational status and alarm information, which provides a clear overview of daily maintenance and fault alarms that enhances the safety of operations. Key Features Versatile Utility Seamlessly transitions between manned operations and cargo lifting, providing adaptability for diverse scenarios. Durable Performance Robust design ensures maximum endurance, making it a reliable choice for demanding construction and refurbishment projects. Simplicity and Reliability The straightforward design and components minimize the complexities in operation and maintenance. Unmatched Flexibility Completely reversible for both right and left orientations, offering unparalleled flexibility on-site. A three-sided entrance further enhances accessibility. Efficient Setup and Teardown Both triangular and quadrate mast designs are available and can be connected with bolts, enabling the quickest erection and dismantling. Enhanced Safety Integrated with safety features, including functions like fall arrest and overload protection device, ensuring a secure working environment.

Model 3S 1500H/HP Rated Load 1500 kg Rated Load (Persons) 7 Max. Speed (Materials) 24 m/min Max. Speed (Persons) 12 m/min Platform Dimensions 3200 × 1400 mm Maximum Height 100 m Power Supply 400V 3P+N+PE 50Hz Motor 2 × 7.5 kW Operating Temperature -20℃ ~ +55℃ Corrosion Resistance Class C4
