YT Series

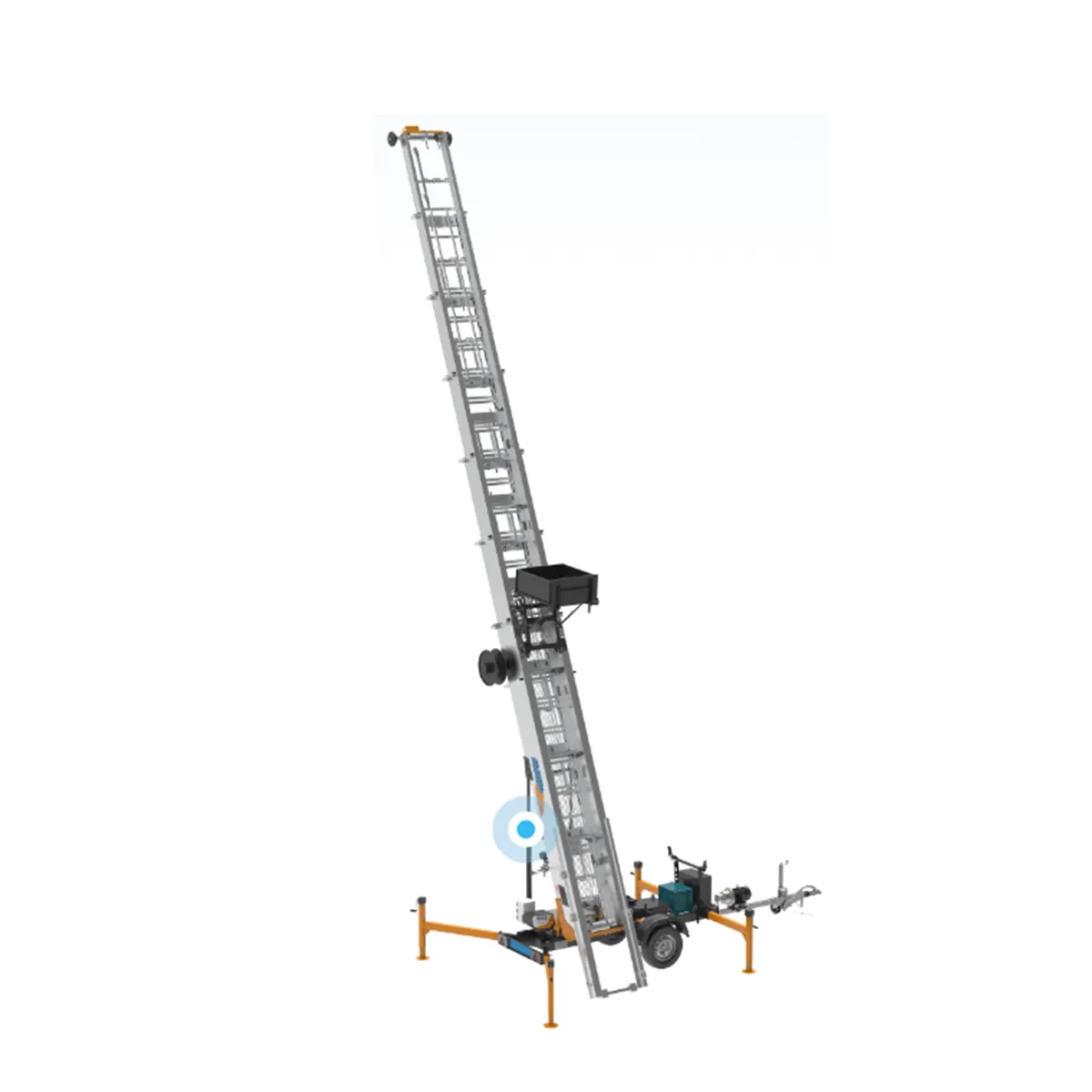

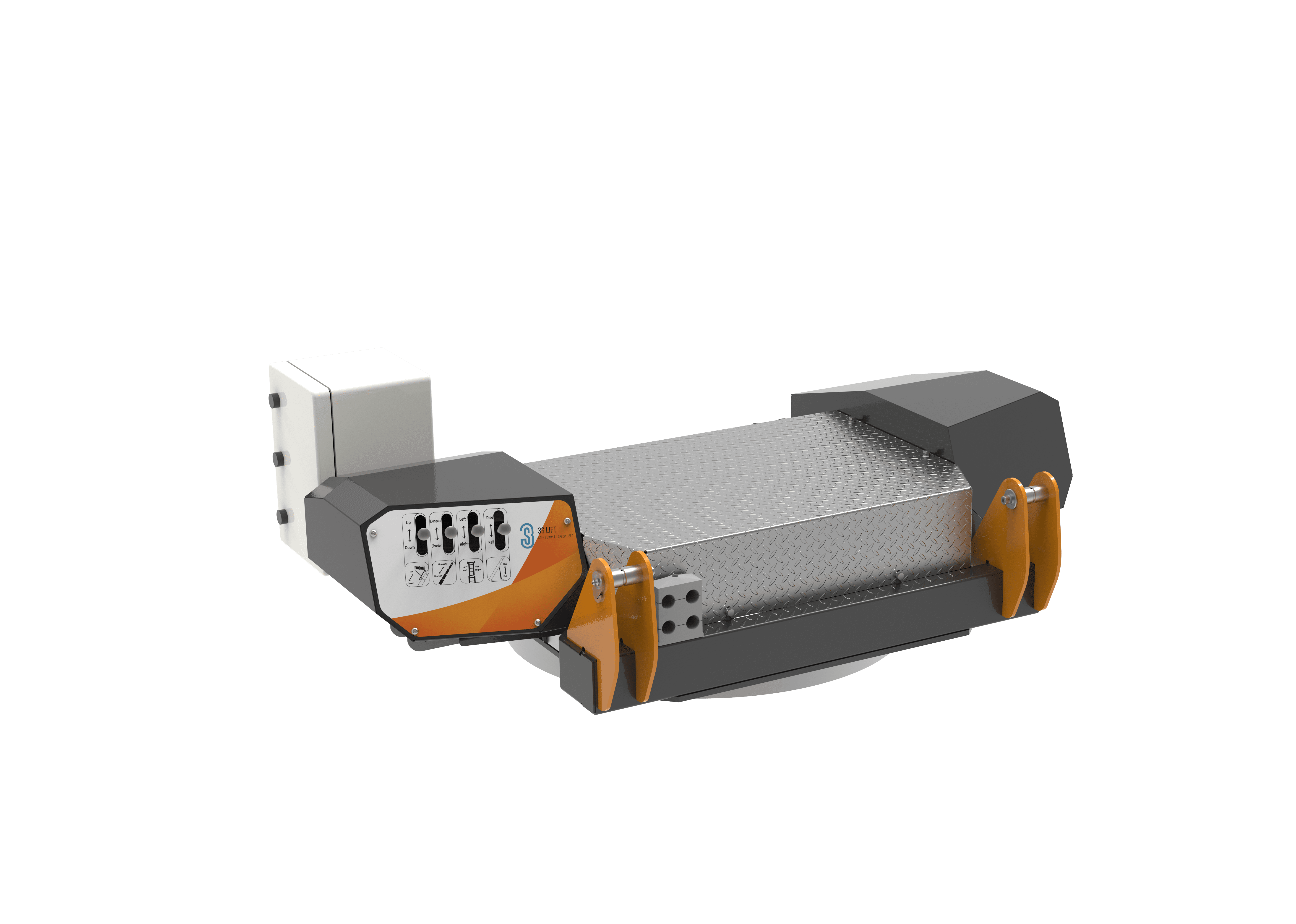

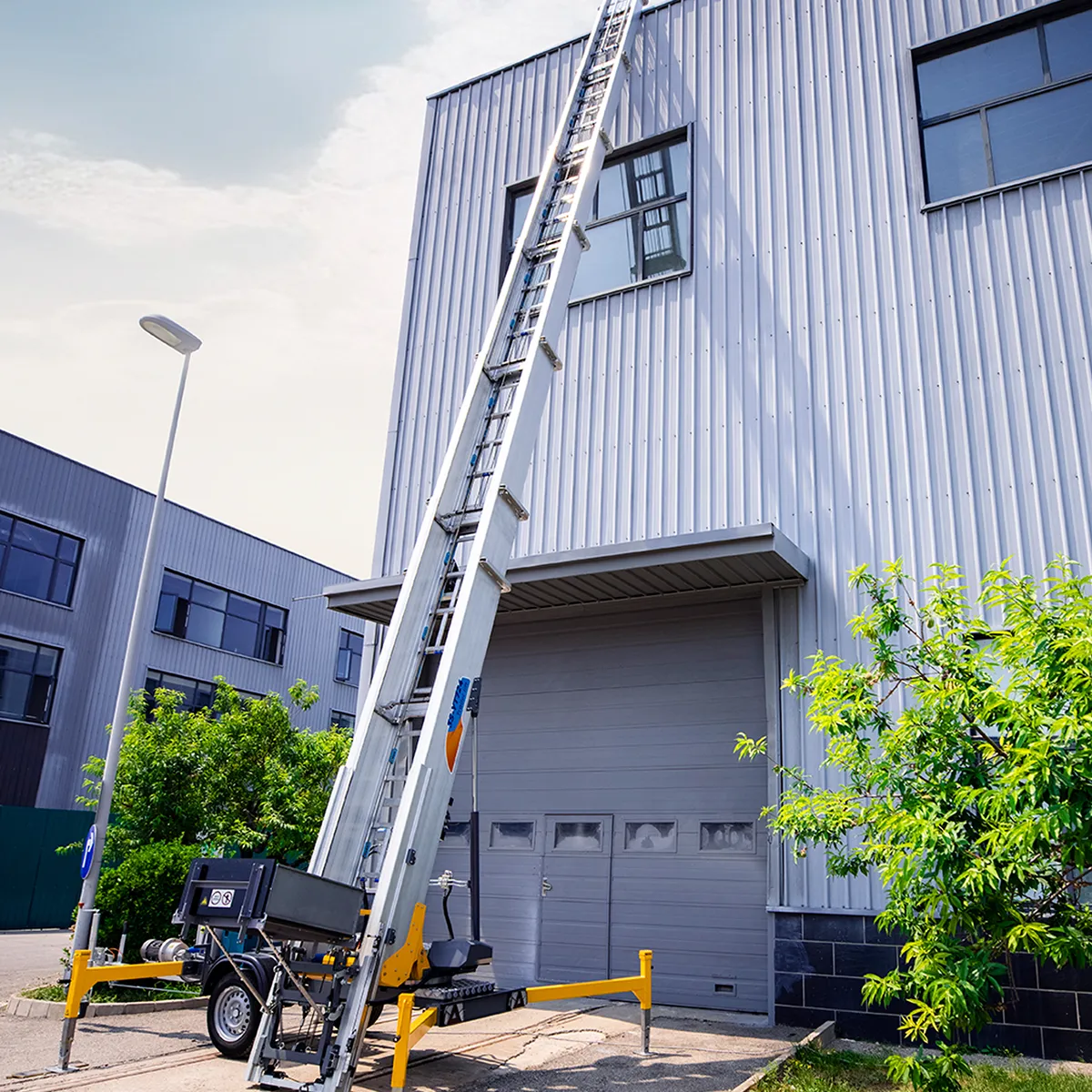

The YT Series Trailer Lifts (YT621 / YT732) provide rapid-response high-access capability for maintenance and construction applications. Engineered on a road-towable chassis, these units bridge the gap between portable ladders and heavy cranes. Featuring hydraulic outriggers for self-leveling stability and a variable height extension up to 32 meters, the YT series offers versatility for diverse sites ranging from glazing and painting to solar maintenance. The compact design allows for highway towing speeds up to 85km/h, ensuring high mobility between multiple job sites in a single shift. Features Road towable chassis Hydraulic system overflow protection Compact variable height Multi-purpose platform Advantages Can be towed by standard commercial vehicles Built-in safety valves prevent system over-pressurization Telescopic rail extension Adaptable platform configuration Benefits Fleet Flexibility: No requirement for low-loaders or specialized heavy transport System Integrity: Prevents catastrophic failure under load Precision Access: Adjustable to exact working heights Versatility: Suitable for materials (glazing) or personnel Product Details Turntable Mounted on the chassis by means of a slewing bearing, the turntable is capable of rotating the guide rail 360°. Luffing Cylinder Hinged between the guide rail and the turntable, the cylinders extend or retract, which enable the guide rail to adjust pitch angle. Guide Rail Members Eight-section aluminum alloy guide rail, layered and nested, extended due to the extension of steel wire ropes. Carriage Slides up and down along the guide rail under the suspension of a steel wire rope. Load Carrying Device Different forms of load carrying devices available to accommodate to different materials. Control System Equipped with safety devices and provides control of the system.

Model YT621 YT732 Max. Travel Speed 85 km/h 85 km/h Rated Load 230 kg 250 kg Max. Rail Length 21 m 32 m Operating Speed (Up/Down) 24/24 m/min 48/48 m/min Dead Weight 0.75 t 2.8 t Power Supply Electric Motor (230V, 1.5kW) Petrol Engine (13kW) Chassis Dimensions 5300 x 1400 mm 6540 x 1780 mm
