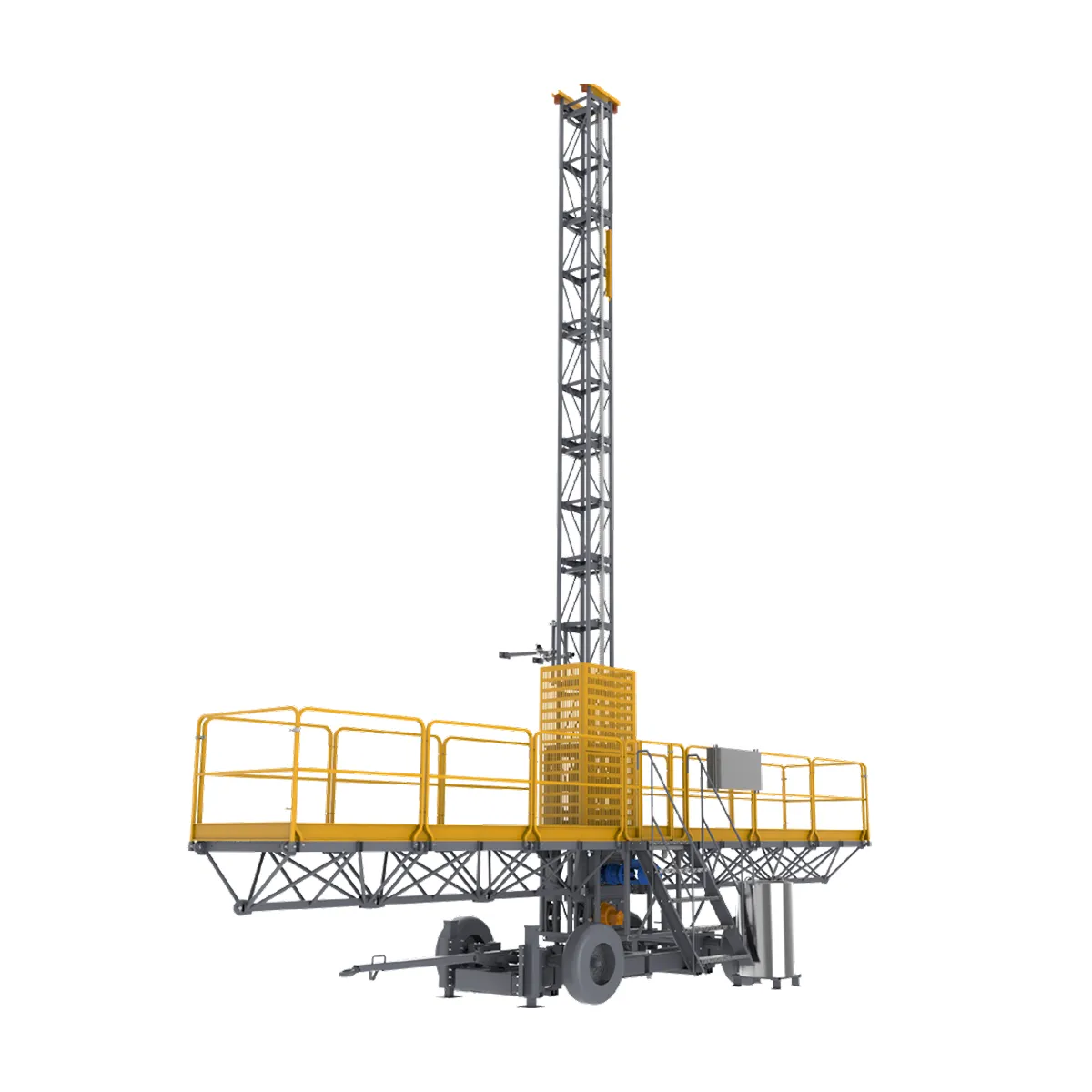

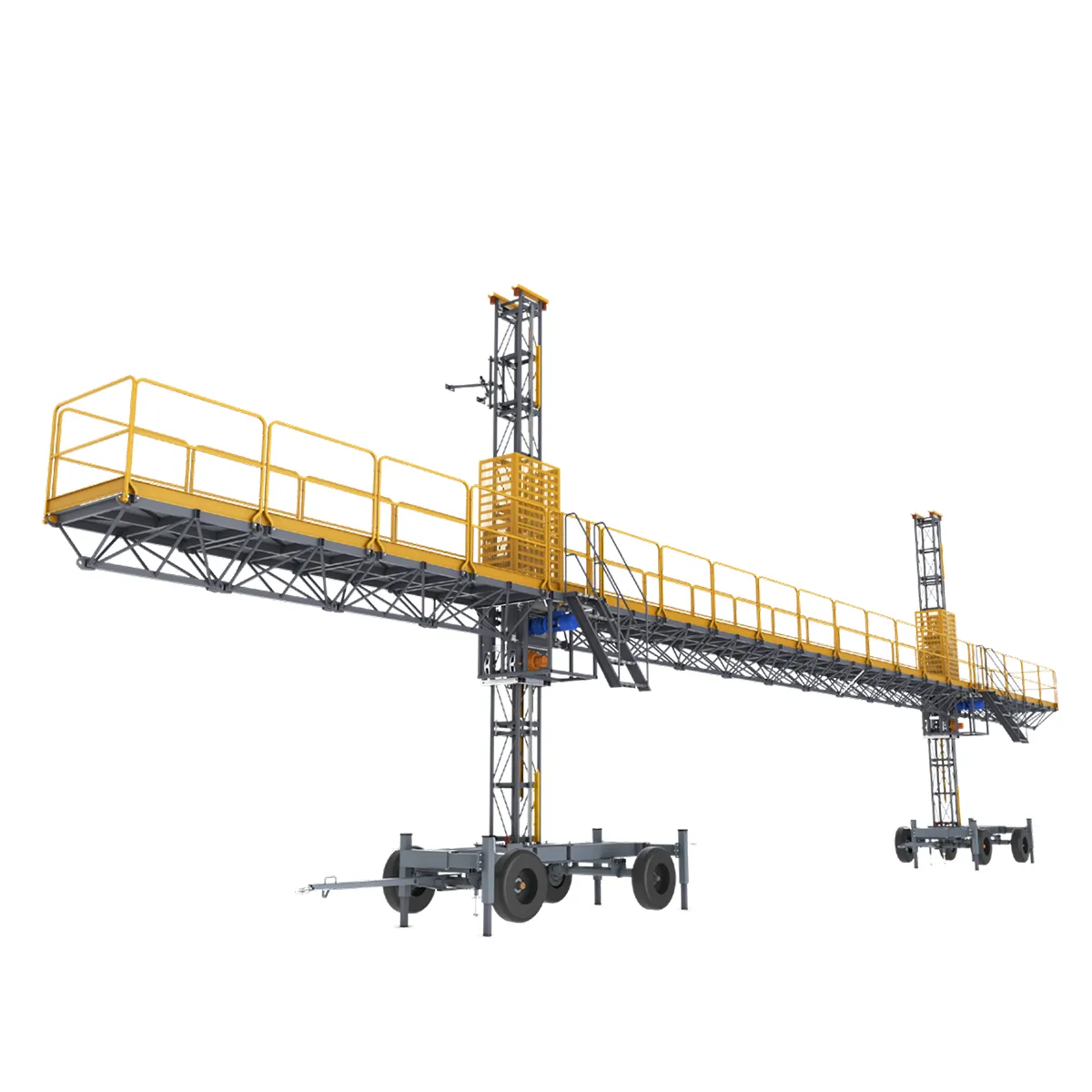

MC Series

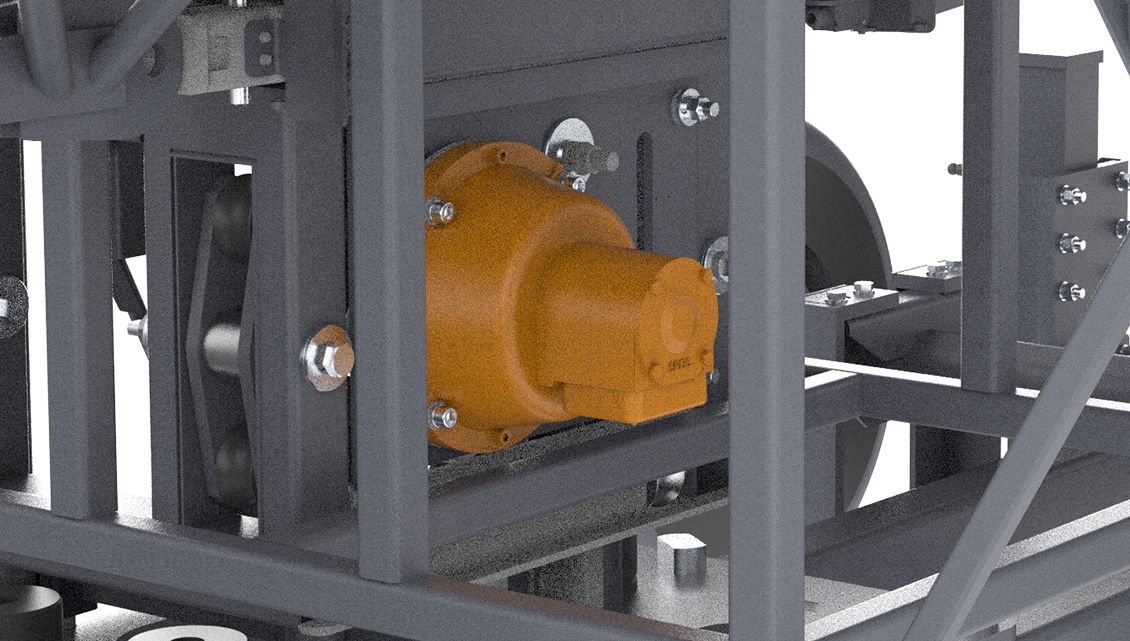

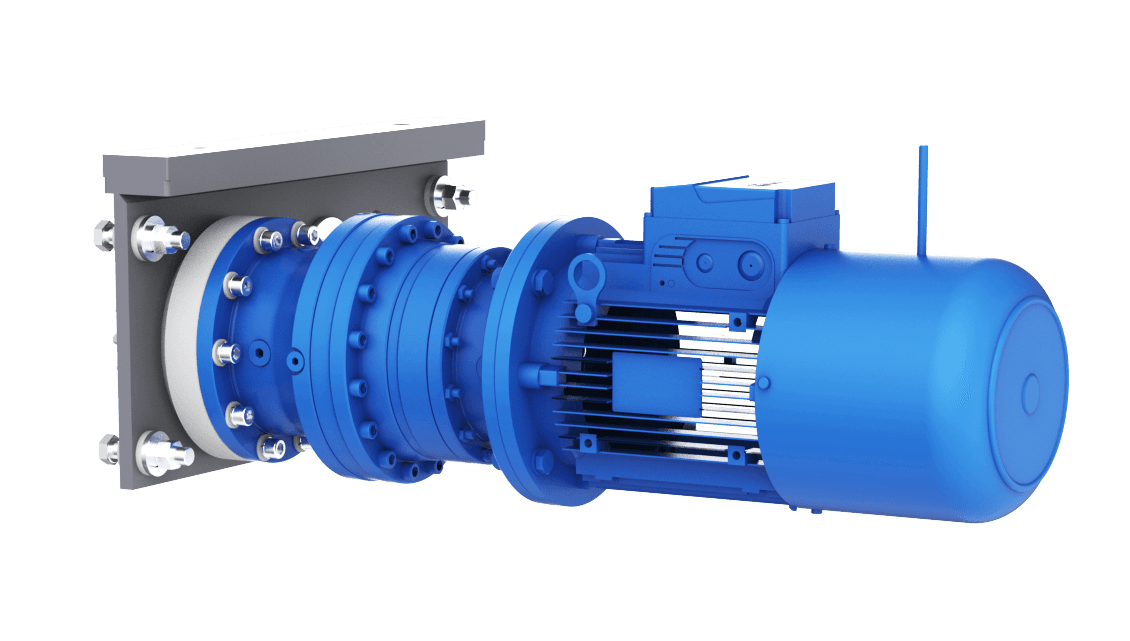

The MC Series Mast Climbing Work Platforms are heavy-duty access solutions engineered for large-scale façade construction and restoration. Offering single and twin-mast configurations, these platforms provide a stable, variable-width working deck that adapts to complex building geometries. Constructed with durable galvanized components and driven by reliable rack and pinion technology, the MC Series maximizes productivity by transporting personnel, tools, and heavy materials (up to 6000 kg) directly to the working height in a single efficiency cycle. Features Modular platform dimensions Galvanized parts Heavy load capacity (6000 kg) Advantages Adjustable length and width configurations High resistance to corrosion and weathering Transports brick, glass, and mortar alongside crew Benefits Project Adaptability: Conforms to building setbacks and façade irregularities Asset Longevity: Extends product lifespan in harsh environments Productivity: Reduces vertical travel frequency Product Details Drive Unit The gear motor propels the work platform to travel up or down along the mast. In the event of power loss, the manual descent mechanism allows the work platform to lower down to safety. Overload Detection Device When exceeding the rated load, the device activates an audible and visual alarm and disconnects the power supply. Overspeed Safety Device When reaching the actuating speed, the device operates, stopping the work platform motion and disconnecting the power supply. Rack Detection Switch To prevent the work platform from detaching the mast. When the switch is actuated, the power supply is disconnected, and may be reconnected by resetting the switch after manual descent. Work Platform Modular work platform, meeting diverse operational needs across various scenarios. Towable Chassis Solid tires, retractable outriggers for stable support, ensuring safe operations.

Model MC450-S MC650-S MC450-T MC650-T Platform Length (m) 4.2 - 13.2 3 - 15 6.2 - 33.2 10.3 - 34.4 Platform Width (m) 1.2 - 2.2 1.5 - 2.5 1.2 - 2.2 1.5 - 2.5 Rated Load (kg) 1500 - 2000 1500 - 4000 2000 - 4000 3000 - 6000 Speed (m/min) 0 - 12 Power Supply 380 V / 50 Hz Max. Lifting Height (m) 200
