T150

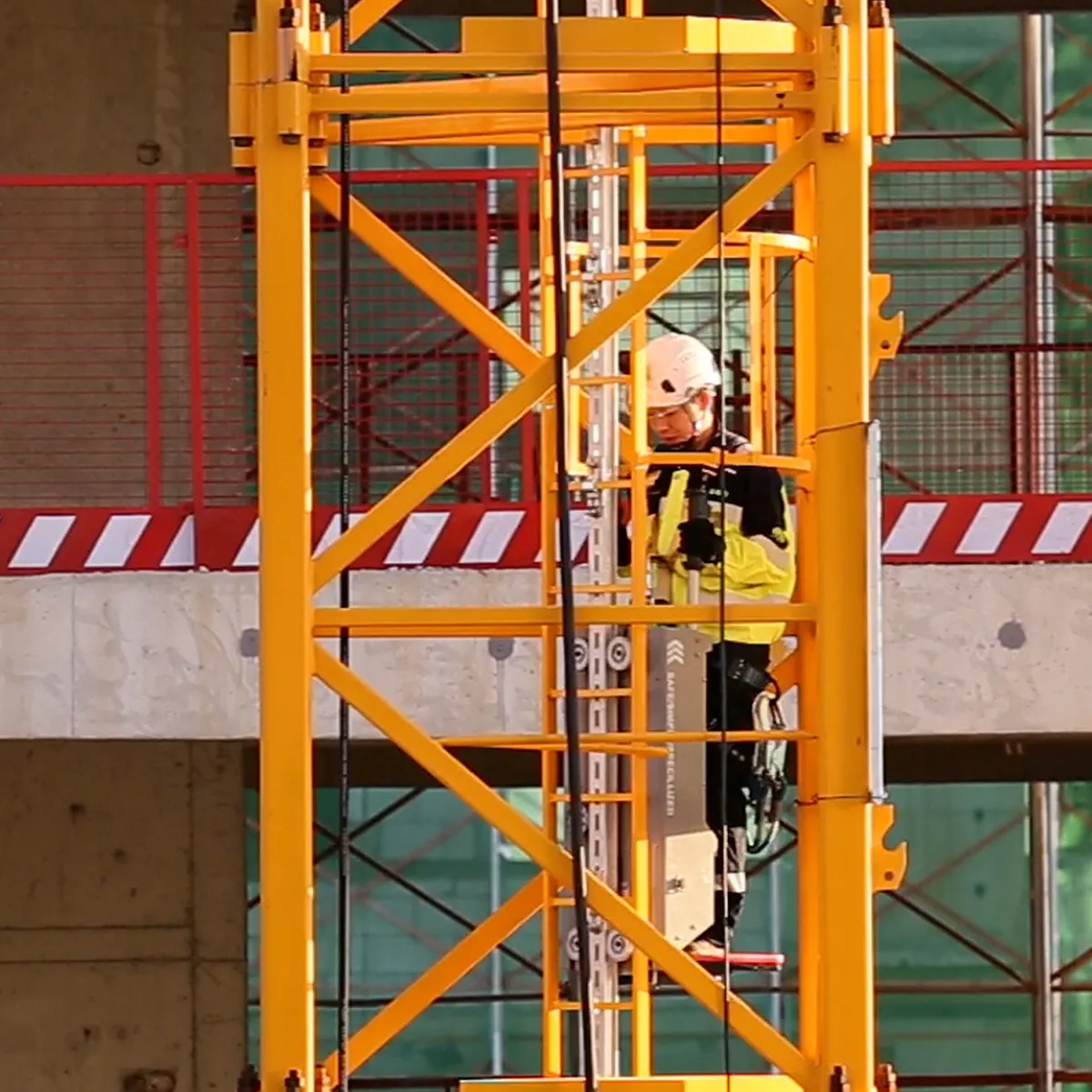

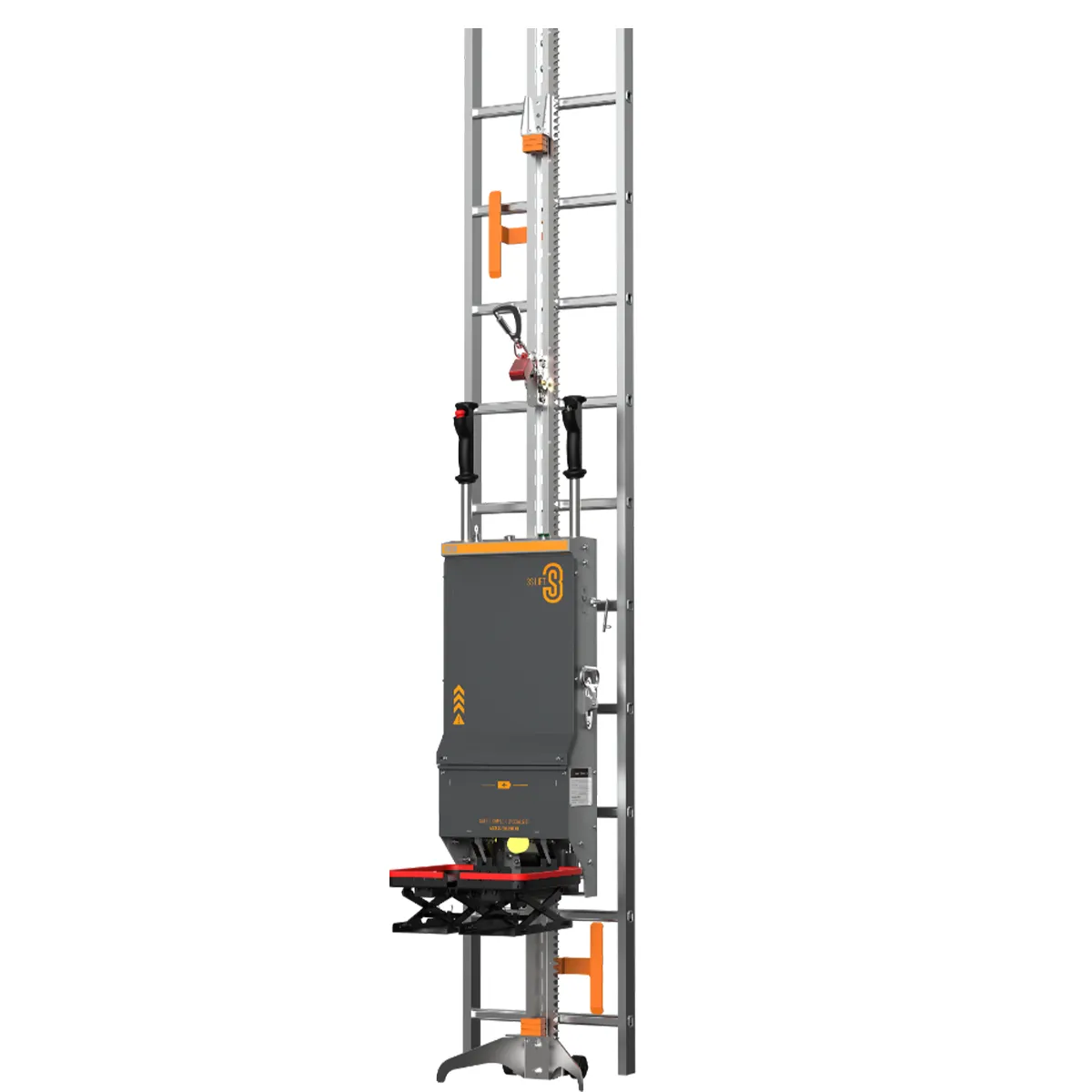

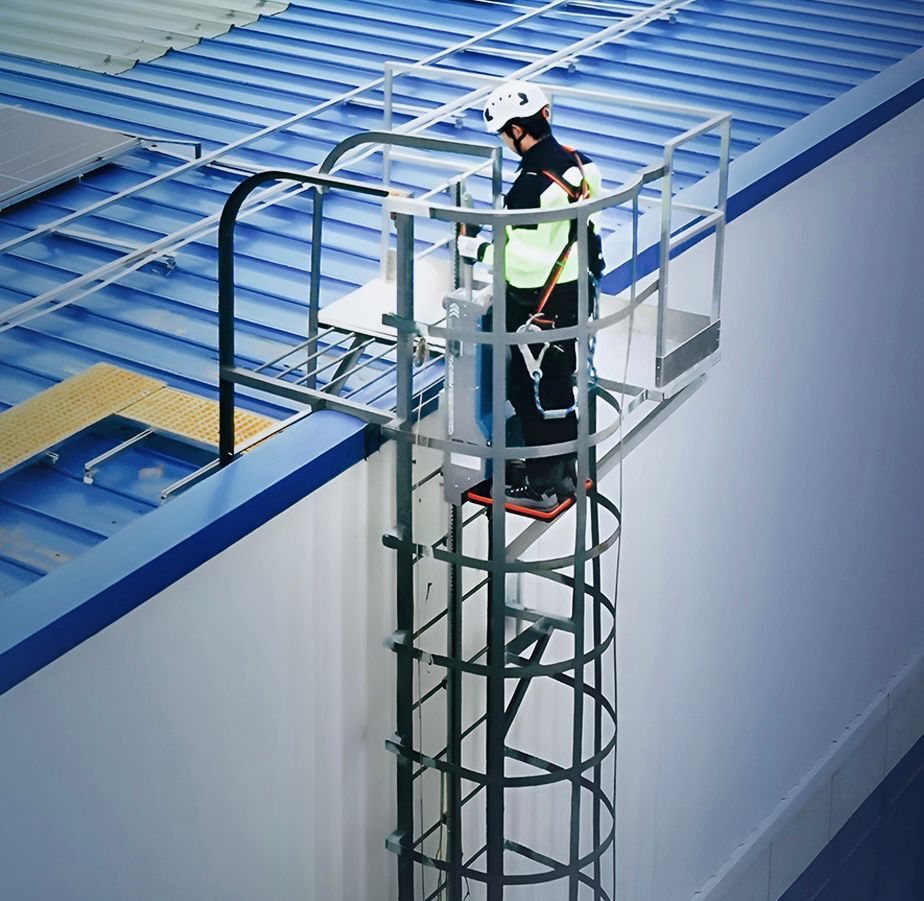

The T150 Tower Climber is a specialized access solution designed for Tower Cranes and Confined Space applications. It addresses the critical issue of operator fatigue and safety during long vertical ascents. By providing a battery-powered, rack-and-pinion assist, the T150 ensures that operators arrive at the cab or work station physically alert and ready for high-concentration tasks. Its compact, wireless design allows for retrofit installation on existing ladder systems, providing an immediate safety upgrade for high-altitude infrastructure. Features Compact structural design Lithium battery powered Multiple fall protection systems Wireless operation 3S rack & pinion Advantages Minimal obstruction on the ladder way Independent power source; no trailing cables Integrated safety brakes and overspeed protection Remote control capability Benefits Retrofit Compatibility: Fits inside existing tower crane mast sections/confined spaces Installation Simplicity: No complex electrical runs required up the tower Operator Safety: Guarantees safety even in total power failure Emergency Response: Can be used for unmanned material delivery or rescue Product Details Upper-End Stop with Buffer Two mechanical end stops with buffers are installed at the upper and lower ends of the guide rail, respectively. This can prevent the car from overrunning the running pathway in the event of switch failure. Operator Fall Arrester The Operator fall arrester is connected to the guide rail and full body harness. When accidents happen, fall arrester locks inside the guide rail immediately to prevent serious injury. Manual Descent Function In case of sudden power failure, the operator can operate the manual descent lever to descend the car safely and steadily. Car Fall Arrester The Car Fall Arrester is located on the lift’s car and runs inside the guide rail. It locks immediately in case of a fall, keeping the car in place and preventing it from falling. Overload Protection System Should an overload occur, the Tower Climber will sound an alarm, and the power will instantly be cut off, stopping the lift in place. The Climber will not start again until the overload is corrected. Lower-End Stop with Buffer Two mechanical end stops with buffers are installed at the upper and lower ends of the guide rail, respectively. This can prevent the car from overrunning the running pathway in the event of switch failure.

Model T150 Rated Load 150 kg (1 Person + Tools) Operational Range ≤ 1500 m (40 round trips on 40m tower) Max. Lifting Height 200 m Rated Speed 18 m/min (2 mins to reach the top of 40m) Battery Capacity 15.6 Ah IP Rating IP 65 Operational Temperature -20°C to +55°C Design Life 20 Years Standards Directive 2006/42, EN 1495
