SC Series

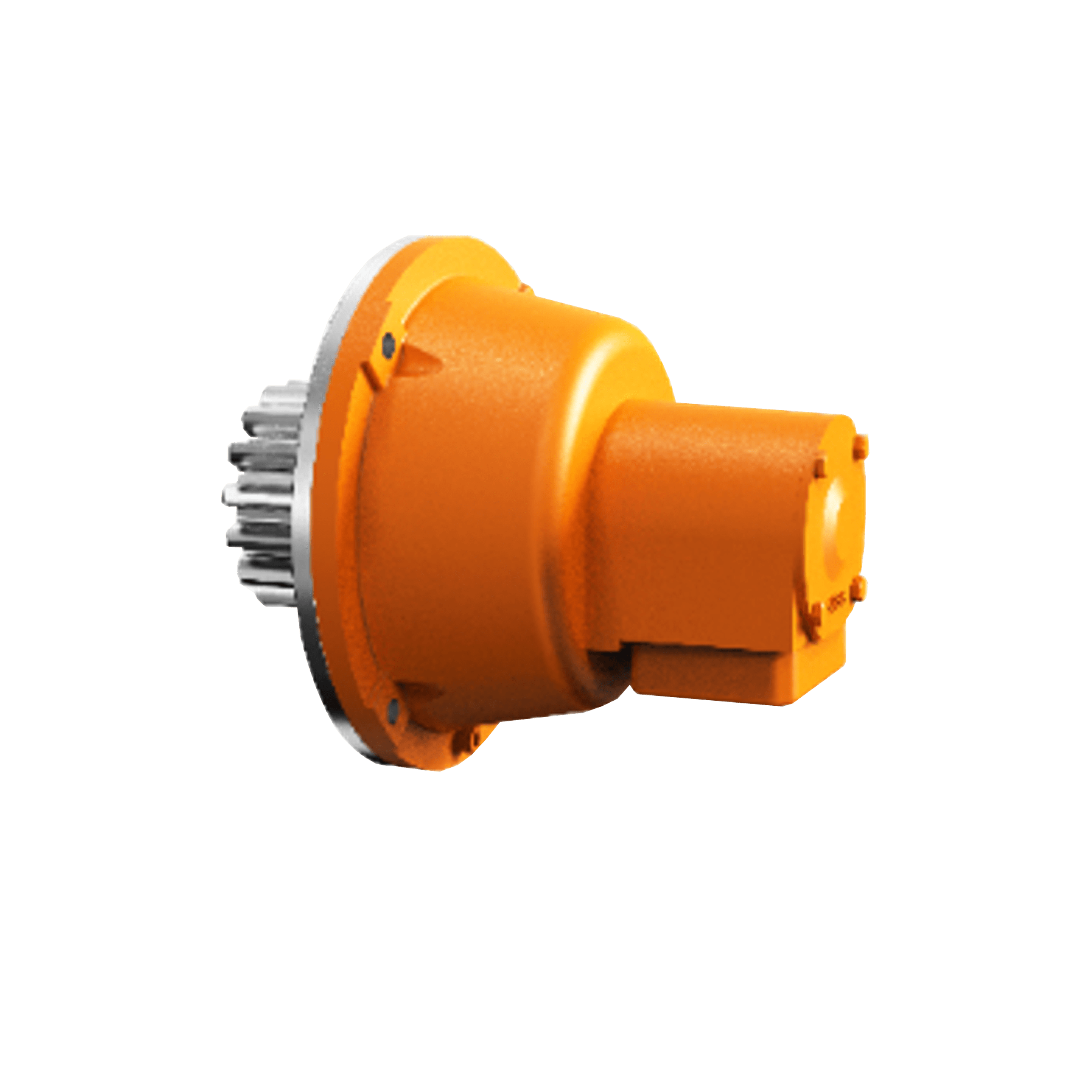

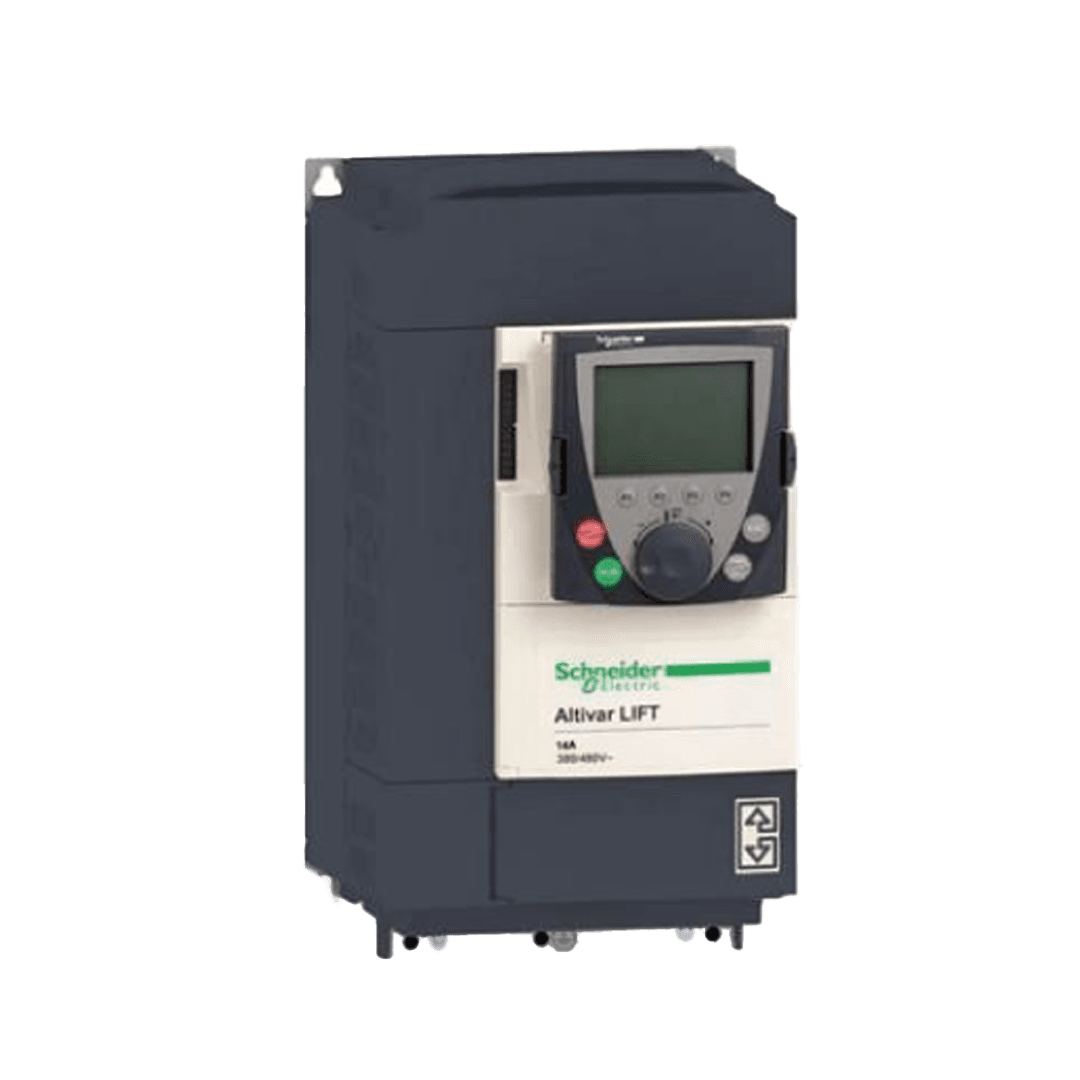

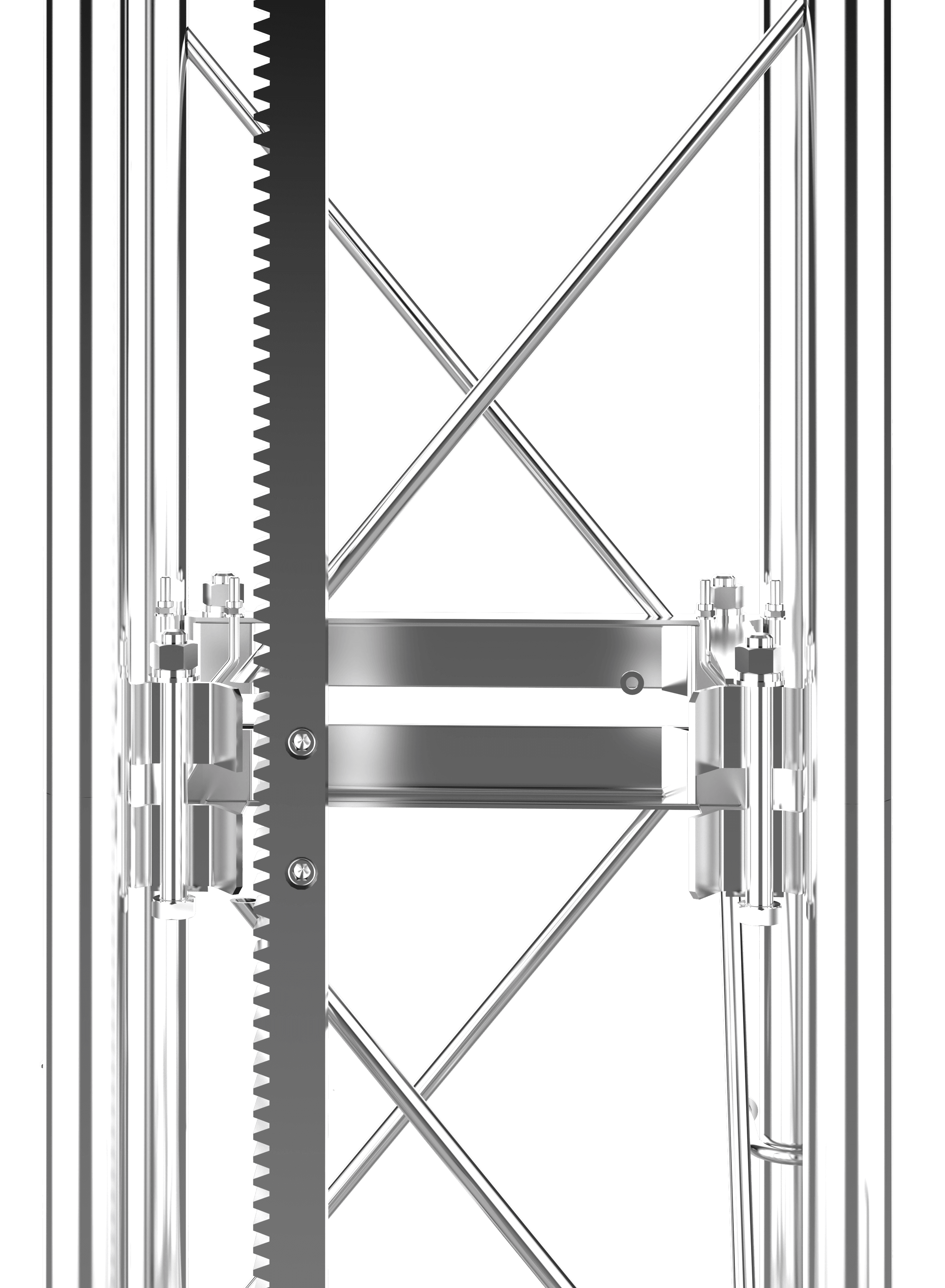

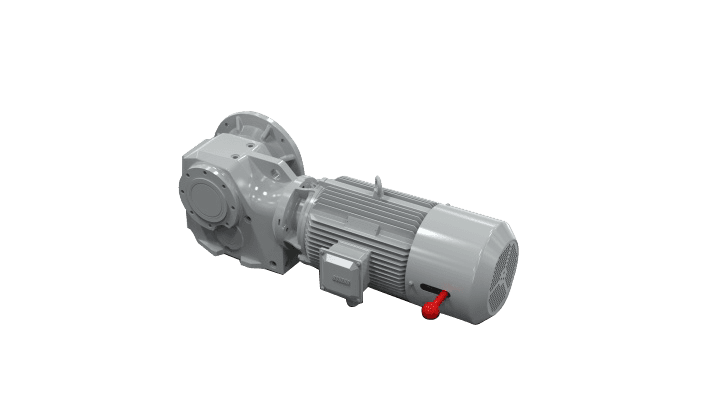

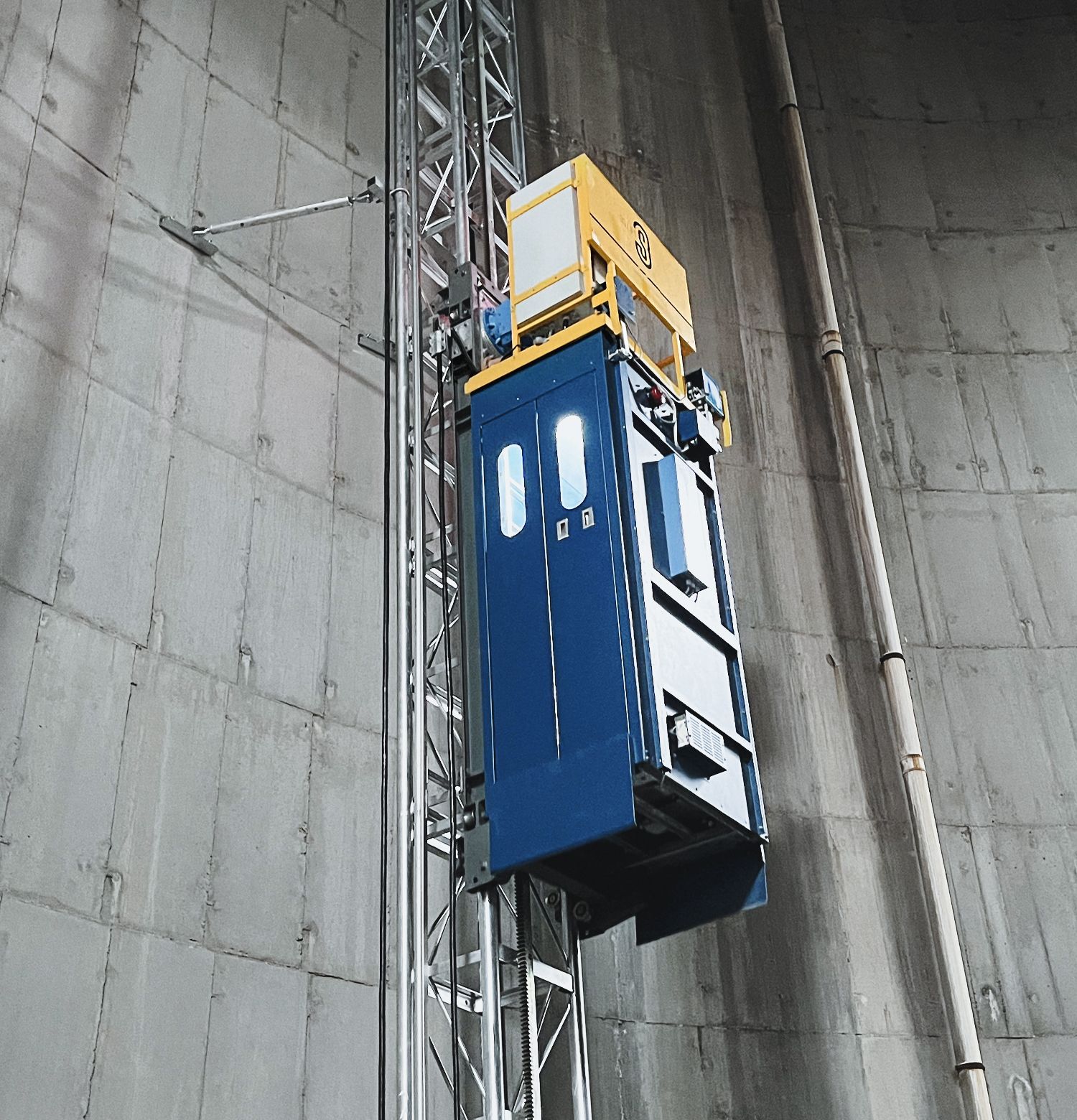

Industrial Elevator The SC Series Industrial Elevators are engineered for permanent and semi-permanent vertical access in harsh industrial environments. Utilizing the renowned 3S rack and pinion technology and VFC control, these elevators deliver smooth, reliable transport for personnel and cargo. Designed to withstand corrosive atmospheres and extreme conditions, the SC Series ensures maximum uptime for critical infrastructure such as power plants, cement factories, and bridge pylons. Features Variable frequency control (VFC) Robust galvanized design 3S rack & pinion Advantages Precise speed regulation and soft start/stop Industrial-grade corrosion protection Precision machined drive components Benefits Ride Quality: Protects sensitive industrial equipment during transport Durability: Withstands harsh chemical/marine environments Reliability: Proven technology with minimized downtime Product Details Overspeed Safety Device Mechanical safety protection device that prevents the cage from falling, controlled by non-electric, non-pneumatic, and non-manual methods. Gear Motor An integration of a gear box and a motor. The use of a gear box reduces the motor speed and increases the output torque, making it suitable for different operating conditions. Interlocking Device After the cage leaves the landing, the cage gate and all landing gates are locked by mechanical locks and cannot be opened normally. When the cage is moving, if the landing gate or cage gate is accidentally opened, the cage will stop motion immediately. Mast Section Structural frame that supports and guides the cage, counterweight (if applicable). Rack and Pinion Drive A forced drive system. Frequency Converter By precisely controlling the motor’s power supply frequency and voltage, it runs through the entire process of startup, operation, deceleration, and stop, ensuring the elevator operates stably and is safely controlled.

Model SC50 SC100 SC200 Rated Load 500 kg 1000 kg 2000 kg Speed 0-36 m/min 0-36 m/min 0-36 m/min Internal Cage Dimensions 1000x1000x2200 mm 1200x1000x2200 mm 3000x1400x2200 mm Max. Height 300 m 300 m 300 m Power Supply 380V / 50Hz 380V / 50Hz 380V / 50Hz
