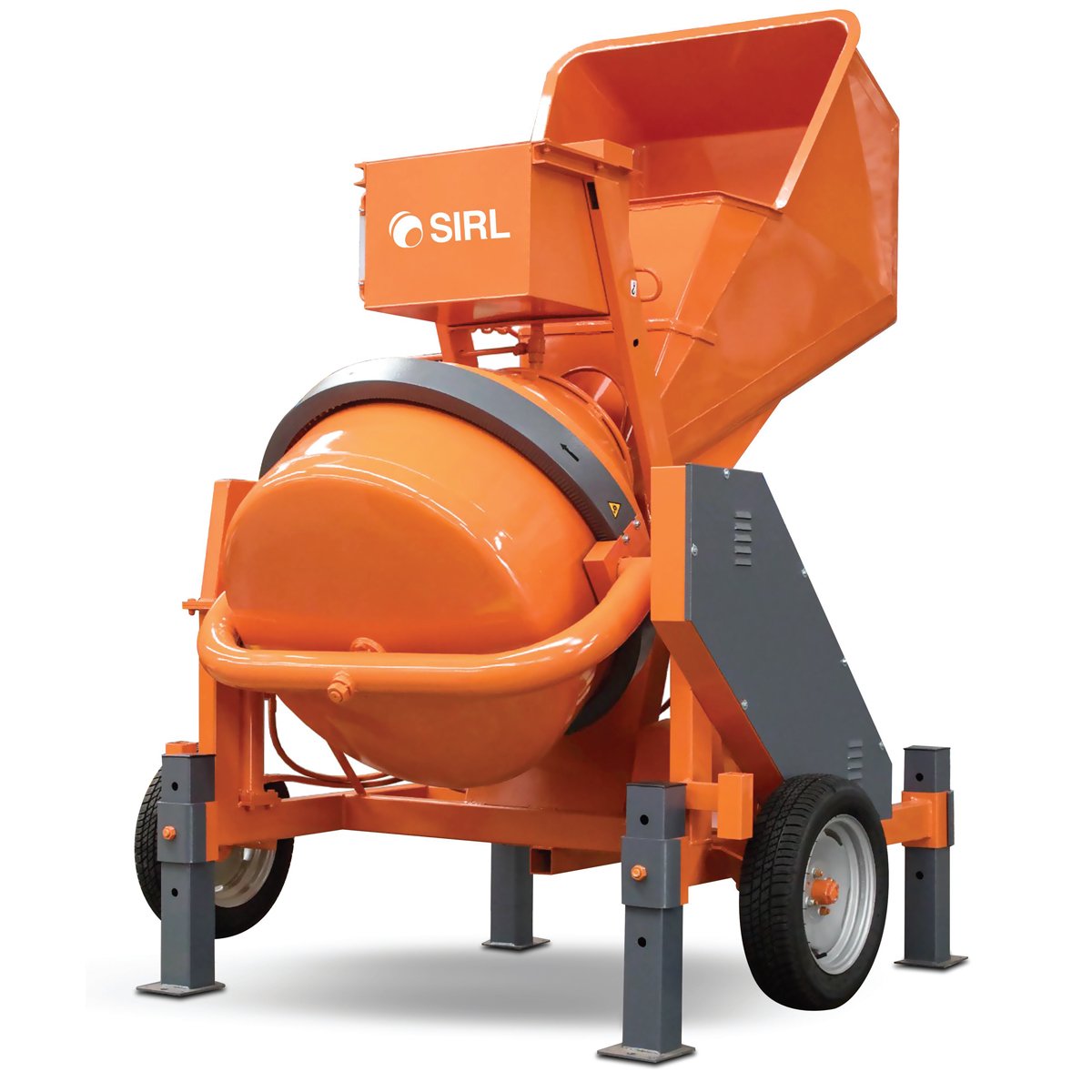

BP 280 N
BP 280 N
At the top of SIRL’s belt-driven drum mixer line, the BP 280 N is built for crews that effectively run a small batching operation on site. The reinforced structure and drum opening take constant heavy charging, three double mixing blades keep large batches uniform, and the cast iron gear ring plus Poly-V belt drive deliver the torque reliably. Forklift pockets make repositioning across a large UAE site straightforward, and the epoxy finish protects the steelwork through summers outdoors. Crews choose the 280-class when a smaller mixer would mean waiting on concrete instead of placing it. Al Wisam Trading holds the BP 280 N with its consumable parts, blades, belts and rings, at our Sharjah warehouse for quick supply across the Emirates.
Drum with Reinforced Opening and 3 Double Mixing Blades Cast Iron Gear Ring Handles for Discharge Lubrication Point Poly - V Iron and Trapezoidal Belt Forklift Pockets Epoxy Paint Finishing Reinforced Structure
| MODEL | BP280 N | ||
|---|---|---|---|
| Max. drum capacity (L)* | 260 | 260 | |
| Max. mixing capacity (L)* | 200 | 200 | |
| Dosage (kg) | 50 | 50 | |
| Drum rotation speed (rpm) | 26 | 26 | |
| Production per hour (m3) | 2.0 | 2.0 | |
| No. of double mixing blades | 3 | 3 | |
| Weight (kg) | 135.2 | 135.2 | |
| Drive unit type | Electric Petrol Diesel |
Electric Petrol Diesel |
|
| Dimensions (mm)* | Length | 1,665 | 1,665 |
| Width | 910 | 910 | |
| Height | 1,465 | 1,465 | |
| ELECTRIC MOTOR | Single Phase | Three Phase | |
| Voltage (V) | 220 / 240 | 380 / 400 | |
| Frequency (Hz) | 50 | 50 | |
| ENGINE | Honda | Lomberdini | |
| Model | GX 160 | 15 LD 225 | |
| Fuel | Petrol | Diesel | |
| Displacement (cm3) | 163 | 224 | |
| Power (kW / HP) | 3.5 / 4.8 | 3.5 / 4.8 | |
| Weight (kg) | 15.1 | 28.0 | |
Kindly contact us to get technical details for a product tailored for your project requirements.
