BBH

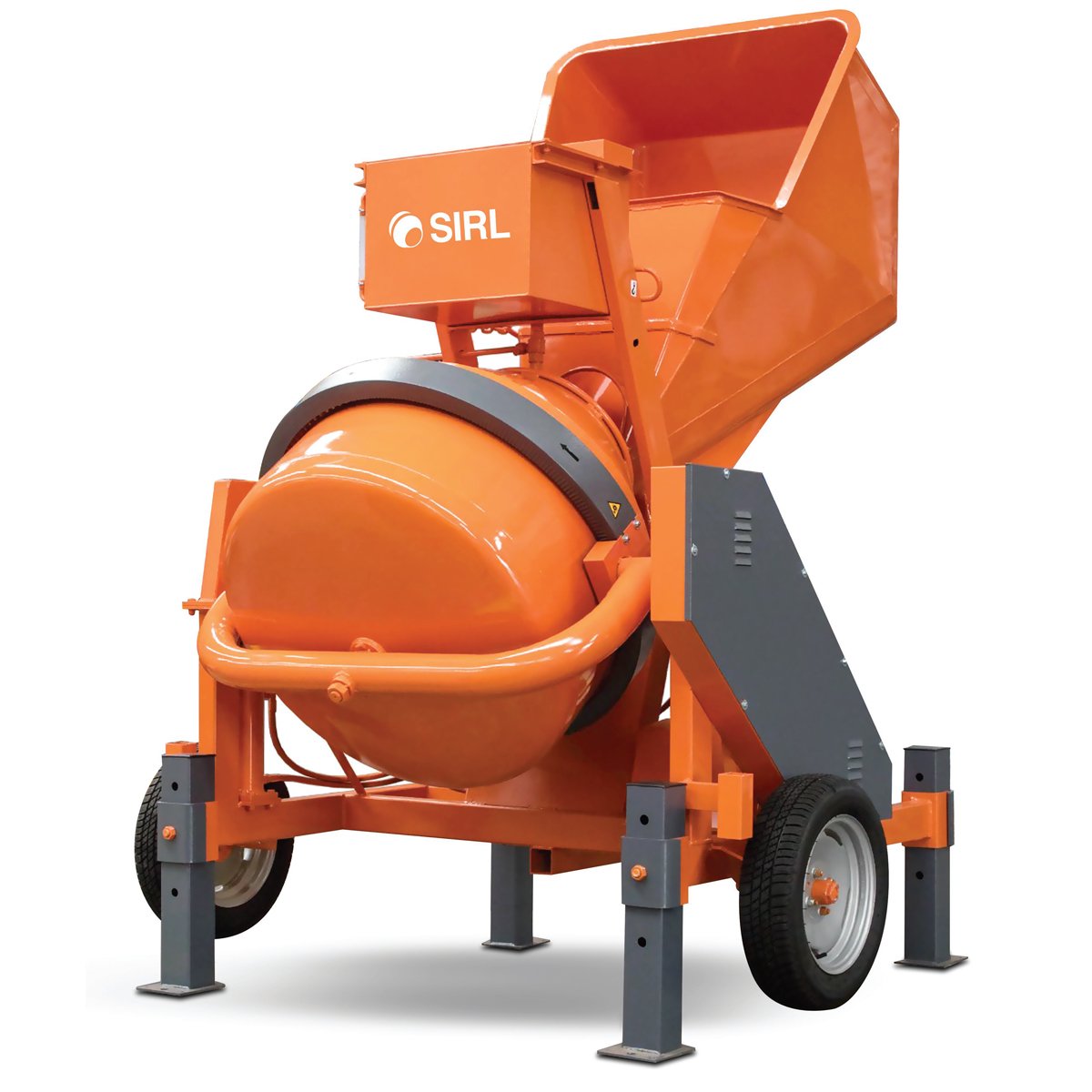

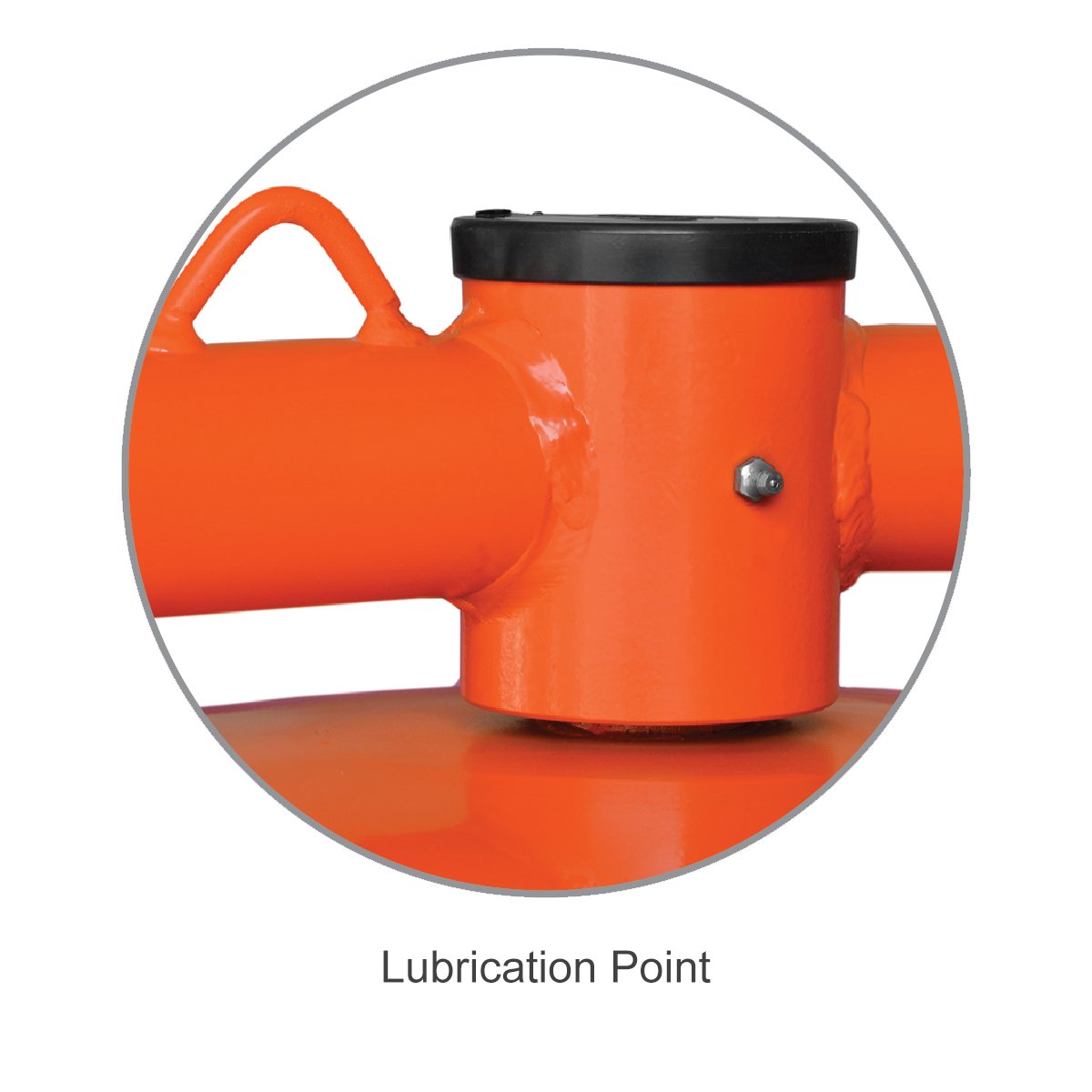

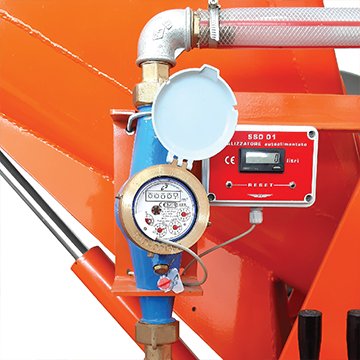

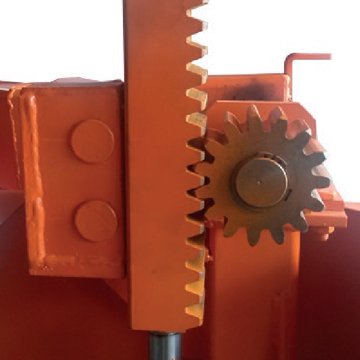

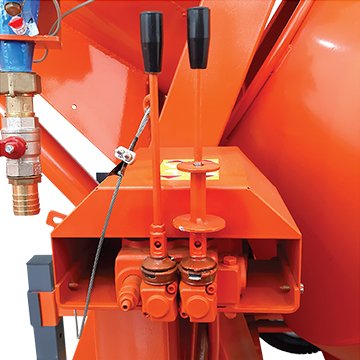

The SIRL BBH is the big hydraulic drum mixer of the range, built for sites that batch serious volumes of concrete on the spot. Hydraulic control tilts the reinforced drum and lifts the charging hopper, so one operator loads, mixes and discharges heavy batches without wrestling the machine. Three double mixing blades turn the material fast into a consistent mix, and the reinforced discharge gear ring is made for years of gritty duty. An epoxy paint finish and greasing points keep maintenance simple in UAE conditions. Where ready-mix deliveries are impractical, remote plots, phased pours, repair contracts, a hydraulic mixer of this class pays for itself quickly. Al Wisam Trading supplies the BBH with optional accessories and spare parts support from Sharjah. Drum with Reinforced Opening and 3 Double Mixing Blades Reinforced drum discharge gear ring Hydraulic control for drum tilting and in-charge hopper lifting Lubrication Point Epoxy Paint Finishing Accessories: Optional: Water Meter

MODEL BBH400 BBH500 Max. drum capacity (L) * 350 500 Max. mixing capacity (L) * 300 470 Water tank capacity (L) 60 60 Dosage (kg) 70 140 Drum rotation speed (rpm) 22 22 Production per hour (m 3 ) 8 12 Weight without drive unit (kg) 720 750 Drive unit type ElectricDiesel ElectricDiesel Dimensions (mm) * Length 1,800 2,000 Width 1,800 2,000 Height 2,500 2,700 ELECTRIC MOTOR Three Phase Three Phase Voltage (V) 380 / 400 380 / 400 Frequency (Hz) 50 50 ENGINE Lombardini Lombardini Model 15 LD 350 15 LD 350 Fuel Diesel Diesel Displacement (cm 3 ) 349 349 Power (kW / HP) 5.6 / 7.5 5.6 / 7.5 Weight (kg) 33 33
