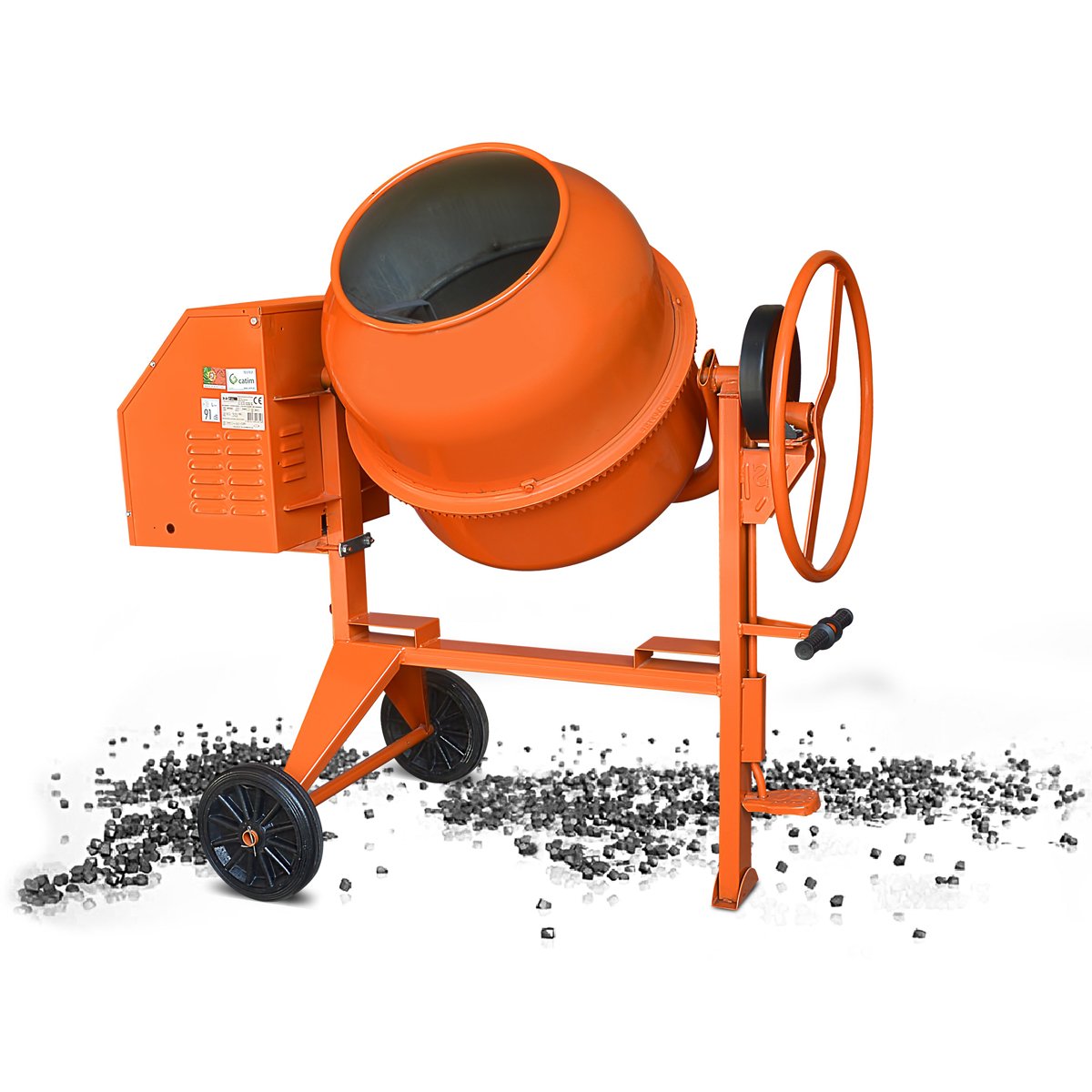

BP 200 D
Drum with Reinforced Opening and 3 Double Mixing Blades Lubrication Point Cast Iron Gear Ring Handles for Discharge Poly - V Iron and Trapezoidal Belt
MODEL BP200 D Max. drum capacity (L) * 190 190 Max. mixing capacity (L) * 170 170 Dosage (kg) 35 35 Drum rotation speed (rpm) 28 28 Production per hour (m 3 ) 1.4 1.4 No. of double mixing blades 2 2 Weight (kg) 96.2 96.2 Drive unit type Electric Petrol Electric Petrol Dimensions (mm) * Length 1,435 1,435 Width 760 760 Height 1,390 1,390 ELECTRIC MOTOR Single Phase Three Phase Voltage (V) 220 / 240 380 / 400 Frequency (Hz) 50 50 ENGINE Honda - Model GX 160 - Fuel Petrol - Displacement (cm 3 ) 163 - Power (kW / HP) 3.6 / 4.8 - Weight (kg) 15.1 -
Drum with Reinforced Opening and 3 Double Mixing Blades Lubrication Point Cast Iron Gear Ring Handles for Discharge Poly - V Iron and Trapezoidal Belt
| MODEL |
BP200 D |
| Max. drum capacity (L)* |
190 |
190 |
| Max. mixing capacity (L)* |
170 |
170 |
| Dosage (kg) |
35 |
35 |
| Drum rotation speed (rpm) |
28 |
28 |
| Production per hour (m3) |
1.4 |
1.4 |
| No. of double mixing blades |
2 |
2 |
| Weight (kg) |
96.2 |
96.2 |
| Drive unit type |
Electric
Petrol |
Electric
Petrol |
| Dimensions (mm)* |
Length |
1,435 |
1,435 |
| Width |
760 |
760 |
| Height |
1,390 |
1,390 |
| ELECTRIC MOTOR |
Single Phase |
Three Phase |
| Voltage (V) |
220 / 240 |
380 / 400 |
| Frequency (Hz) |
50 |
50 |
| ENGINE |
Honda |
- |
| Model |
GX 160 |
- |
| Fuel |
Petrol |
- |
| Displacement (cm3) |
163 |
- |
| Power (kW / HP) |
3.6 / 4.8 |
- |
| Weight (kg) |
15.1 |
- |
Kindly contact us to get technical details for a product tailored for your project requirements.
Contact UsDownload More Details.
Full datasheet with specifications, dimensions, and performance figures.
Data Sheet
