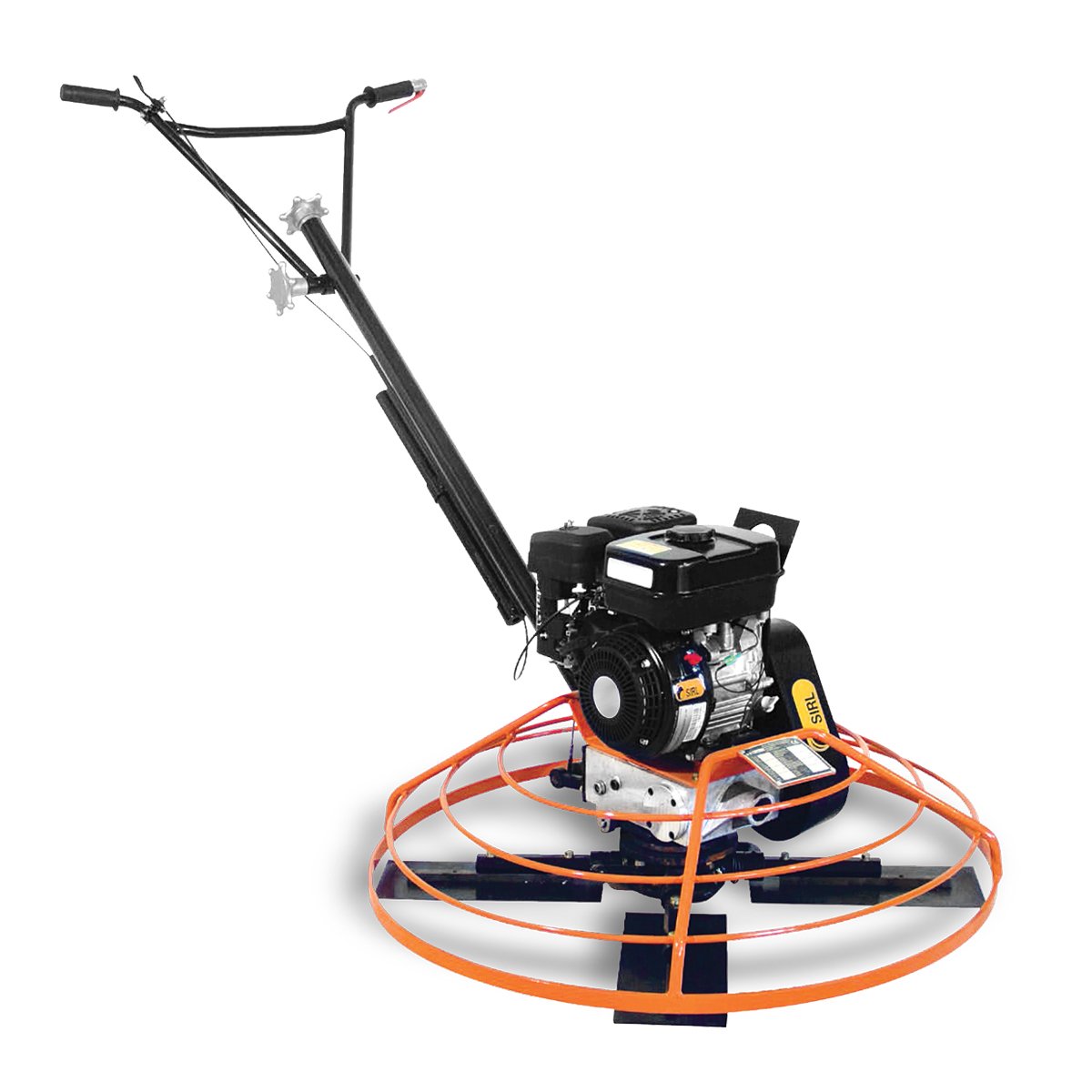

SH 90

The SIRL SH90 Power Trowel is a walk-behind concrete finishing machine, often petrol-powered, used to smooth and harden concrete surfaces for a professional finish, featuring rotating blades and adjustable height/blade angles for efficient operation on floors, patios, and larger areas, known for its robust build and performance in concrete work. Key Features & Purpose: Concrete Finishing: It's a specialized tool for the final stage of concrete placement, creating a dense, smooth, and level surface. Engine Options: Available with petrol engine Honda GX160. Adjustable Blades: Features adjustable blade positions and height for precise control over the finish and working conditions. Robust Design: Built with strong components like cast iron spider assemblies and precision arms for durability and consistent results. Operator Control: Direction and movement are controlled by slight lifts or pushes on the handles, similar to a floor buffer. How it Works: Rotation: Rotating blades spin across the hardening concrete. Smoothing & Compaction: This action smooths the surface and forces excess moisture to the top, increasing density and reducing cracks. Direction: Operators guide the machine by tilting the handles up (left) or down (right) to control its path. Benefits: Efficiency: Covers large areas much faster than manual troweling. Quality Finish: Produces a uniform, professional finish. Versatility: Suitable for various concrete projects, from large floors to smaller areas where maneuverability is needed. Accessories: Included: Trowel Blades Optional: Trowel Pan Finishing Blades

MODEL SH90 Total diameter (mm) 910 Blades size (mm) Length 350 Width 150 Weight (kg) 78 Dimension (mm) * Length 1,020 Width 1,020 Height 1,130 ENGINE Honda Model GX 160 Fuel Petrol Displacement (cm 3 ) 163 Power (kW / HP) 3.6 / 4.8 Weight (kg) 15.1
