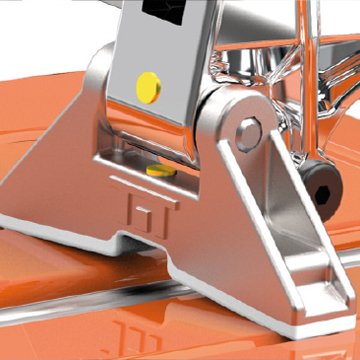

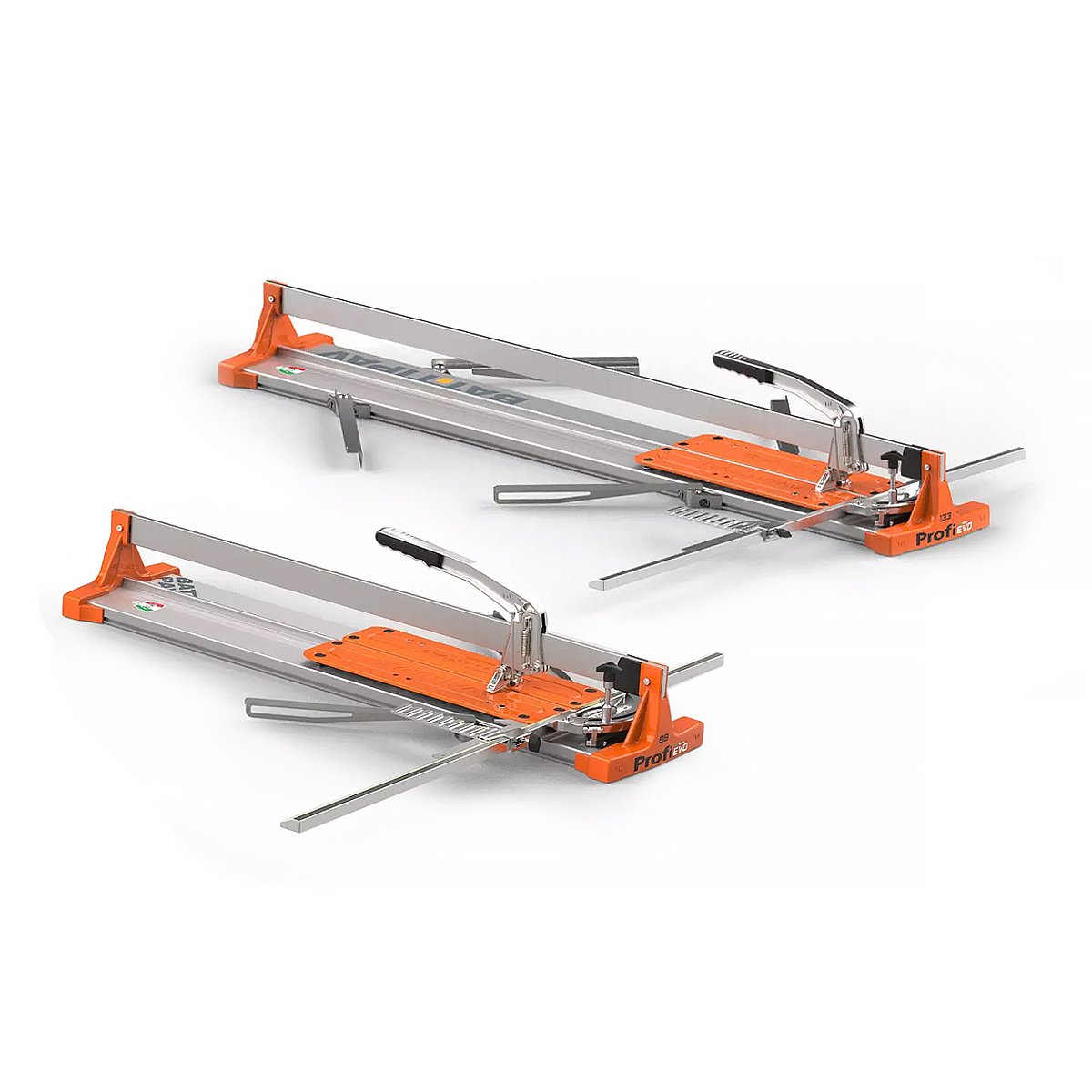

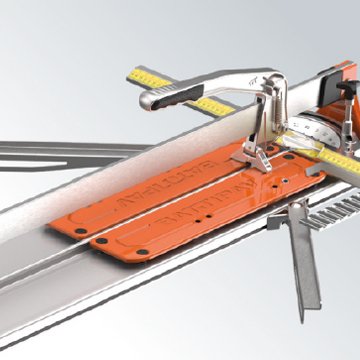

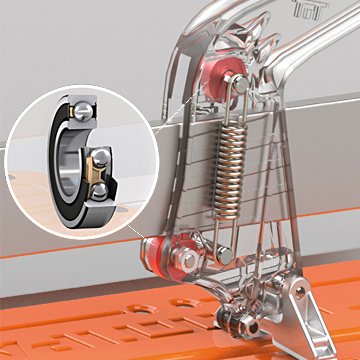

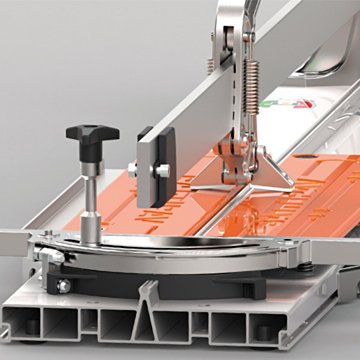

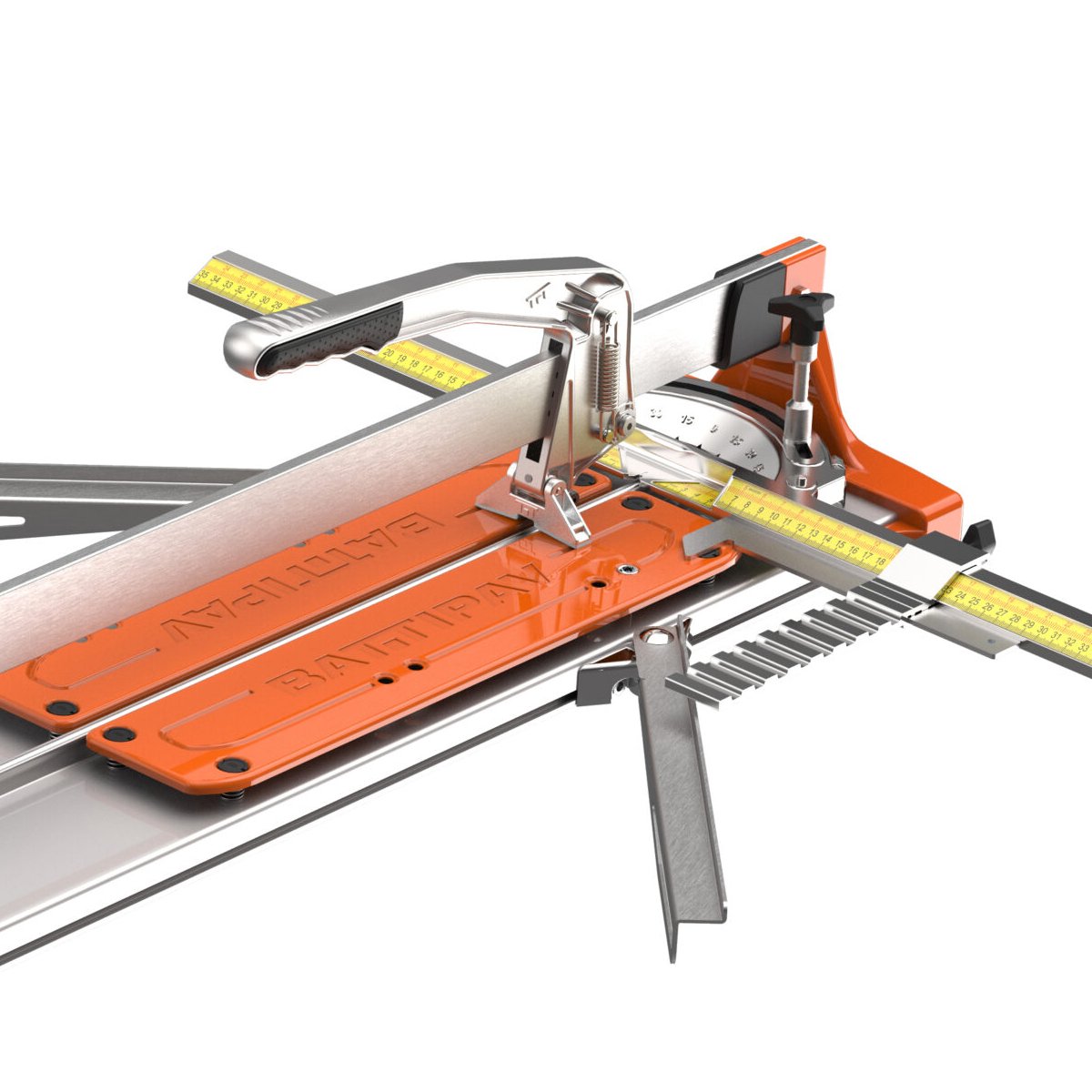

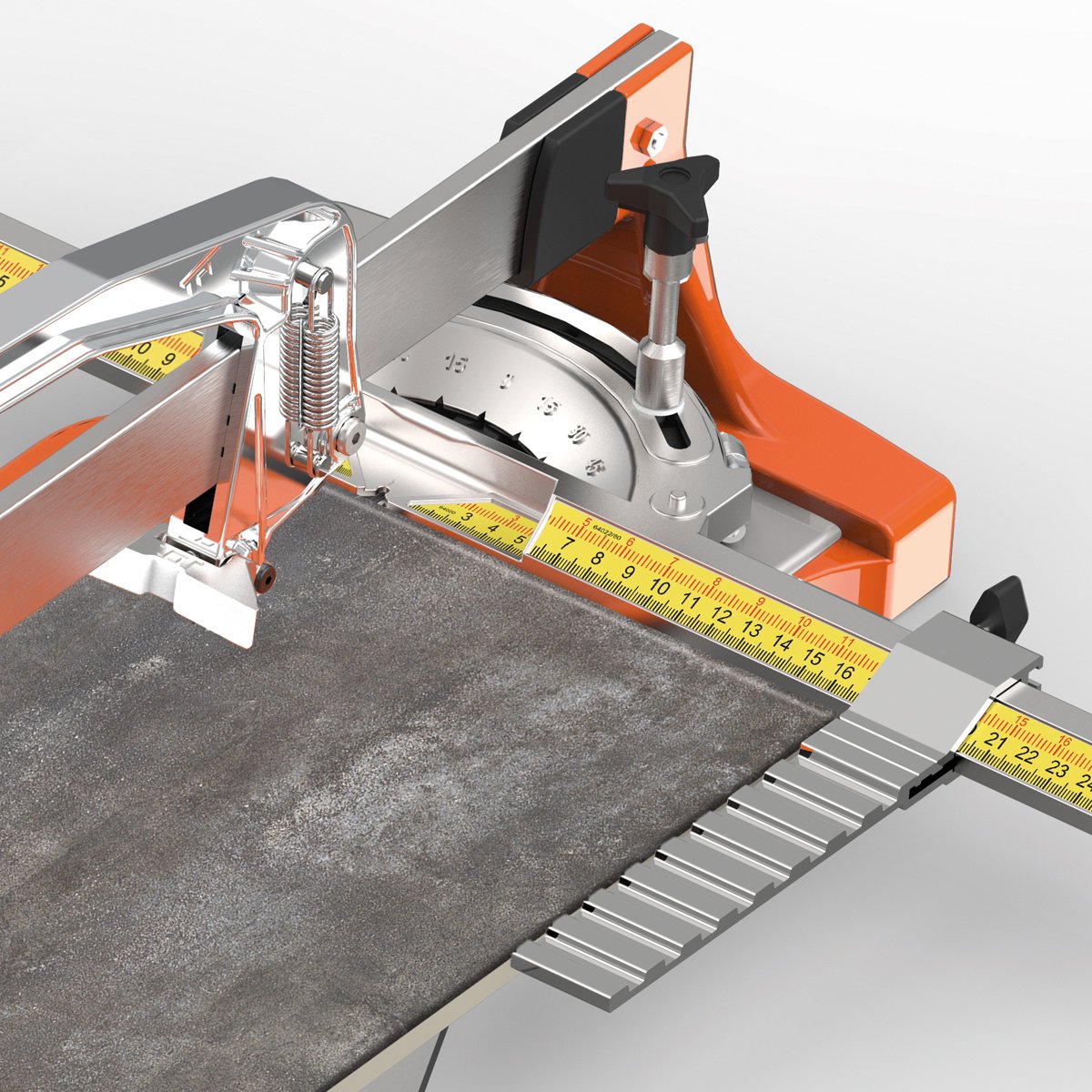

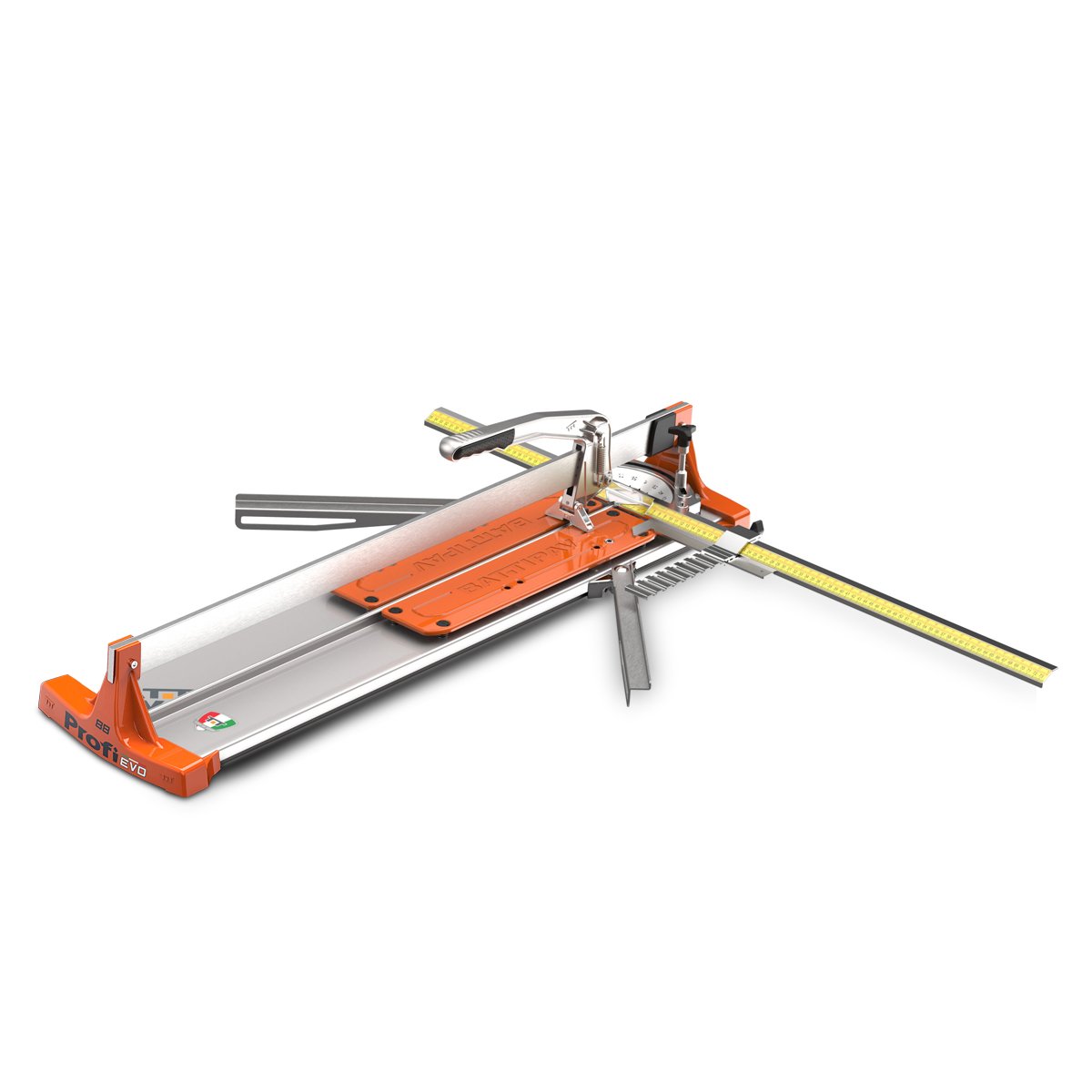

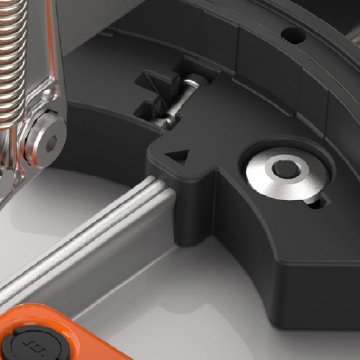

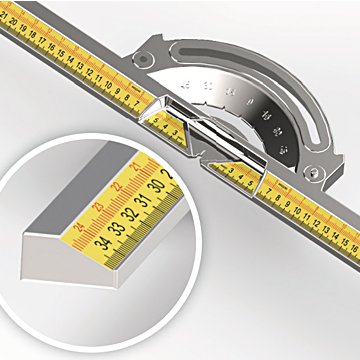

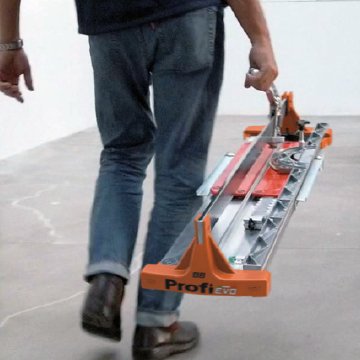

Super professional tile cutter "TO PUSH" for diagonal and straight cuts on single-double fired ceramic and porcelain stoneware tiles. Carriage in aluminum with two adjustable ball-bearings for a perfect sliding and top precision. Goniometric square with direct reading of the measure for straight and diagonal cuts. Quick Reading The new designed goniometric square allows a perfect reading of the measurement for straight cut (black lower scale) as well as diagonal cut (red upper scale). Aluminum magnetic foot The breaking foot is in aluminum with antis-scratch rubber and provided with a magnet. The scoring and the breaking is quicker and comfortable: only one operation. Carriage Carriage provided with two adjustable ball-bearings for a perfect sliding and top precision. Side extensions A new design of the lateral supports ensures great stability when cutting large formats. Particularly long extension make the cut comfortable and safe. Goniometric square Innovative design, stronger and more precise. The bar is inclined for a perfect reading of the measurement. Transport Very easy to carry with all the parts closed, to reduce the encumbrance. Structure Aluminium draw-plate to get the maximum of rigidity and lightness at the same time.
Accessories:
Included:
Extra Spare Wheel
| MODEL | Profi evo 133 | Profi evo 88 |
|---|---|---|
| Cutting tool dimensions (mm) | 15 x 6 x 1.5 | 15 x 6 x 1.5 |
| Max. straight cutting length (mm) | 1330 | 880 |
| Max. cutting depth for straight cut (mm) | 5 - 15 | 5 - 15 |
| Max. size tile for diagonal cutting (mm) | 940 x 940 | 620 x 620 |
| Net weight (kg) | 17.5 | 13.0 |
| Cutting method | Push to cut | Push to cut |
Kindly contact us to get technical details for a product tailored for your project requirements.
