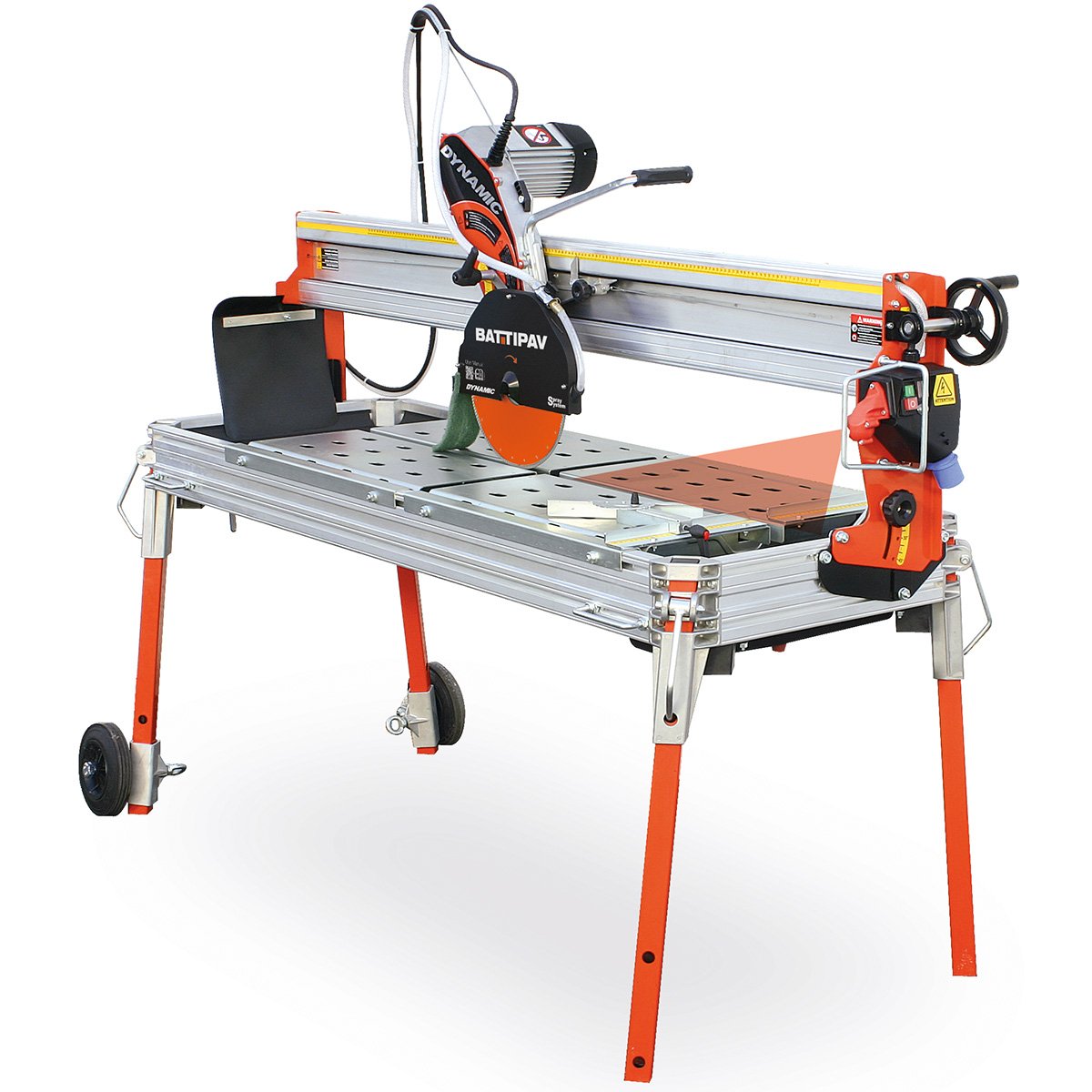

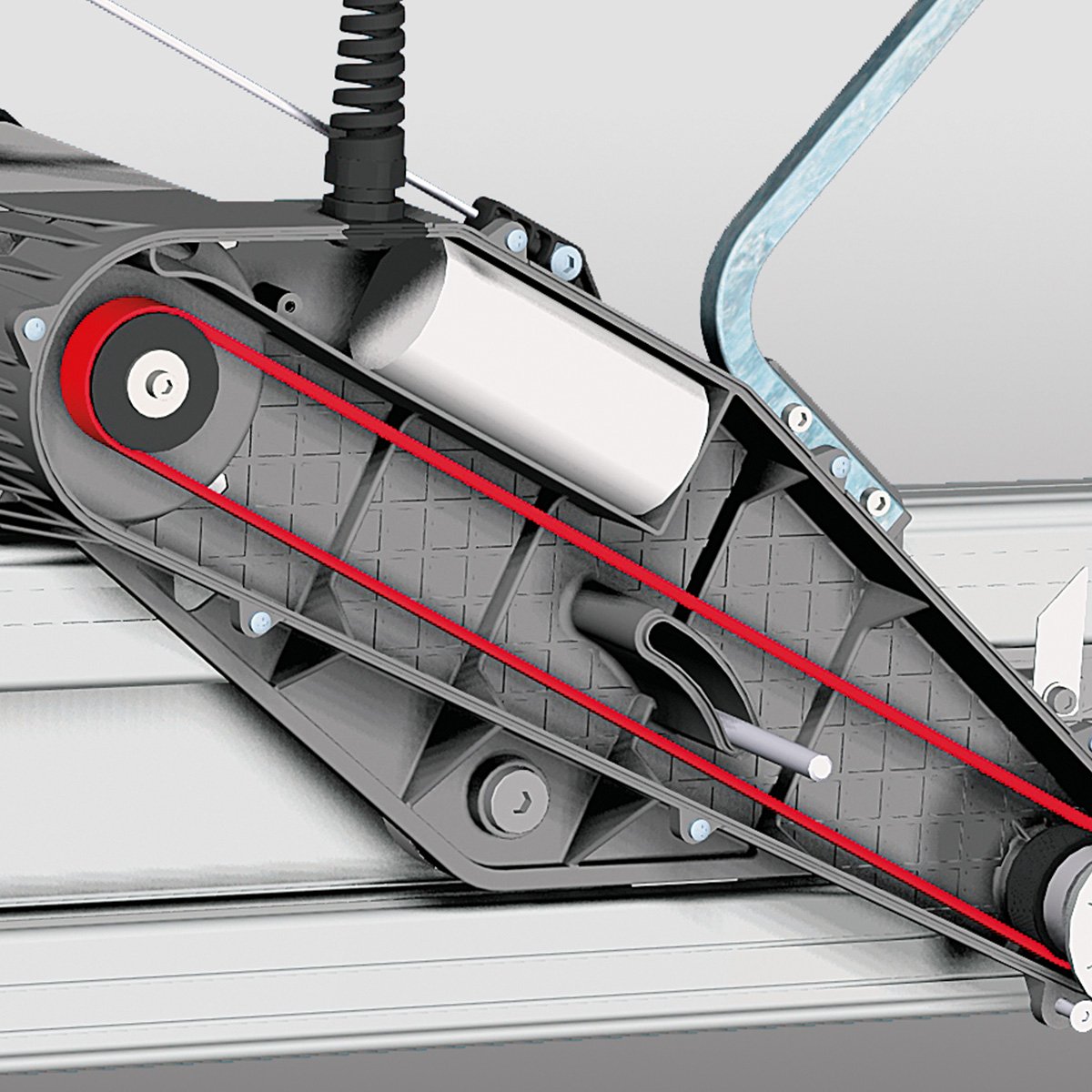

The Dynamic Bridge Saw is a high-performance cutting machine engineered for the construction and masonry industries. Equipped with a reliable antiskid POLY V drive belt, this bridge saw ensures smooth and efficient operation, even in demanding work environments.

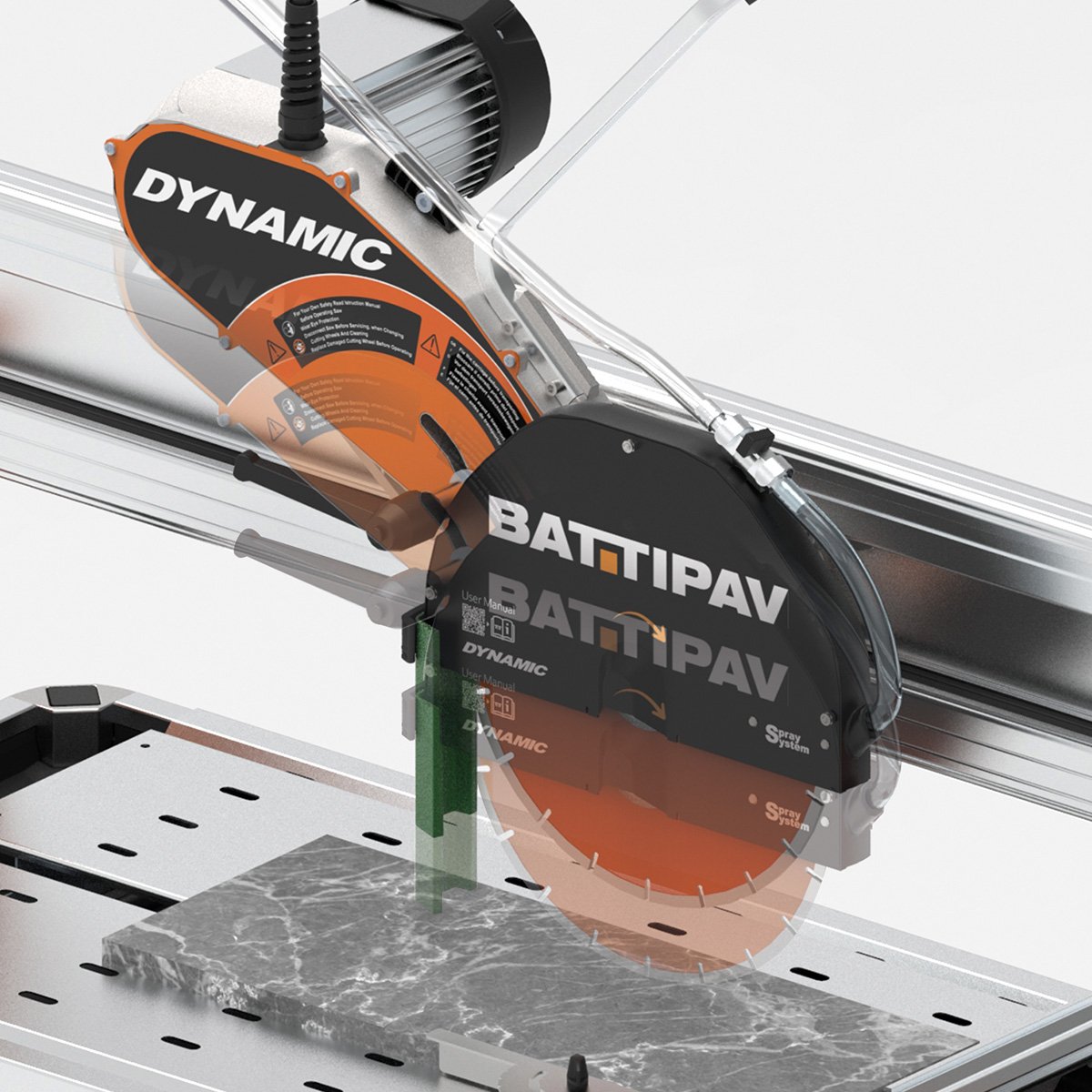

Featuring a modern design and cutting-edge technical innovations, the Dynamic saw is built for strength, precision, and durability. It is ideal for cutting bricks, stone, concrete blocks, granite, marble, and gres with accuracy and ease.The machine supports two cutting methods: manual forward cutting and motor group plunging, offering flexibility based on your application. It is compatible with diamond blades (Ø250 mm and Ø300 mm), delivering clean, professional results every time.
TT Power The logo which identify the uniqueness of the electric motors manufactured by Battipav, which is the only company in the cutting machines industry able to develop and manufacture the electric motors that power their saws.
AxT(Water for cutting): This trademark represents the winning association between submersible pump and masonry saw. The trademark symbolizes originality and high quality.

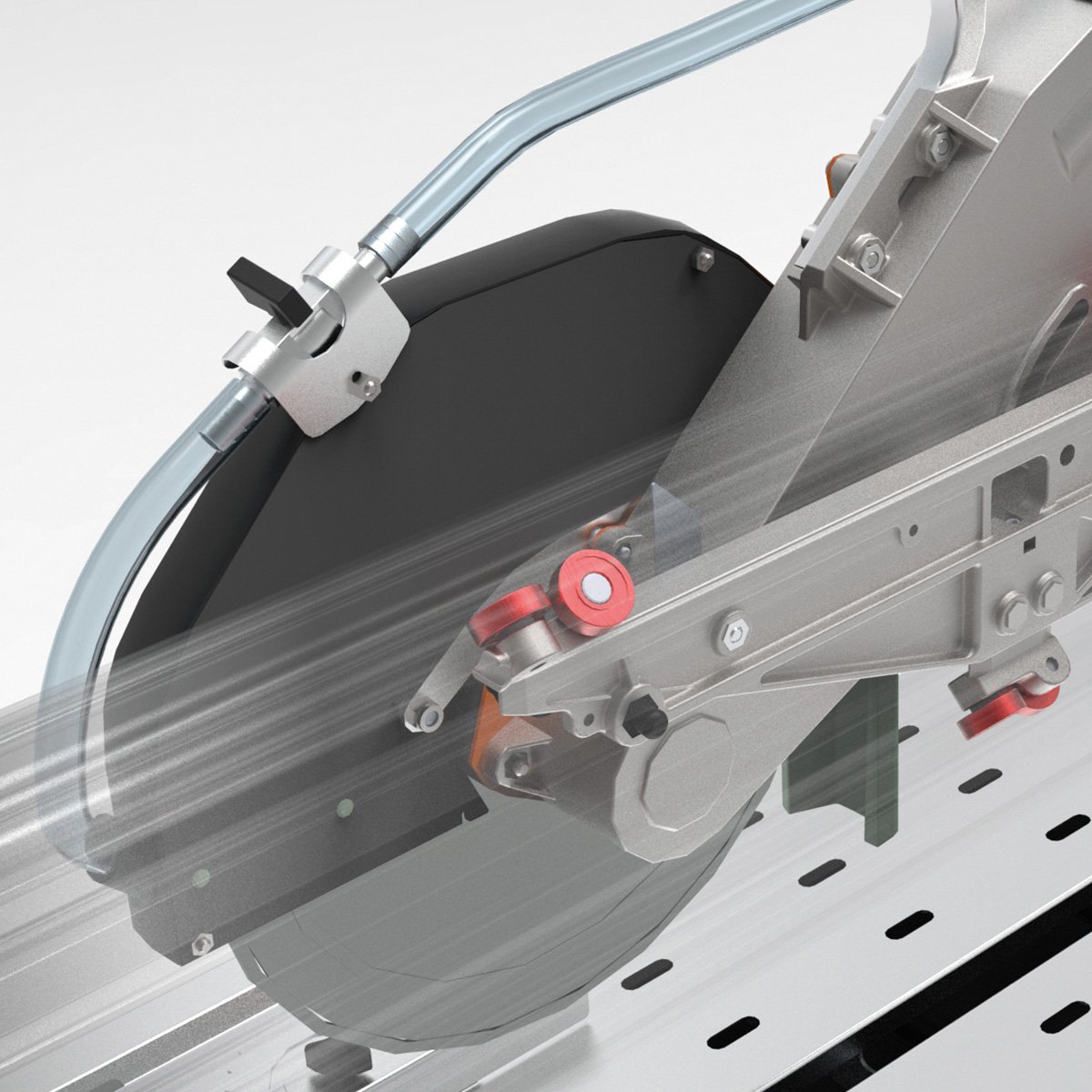

Spray system Diamond blade cooling system. It works on the three vital points of the diamond tool: on the front and on both sides of the rim. It has great efficiency also for 45 degrees cuts. It prevents cutting dust and improves the life of the diamond tool, by creating a flow of misty water inside the blade guard.
Fast Leg The system which makes the storage of the machine much easier. This system ensures more rigidity and steadiness when operating, and allows to stack up to three machines on one pallet. This reduces the encumbrance of the machine by eliminating the packaging.
W Dec Water-decanting system: the original shape of the water tray prevents the grout to accumulate in the pump area, so allowing the pump to use always clean water.
Cable Chain The cable chain system improves the ergonomics of the machine and its disk water cooling. Tilting Head Position for 45° angle cuts.

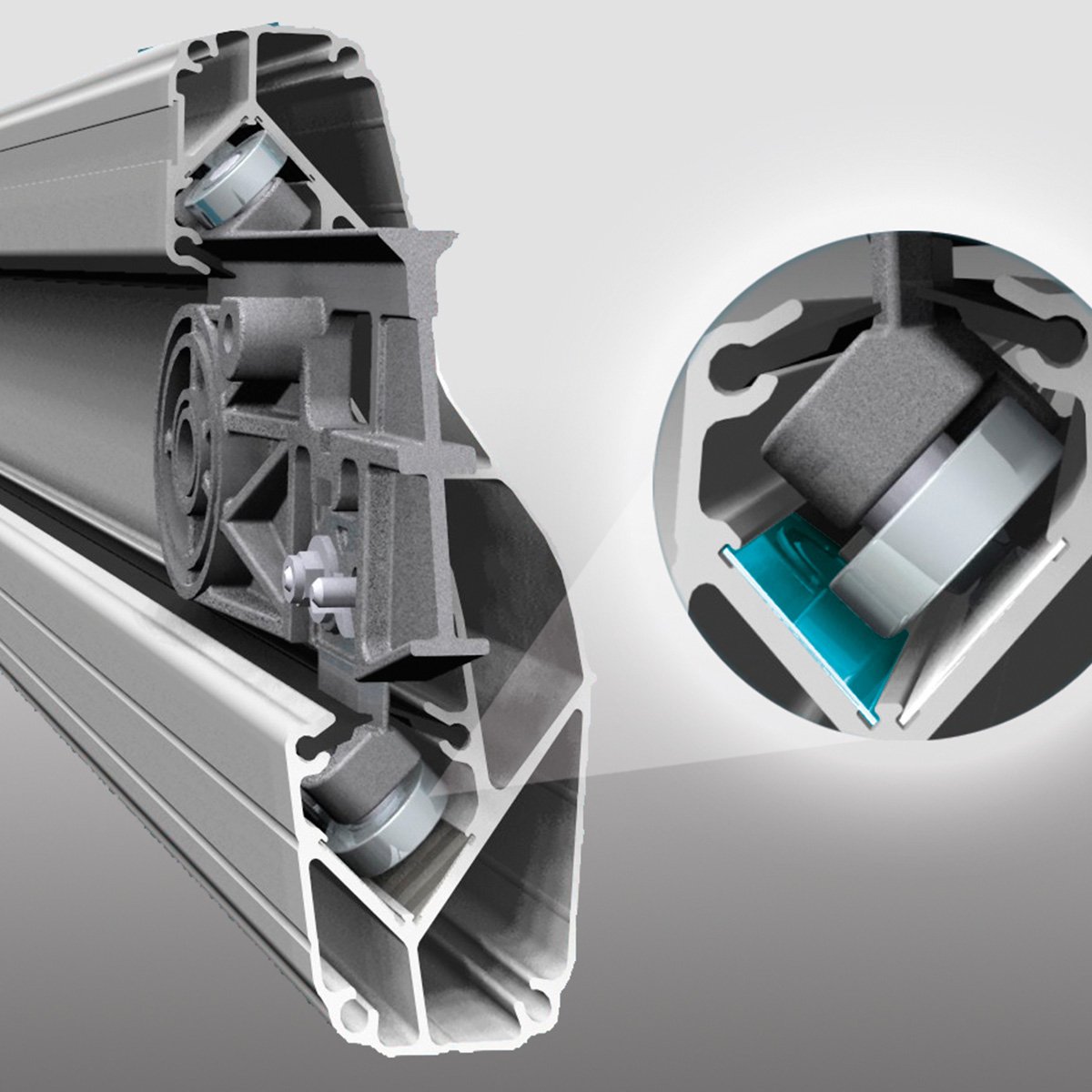

Carriage The carriage motor group slides with 8 ball-bearings on interchangeable stainless steel track.
Accessories:
Included: Wheels Kit Cutting Progress System Laser Instrument
Optional: B-Lock for thickness up to 40 mmSide bench with rollersExtension side bench Lifting belt Side tile support Long slot for side tile support Swivel wheels.
Kindly contact us to get technical details for a product tailored for your project requirements.
