PULSE

PULSE Is a professional battery-powered vibrator designed to work with large format tiles and slabs to expel the air and guarantee perfect adherence. Pick and place PULSE is equipped with: suction cup and practical lever for a very fast "Pick & Place". Maximum 25 kg per tile. Intensity level Press the white rubberized button on the handle. The vibration intensity levels are regulated by a turning wheel. Beating plate Specific beating plate with angular shape for easy access of angles. Accessories: Included: Resistant light case Heavy duty battery Universal charger Angular beating plate

MODEL PULSE Voltage (V DC) 18 Current intensity (AH) 2 Power available (WH) 36 Type of service Continous RPM (Min. / Max.) 500 / 12000 Suction cup diameter (mm) 130 Suction cup thickness (mm) 7 RPM regulation Electronic card with 5-position rotary variator Drive type Service flush button with IP65 protection

PULSE

Battipav
Select Quantity
1

PULSE

Battipav
Select Quantity
1

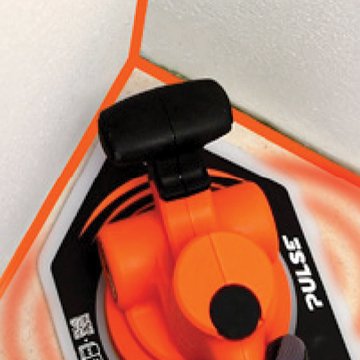

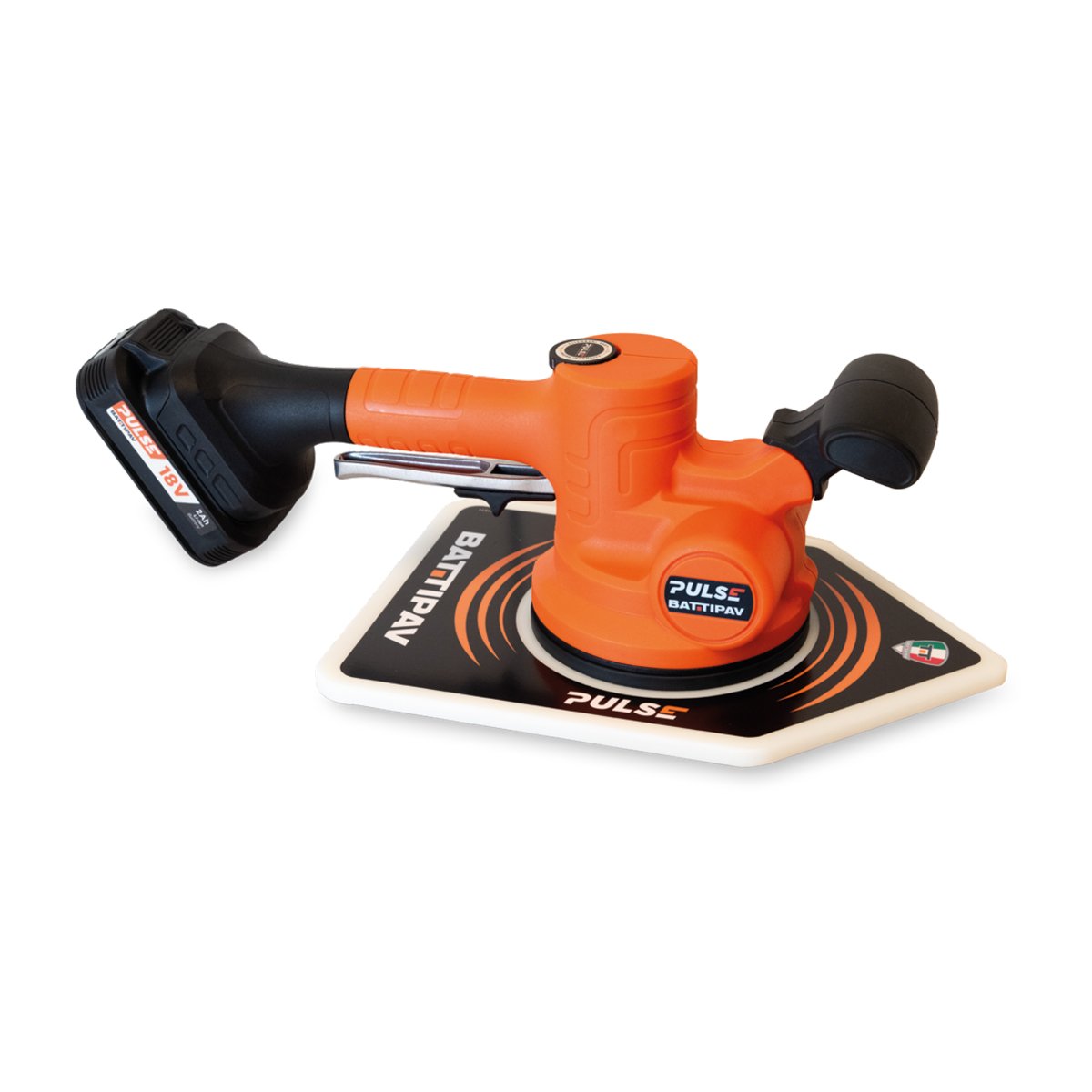

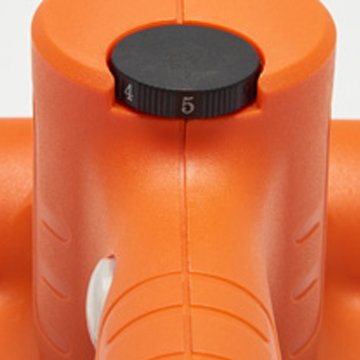

PULSE Is a professional battery-powered vibrator designed to work with large format tiles and slabs to expel the air and guarantee perfect adherence. Pick and place PULSE is equipped with: suction cup and practical lever for a very fast "Pick & Place". Maximum 25 kg per tile. Intensity level Press the white rubberized button on the handle. The vibration intensity levels are regulated by a turning wheel. Beating plate Specific beating plate with angular shape for easy access of angles.

Accessories:

Included:
Resistant light case Heavy duty battery Universal charger Angular beating plate

MODEL PULSE
Voltage (V DC) 18
Current intensity (AH) 2
Power available (WH) 36
Type of service Continous
RPM (Min. / Max.) 500 / 12000
Suction cup diameter (mm) 130
Suction cup thickness (mm) 7
RPM regulation Electronic card with 5-position rotary variator
Drive type Service flush button with IP65 protection
Battipav

Kindly contact us to get technical details for a product tailored for your project requirements.

Contact Us

Download More Details.

Full datasheet with specifications, dimensions, and performance figures.

Data Sheet
