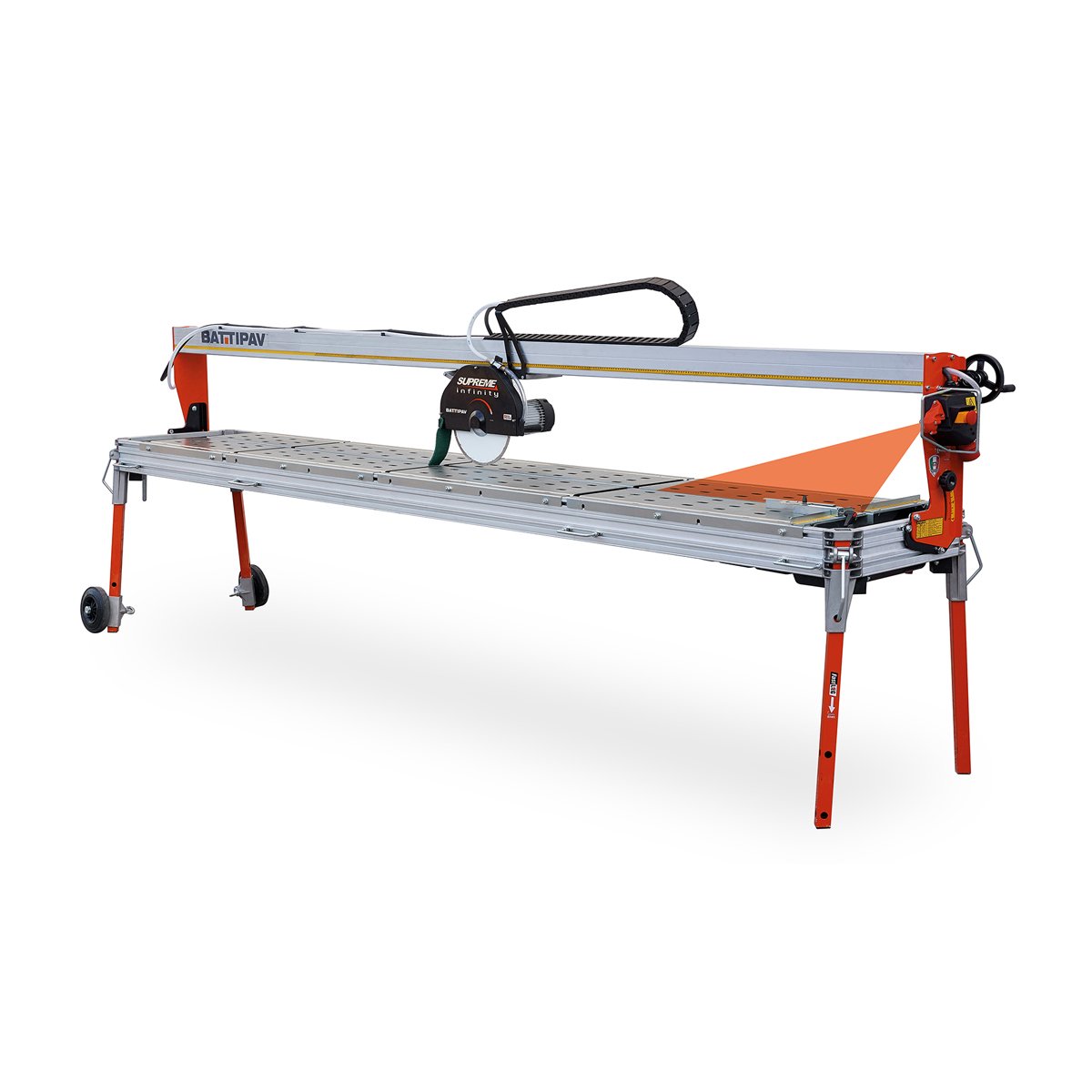

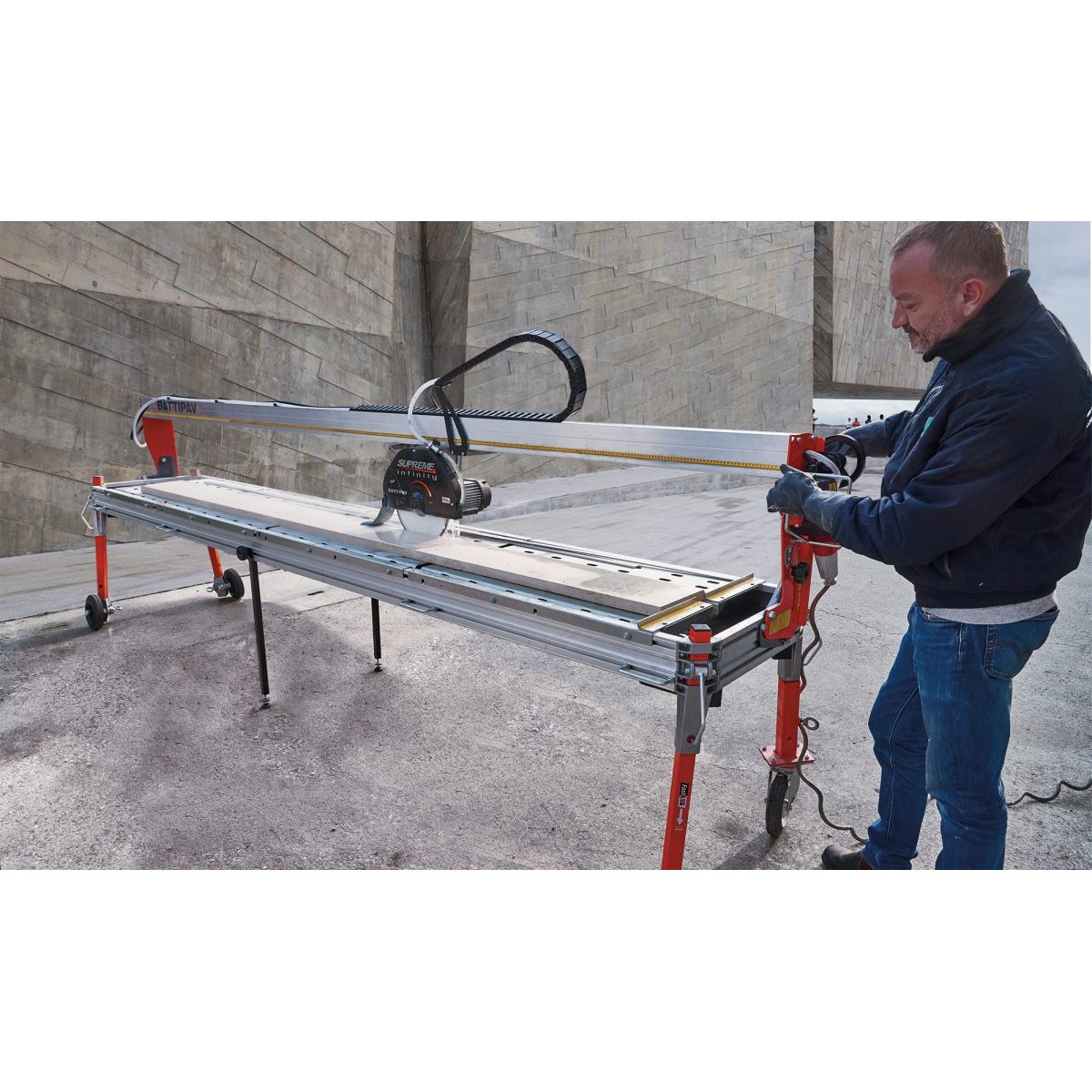

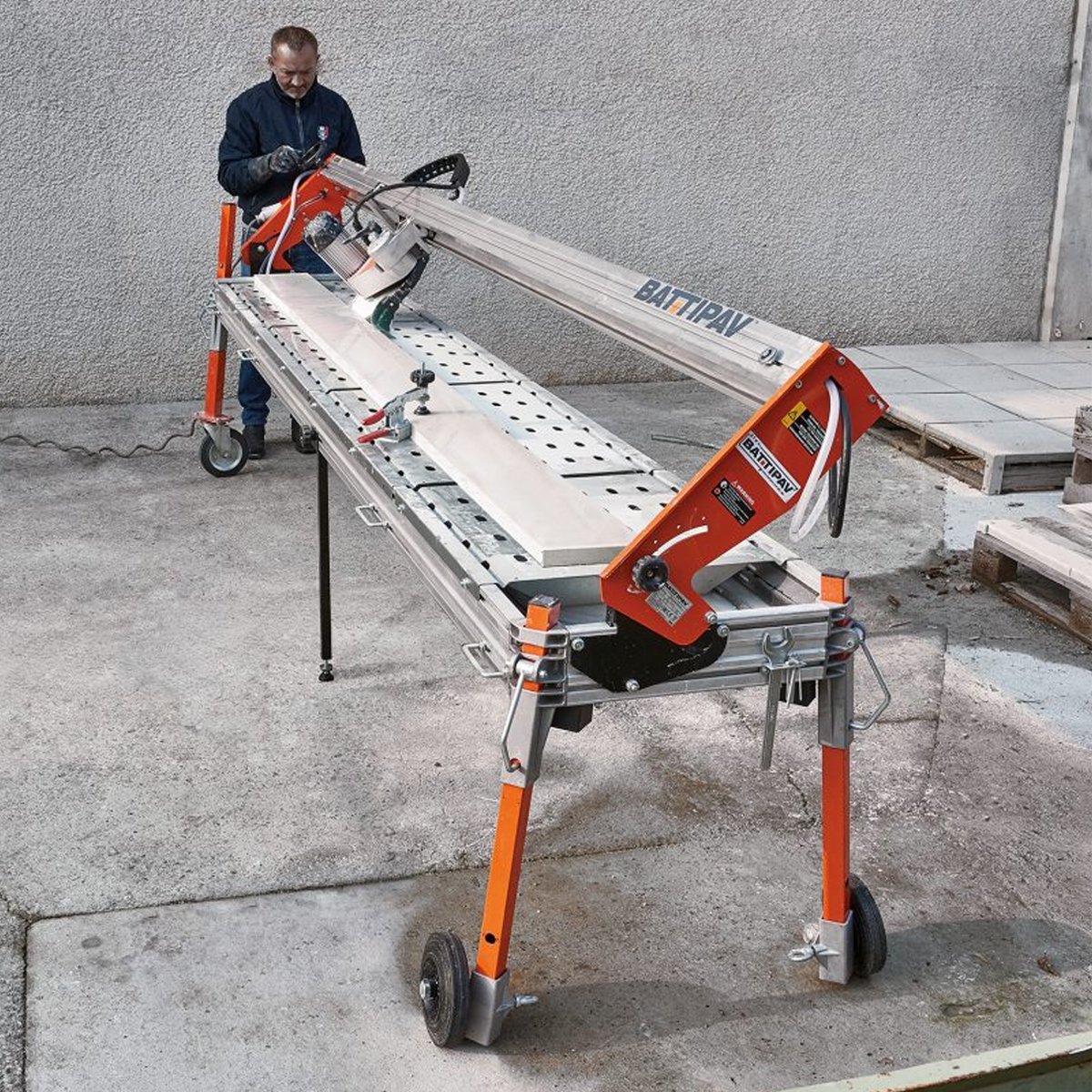

Ideal for straight and 45° angle cuts of ceramic, natural-stones, granite and marble slabs. A unique design due to its length cutting capacity. Able to work non-stop for 8 hours all along. TT Power The logo which identify the uniqueness of the electric motors manufactured by Battipav, which is the only company in the cutting machines industry able to develop and manufacture the electric motors that power their saws. AxT (Water for cutting): This trademark represents the winning association between submersible pump and masonry saw. The trademark symbolizes originality and high quality Spray system Diamond blade cooling system. It works on the three vital points of the diamond tool: on the front and on both sides of the rim. It has great efficiency also for 45 degrees cuts. It prevents cutting dust and improves the life of the diamond tool, by creating a flow of misty water inside the blade guard. Fast Leg The system which makes the storage of the machine much easier. This system ensures more rigidity and steadiness when operating, and allows to stack up to three machines on one pallet. This reduces the encumbrance of the machine by eliminating the packaging. W Dec Water-decanting system: the original shape of the water tray prevents the grout to accumulate in the pump area, so allowing the pump to use always clean water. Cable Chain The cable chain system improves the ergonomics of the machine and its disk water cooling. Tilting Head Position for 45° angle cuts. Bridge The rail, in extrusion of aluminum at high resistance, has been reinforced to avoid any torsional stress. Accessories: Included: Wheels Kit Laser Instrument Side bench with rollers Extension side bench Lifting belt Additional legs for the frame Swivel wheels Optional: Side tile support Long slot for side tile support
MODEL Supreme 320S Blade (Ø mm) * 300 Max. straight cutting length (mm) 3200 Max. cutting depth for straight cut (mm) 85 Max. size tile for diagonal cutting (mm) 4525 x 4525 Max. cutting depth with 2 runs (mm) 135 Max. cutting depth for 45° angle cut (mm) 60 Tool hole (Ø mm) 25.4 Rotation speed (rpm) 2800 Motor type 3 phase - 400V ~ 50HZ Motor power (HP / kW, A) 4.5 / 3.4, 6.0 Water recycling pump type S3 Water tank capacity (Min. / Max.) (ltrs.) 45 / 50 Thermic protection (°C) 160 Amperometrical protection (A) 6 - 10 Net weight (kg) 205.5
Ideal for straight and 45° angle cuts of ceramic, natural-stones, granite and marble slabs. A unique design due to its length cutting capacity. Able to work non-stop for 8 hours all along. TT Power The logo which identify the uniqueness of the electric motors manufactured by Battipav, which is the only company in the cutting machines industry able to develop and manufacture the electric motors that power their saws. AxT(Water for cutting): This trademark represents the winning association between submersible pump and masonry saw. The trademark symbolizes originality and high quality Spray system Diamond blade cooling system. It works on the three vital points of the diamond tool: on the front and on both sides of the rim. It has great efficiency also for 45 degrees cuts. It prevents cutting dust and improves the life of the diamond tool, by creating a flow of misty water inside the blade guard. Fast Leg The system which makes the storage of the machine much easier. This system ensures more rigidity and steadiness when operating, and allows to stack up to three machines on one pallet. This reduces the encumbrance of the machine by eliminating the packaging. W Dec Water-decanting system: the original shape of the water tray prevents the grout to accumulate in the pump area, so allowing the pump to use always clean water. Cable Chain The cable chain system improves the ergonomics of the machine and its disk water cooling. Tilting Head Position for 45° angle cuts. Bridge The rail, in extrusion of aluminum at high resistance, has been reinforced to avoid any torsional stress.
Accessories:
Included: Wheels Kit Laser InstrumentSide bench with rollersExtension side bench Lifting belt Additional legs for the frame Swivel wheels Optional: Side tile support Long slot for side tile support
MODEL
Supreme 320S
Blade (Ø mm)*
300
Max. straight cutting length (mm)
3200
Max. cutting depth for straight cut (mm)
85
Max. size tile for diagonal cutting (mm)
4525 x 4525
Max. cutting depth with 2 runs (mm)
135
Max. cutting depth for 45° angle cut (mm)
60
Tool hole (Ø mm)
25.4
Rotation speed (rpm)
2800
Motor type
3 phase - 400V ~ 50HZ
Motor power (HP / kW, A)
4.5 / 3.4, 6.0
Water recycling pump type
S3
Water tank capacity (Min. / Max.) (ltrs.)
45 / 50
Thermic protection (°C)
160
Amperometrical protection (A)
6 - 10
Net weight (kg)
205.5
Kindly contact us to get technical details for a product tailored for your project requirements.
