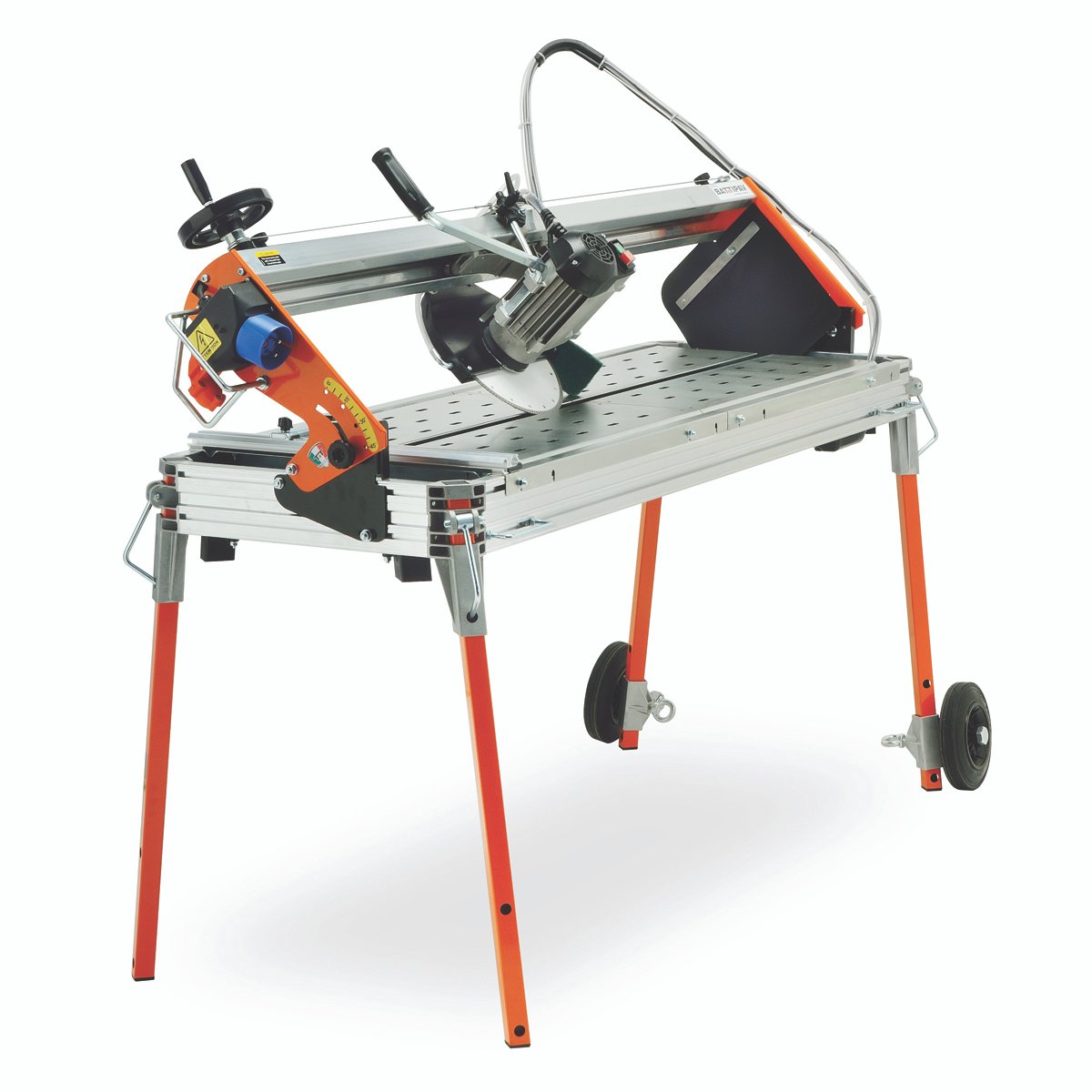

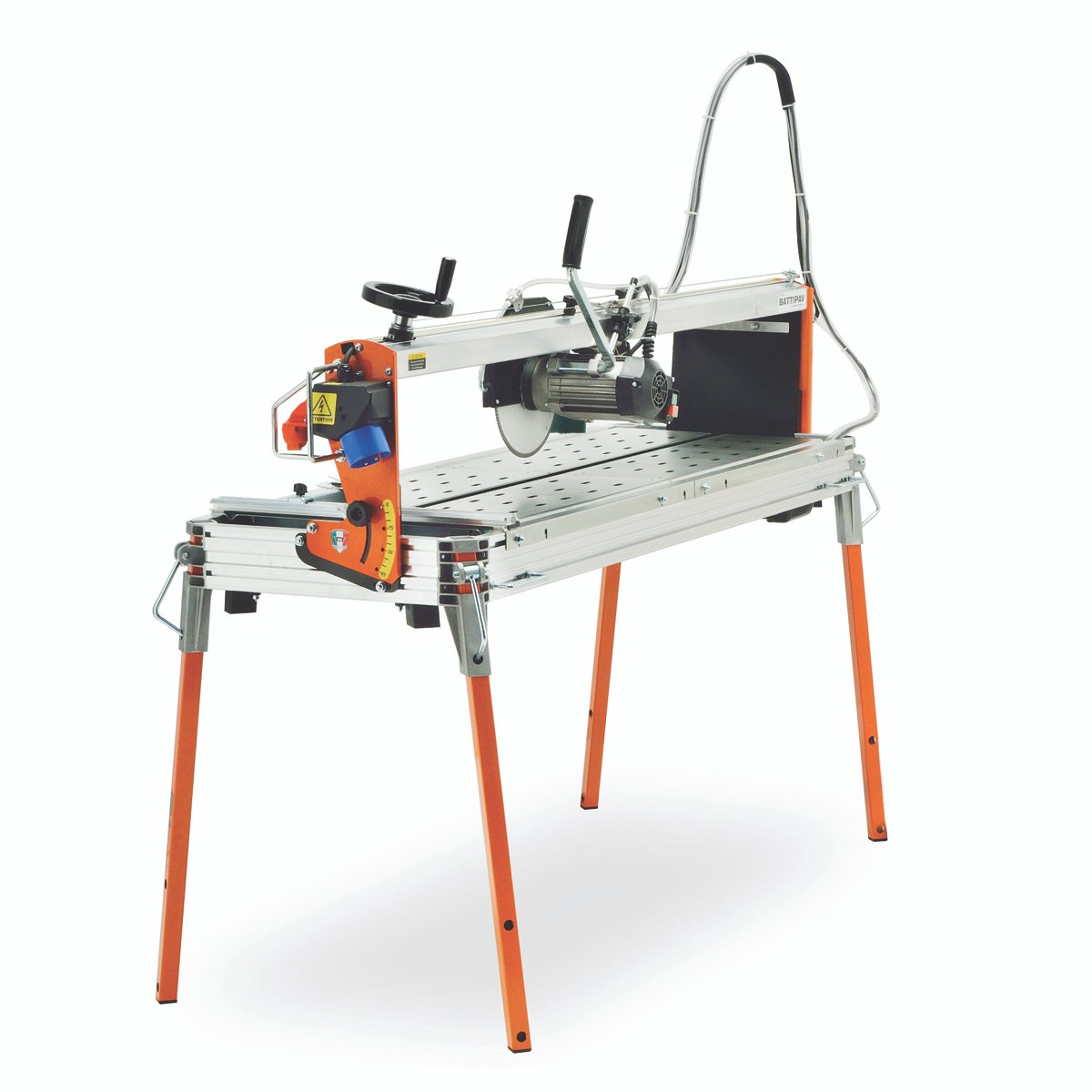

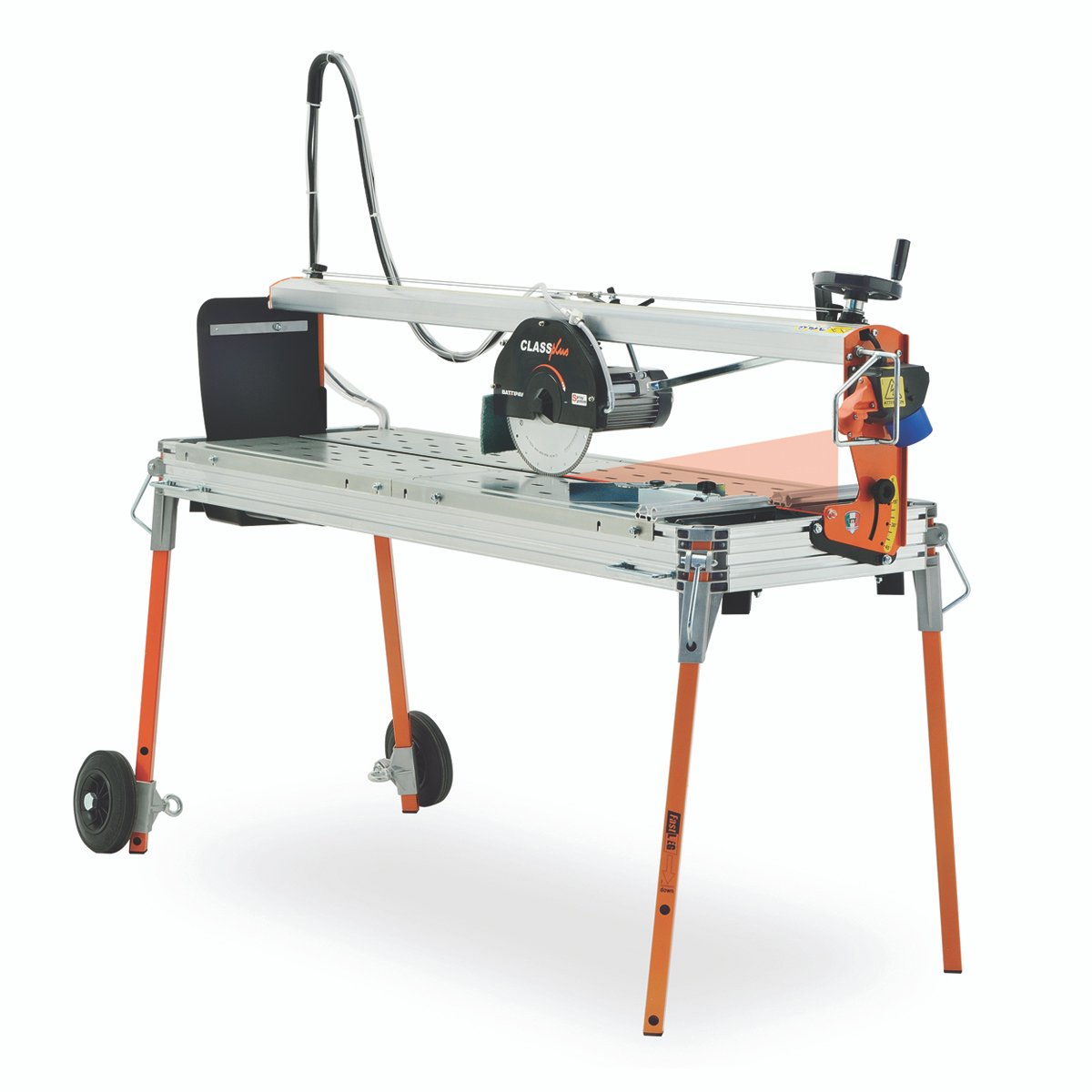

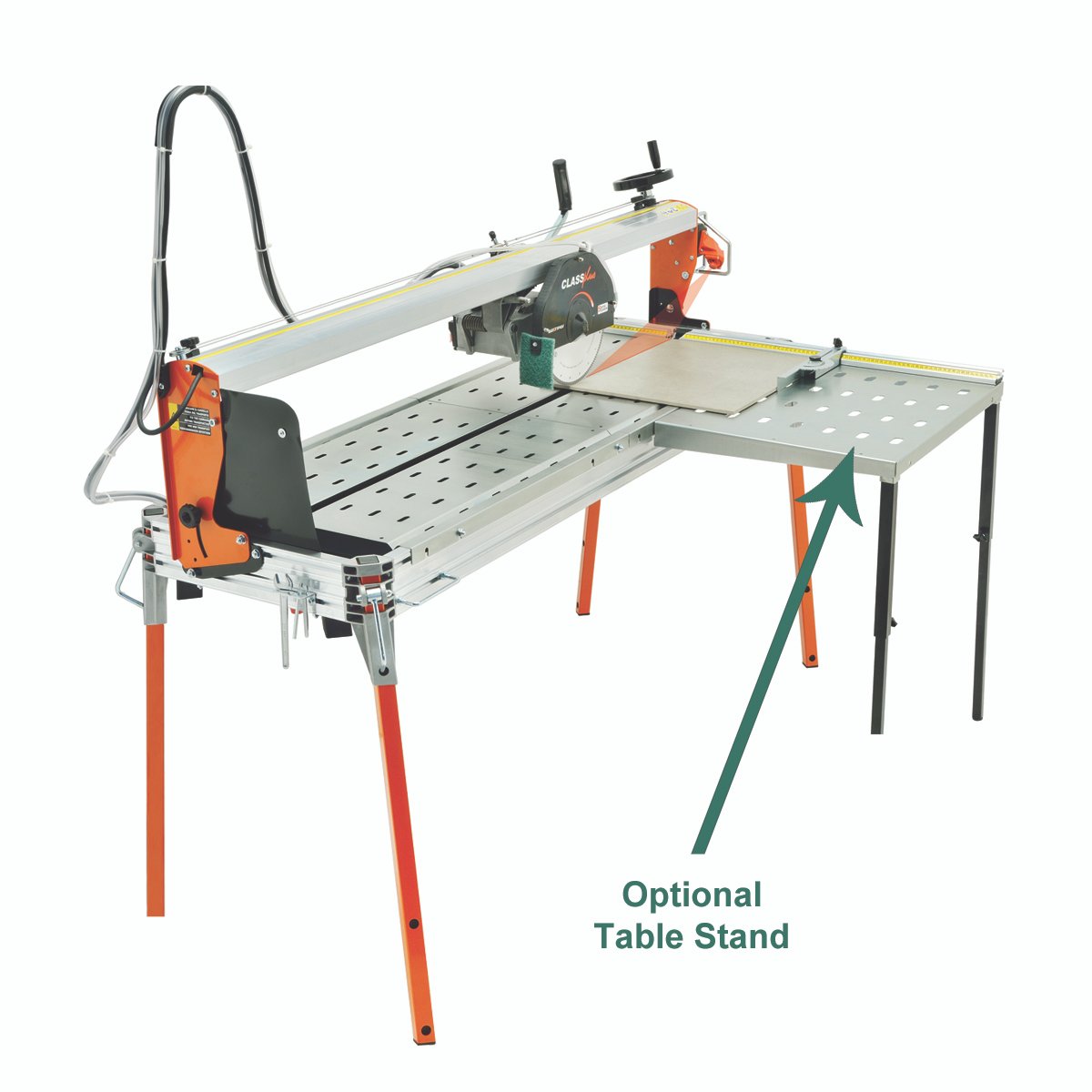

Class Plus 1300

CLASS PLUS is a radial tile cutter ideal for straight and 45° angle cuts on porcelain stoneware, tiles and marble.New design with vanguard technical innovation, strong and precise. Equipped with POWERFUL MOTOR sliding and plunging cutting head and tilting motor TT Power The logo which identify the uniqueness of the electric motors manufactured by Battipav, which is the only company in the cutting machines industry able to develop and manufacture the electric motors that power their saws. AxT (Water for cutting): This trademark represents the winning association between submersible pump and masonry saw. The trademark symbolizes originality and high quality Spray system Diamond blade cooling system. It works on the three vital points of the diamond tool: on the front and on both sides of the rim. It has great efficiency also for 45 degrees cuts. It prevents cutting dust and improves the life of the diamond tool, by creating a flow of misty water inside the blade guard. Fast Leg The system which makes the storage of the machine much easier. This system ensures more rigidity and steadiness when operating, and allows to stack up to three machines on one pallet. This reduces the encumbrance of the machine by eliminating the packaging. W Dec Water-decanting system: the original shape of the water tray prevents the grout to accumulate in the pump area, so allowing the pump to use always clean water. Plunging head The cutting head is horizontally pivoted and can be locked at the intended height. It makes every kind of shape. Tilting head Position for 45° angle cuts. Rail The rail is in extrusion of alluminium at high resistance to the torsional stress. It's equipped with interchangeable stainless steel bearings-tracks. Absolute cutting precision. Accessories: Included: Cutting progress system Optional: Wheels kit Laser instrument B-Lock for thickness up to 40 mm Tile lock system Extension side bench Side tile support Long slot for side tile support

MODEL Class Plus 1300 Blade (Ø mm) * 250 Max. straight cutting length (mm) Thickness <= 42 mm: 1300Thickness > 42 mm: 1160 Max. cutting depth for straight cut (mm) 65 Max. size tile for diagonal cutting (mm) Thickness <= 42 mm: 920 x 920Thickness > 42 mm: 820 x 820 Max. cutting depth with 2 runs (mm) 80 Max. cutting depth for 45° angle cut (mm) 53 Tool hole (Ø mm) 25.4 Rotation speed (rpm) 2800 Motor type 1 phase - 230V ~ 50HZ Motor power (HP / kW, A) 1.8 / 1.4, 6.0 Water recycling pump type S1 Water tank capacity (Min. / Max.) (ltrs.) 22 / 28 Thermic protection (°C) 170 Net weight (kg) 52
