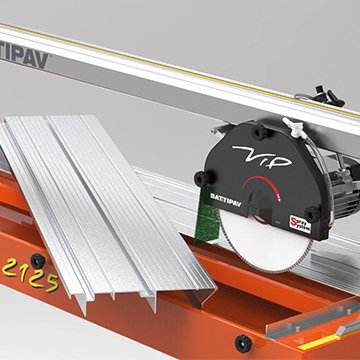

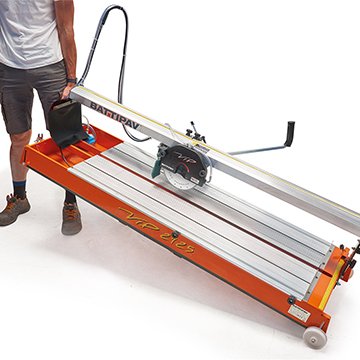

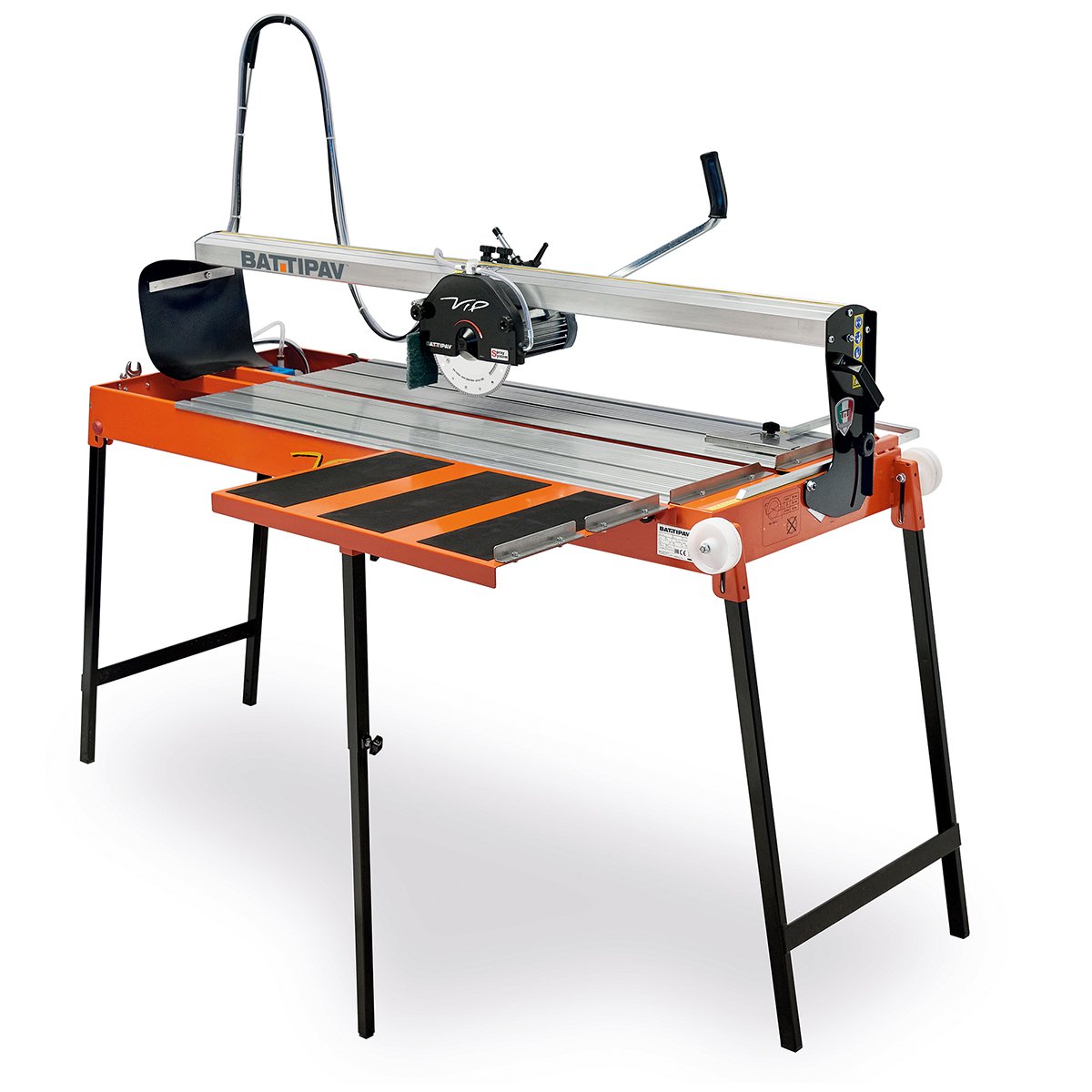

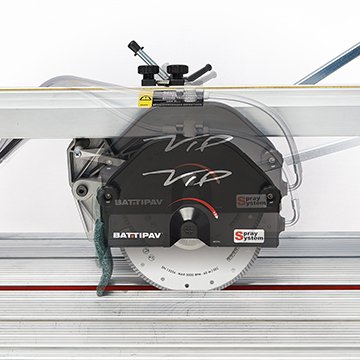

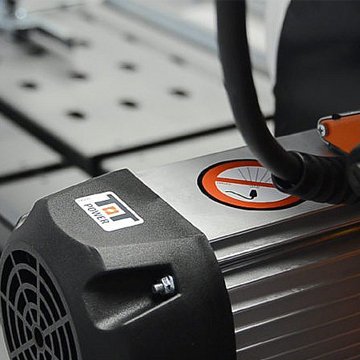

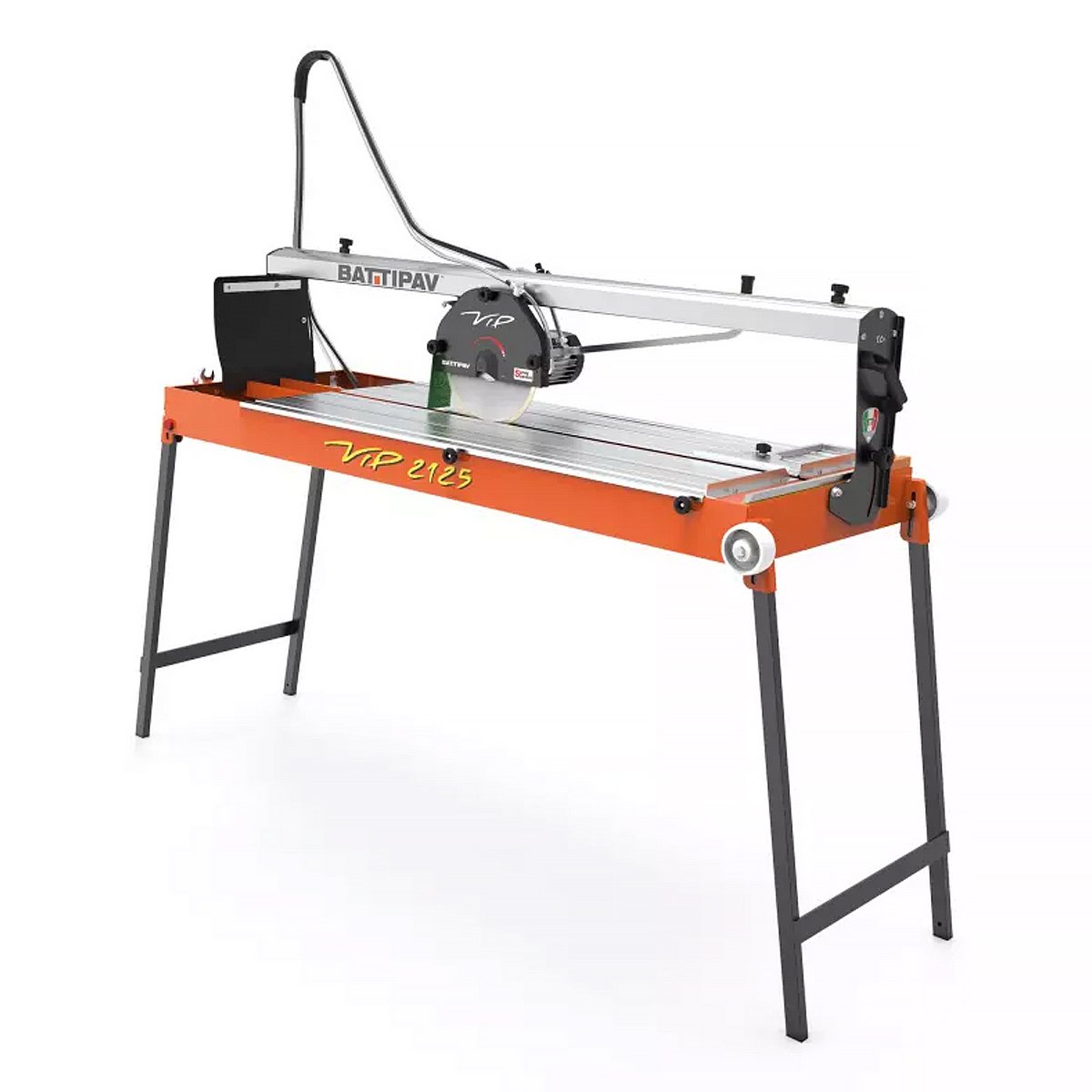

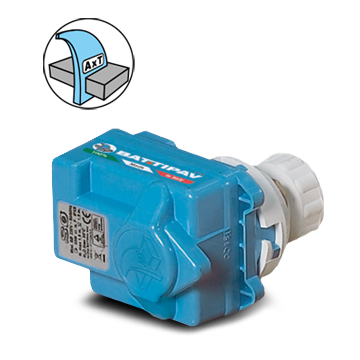

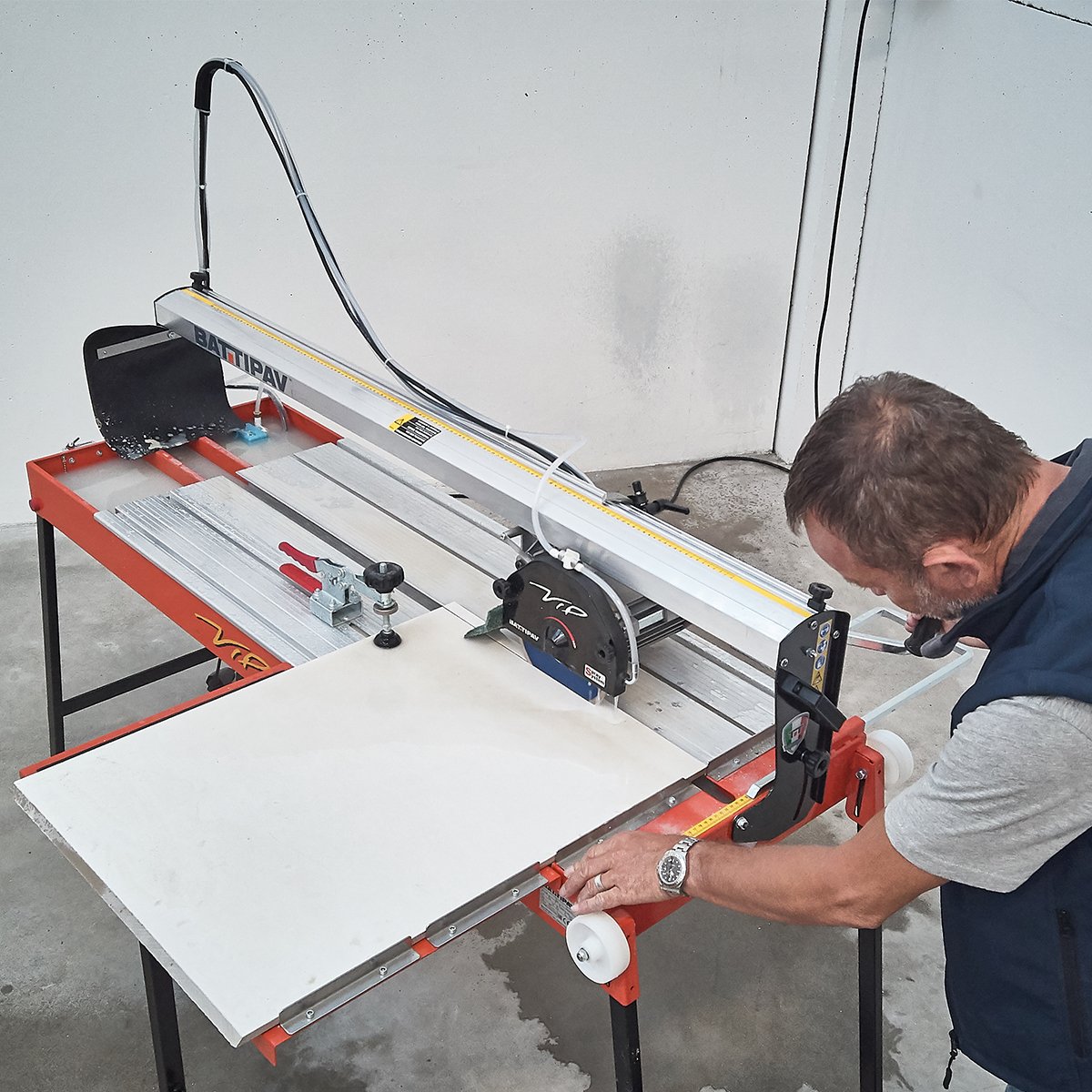

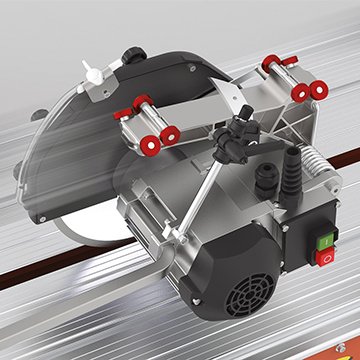

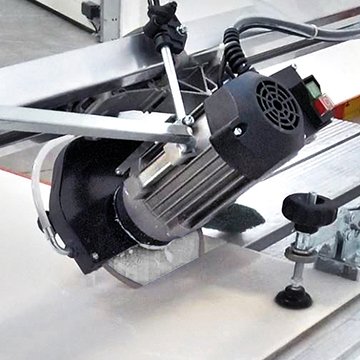

VIP is a radial tile cutter ideal for straight and 45° angle cuts on porcelain stoneware, tiles and marble.Strong and precise, it is equipped with sliding cutting head and plunging motor. It is built to work with diamond disks Ø200 mm. TT Power The logo which identify the uniqueness of the electric motors manufactured by Battipav, which is the only company in the cutting machines industry able to develop and manufacture the electric motors that power their saws. AxT (Water for cutting): This trademark represents the winning association between submersible pump and masonry saw. The trademark symbolizes originality and high quality Frame and Worktop Frame and the worktop in aluminum, are wider for a perfect stability and precision during the cutting. The special shape of the worktop allows an easy cleaning. Plunging head The cutting head is horizontally pivoted and can be locked at the intended height. It makes every kind of shape. Tilting head The cutting head is horizontally pivoted and can be locked at the intended height. It makes every kind of shape. Carriage Engine Group The carriage motor group slides with 8 ball bearings on interchangeable stainless steel track. Accessories : Included: Transport Wheels Extension side bench Optional: B-Lock for thickness up to 40 mm
MODEL VIP 2125 Blade (Ø mm) * 200 Max. straight cutting length (mm) 1250 Max. cutting depth for straight cut (mm) 40 Max. size tile for diagonal cutting (mm) 880 x 880 Max. cutting depth with 2 runs (mm) 55 Max. cutting depth for 45° angle cut (mm) 35 Tool hole (Ø mm) 25.4 Rotation speed (rpm) 2800 Motor type 1 phase - 230V ~ 50HZ Motor power (HP / kW, A) 1.8 / 1.4, 6.0 Net weight (kg) 51.5
VIP is a radial tile cutter ideal for straight and 45° angle cuts on porcelain stoneware, tiles and marble.Strong and precise, it is equipped with sliding cutting head and plunging motor. It is built to work with diamond disks Ø200 mm. TT Power The logo which identify the uniqueness of the electric motors manufactured by Battipav, which is the only company in the cutting machines industry able to develop and manufacture the electric motors that power their saws. AxT(Water for cutting): This trademark represents the winning association between submersible pump and masonry saw. The trademark symbolizes originality and high quality Frame and Worktop Frame and the worktop in aluminum, are wider for a perfect stability and precision during the cutting. The special shape of the worktop allows an easy cleaning. Plunging head The cutting head is horizontally pivoted and can be locked at the intended height. It makes every kind of shape. Tilting head The cutting head is horizontally pivoted and can be locked at the intended height. It makes every kind of shape. Carriage Engine Group The carriage motor group slides with 8 ball bearings on interchangeable stainless steel track.
Accessories:

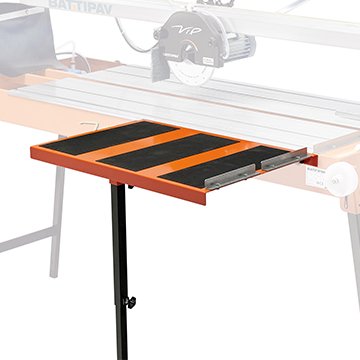

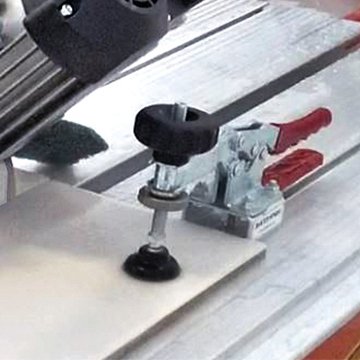

Included: Transport Wheels Extension side bench Optional: B-Lock for thickness up to 40 mm
MODEL
VIP 2125
Blade (Ø mm)*
200
Max. straight cutting length (mm)
1250
Max. cutting depth for straight cut (mm)
40
Max. size tile for diagonal cutting (mm)
880 x 880
Max. cutting depth with 2 runs (mm)
55
Max. cutting depth for 45° angle cut (mm)
35
Tool hole (Ø mm)
25.4
Rotation speed (rpm)
2800
Motor type
1 phase - 230V ~ 50HZ
Motor power (HP / kW, A)
1.8 / 1.4, 6.0
Net weight (kg)
51.5
Kindly contact us to get technical details for a product tailored for your project requirements.
