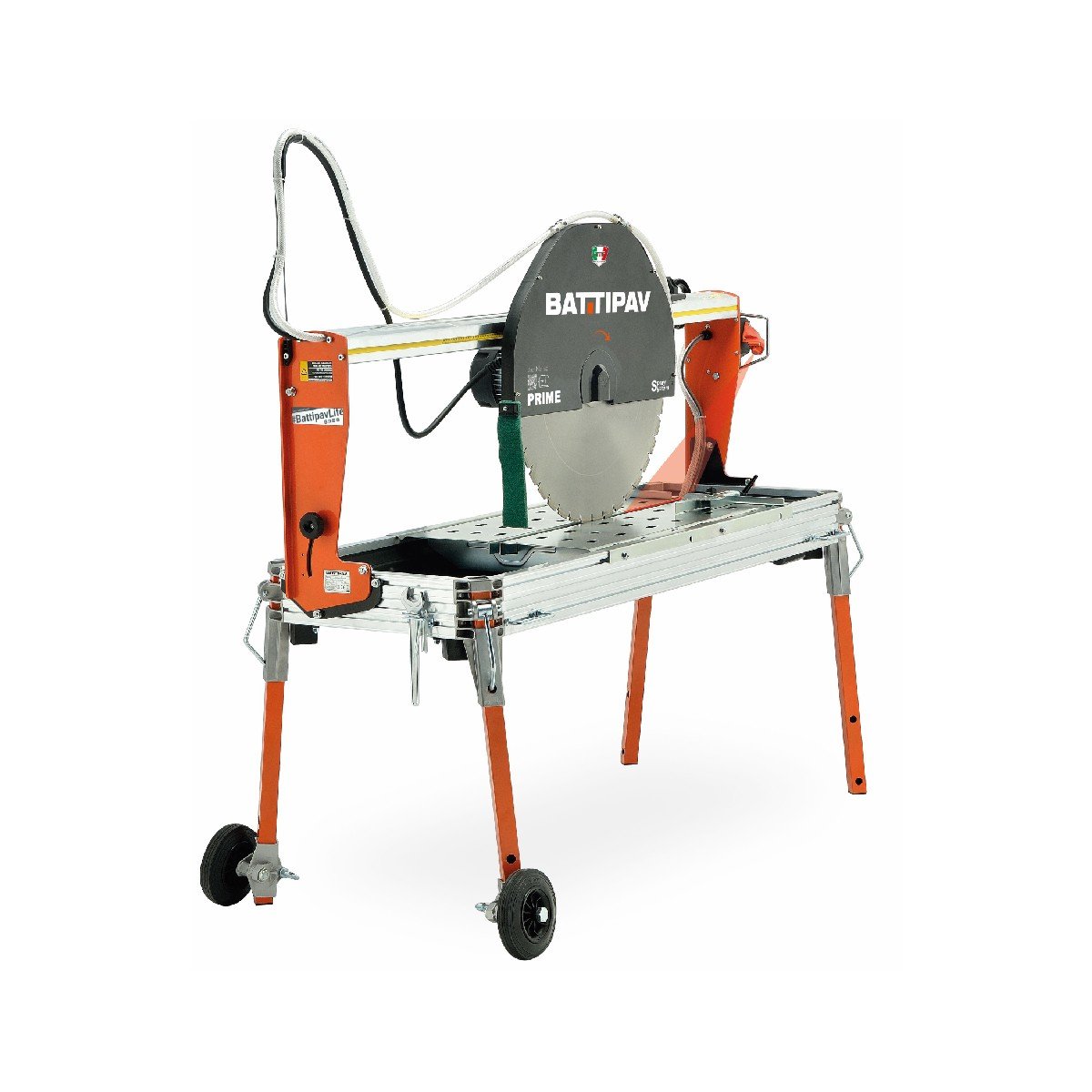

Prime 700

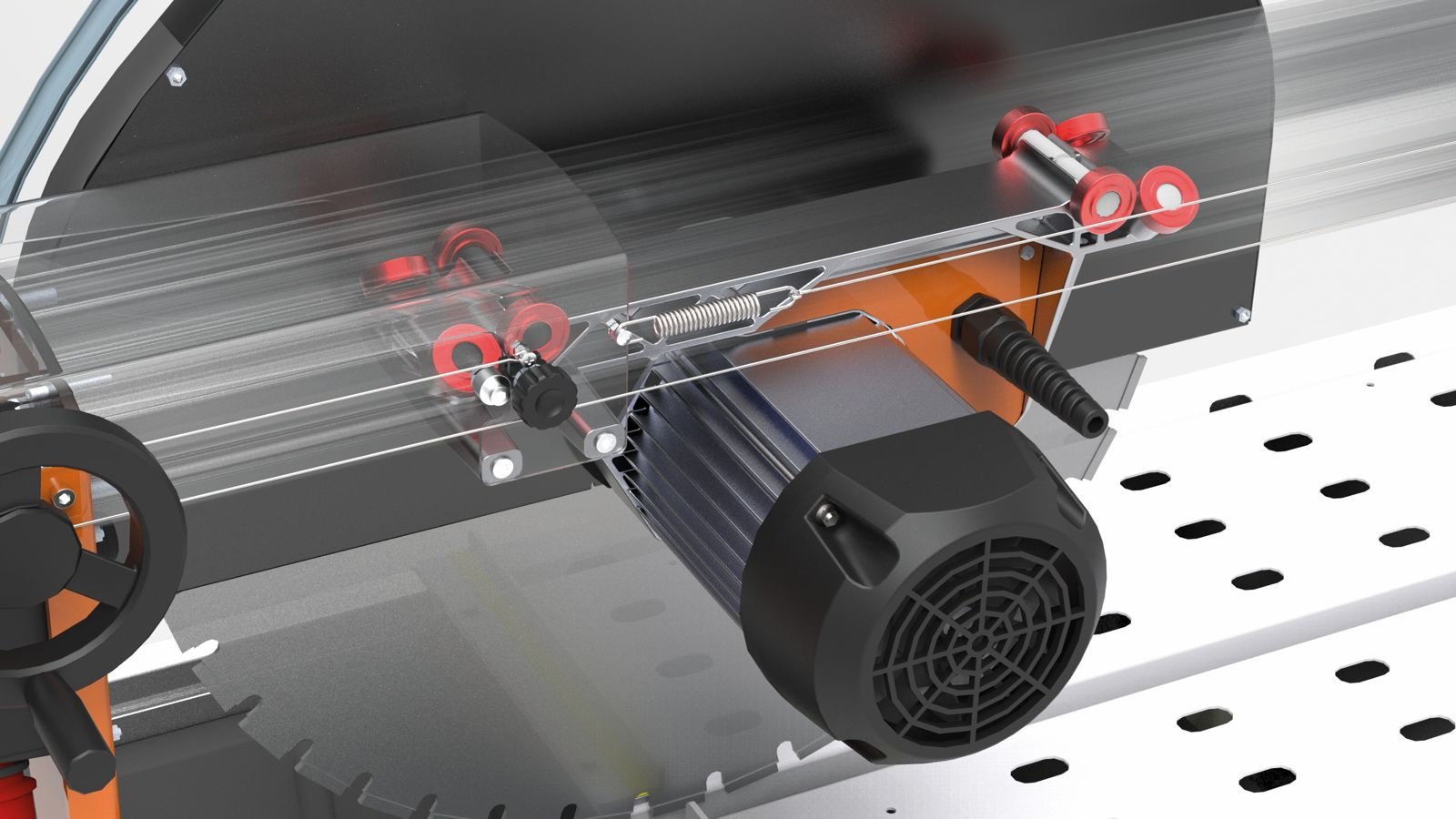

PRIME 500, PRIME 650 & PRIME 700, are bridge saws ideal for the building sector.New design with vanguard technical innovation, strong and precise, suitable for cutting kerbs, brick blocks, natural stones, poroton & concrete blocks. TT Power The logo which identify the uniqueness of the electric motors manufactured by Battipav, which is the only company in the cutting machines industry able to develop and manufacture the electric motors that power their saws. AxT (Water for cutting): This trademark represents the winning association between submersible pump and masonry saw. The trademark symbolizes originality and high quality Spray system Diamond blade cooling system. It works on the three vital points of the diamond tool: on the front and on both sides of the rim. It has great efficiency also for 45 degrees cuts. It prevents cutting dust and improves the life of the diamond tool, by creating a flow of misty water inside the blade guard. Fast Leg The system which makes the storage of the machine much easier. This system ensures more rigidity and steadiness when operating, and allows to stack up to three machines on one pallet. This reduces the encumbrance of the machine by eliminating the packaging. W Dec Water-decanting system: the original shape of the water tray prevents the grout to accumulate in the pump area, so allowing the pump to use always clean water. Tilting head Position for 45° angle cuts. Carriage engine group The carriage engine group slides with 8 ball-bearings on interchangeable stainless steel track; providing a very fast and precise cuts. Rail The rail is in extrusion of alluminum at high resistance to the torsional stress. It's equipped with interchangeable stainless steel bearings-tracks. Absolute cutting precision. Extra Cut A braking system for three-phased motors, which allow a very fast complete stop of the disk after the saw switch-off. Disc Rotation Brake (Optional) Adjustable end-run-carriage to increase the cutting length. Accessories: Included: Wheels kit Cutting progress system Optional: Sound rotation security Laser instrument B-Lock for thickness up to 40 mm Side bench with rollers Extension side bench Side tile support Long slot for side tile support

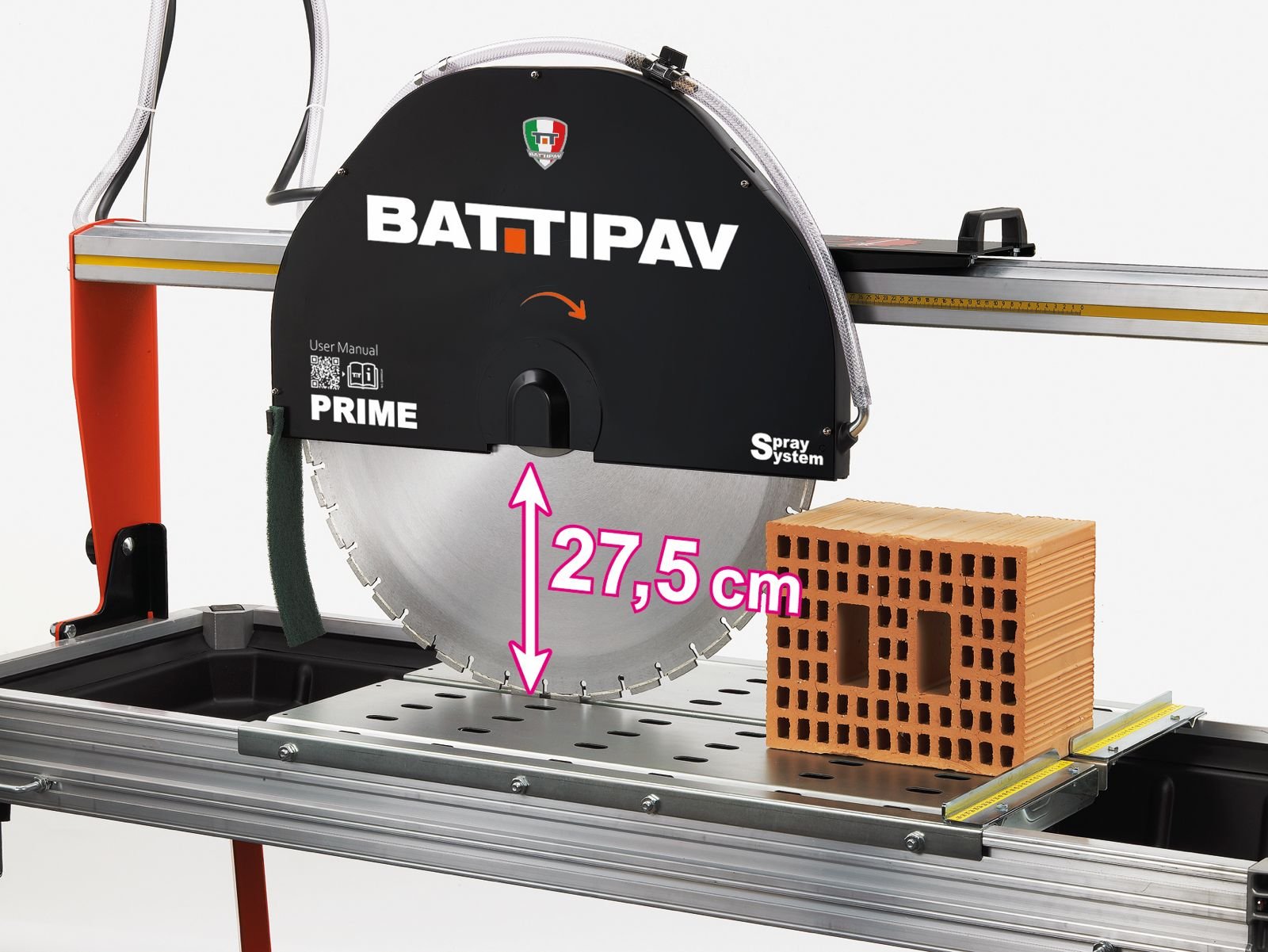

MODEL Prime 700 Blade (Ø mm) * 700 Max. straight cutting length (mm) 615 Extra cut (mm) ** Up to 970Up to 795 (with laser instrument) Max. cutting depth for straight cut (mm) 275 Max. size tile for diagonal cutting (mm) 435 x 435 Max. cutting depth for 45° angle cut (mm) 180 Tool hole (Ø mm) 25.4 Rotation speed (rpm) 1400 Motor type 3 phase - 400V ~ 50 Hz Motor power (HP / kW, A) 5.5 / 4.0, 8.0 Water recycling pump type P3 Amperometrical protection (A) 10 - 16 Net weight (kg) 113
