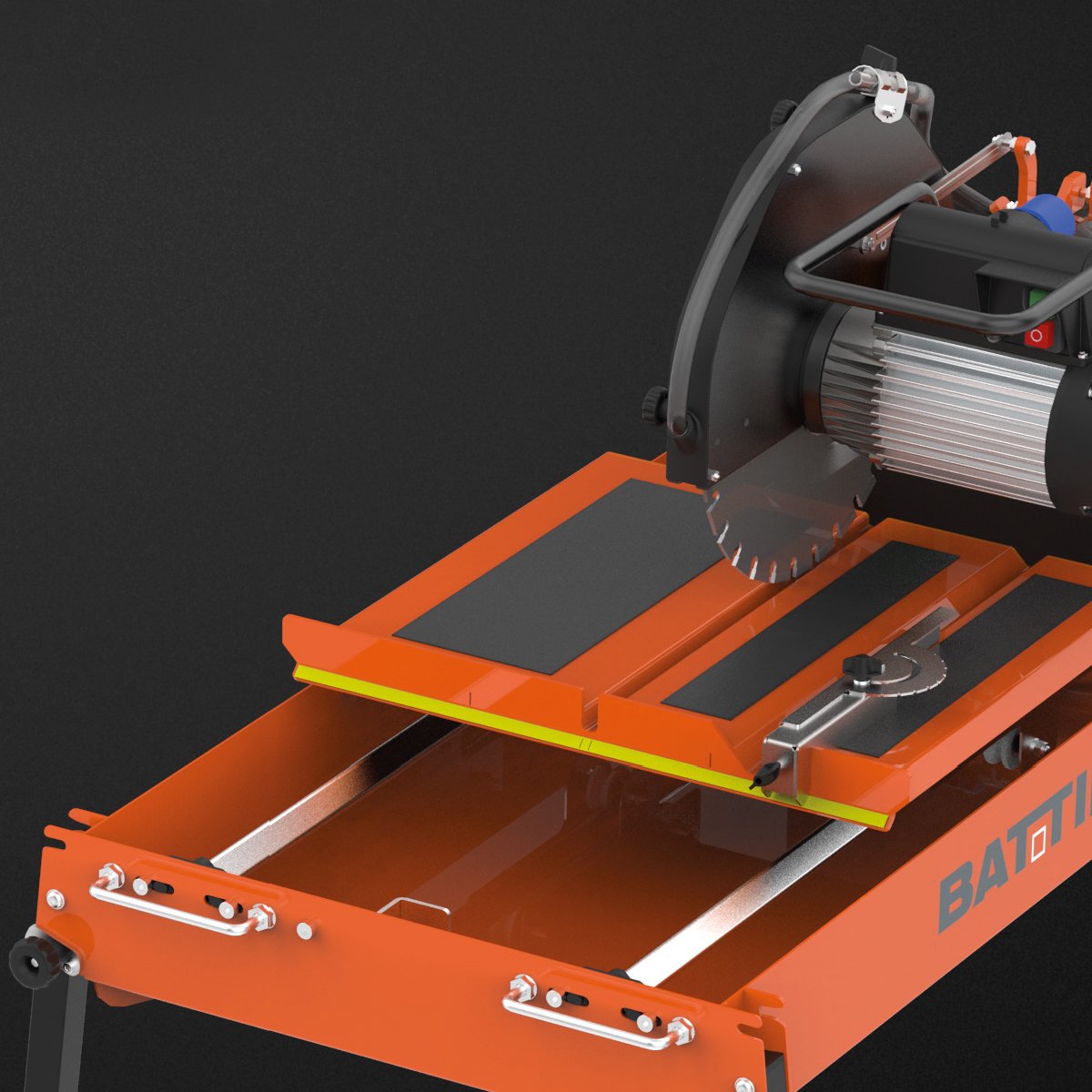

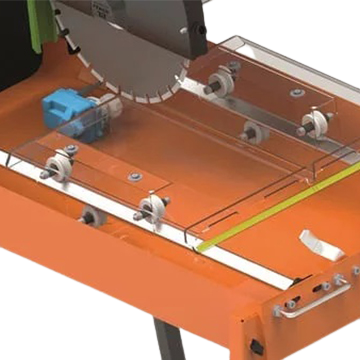

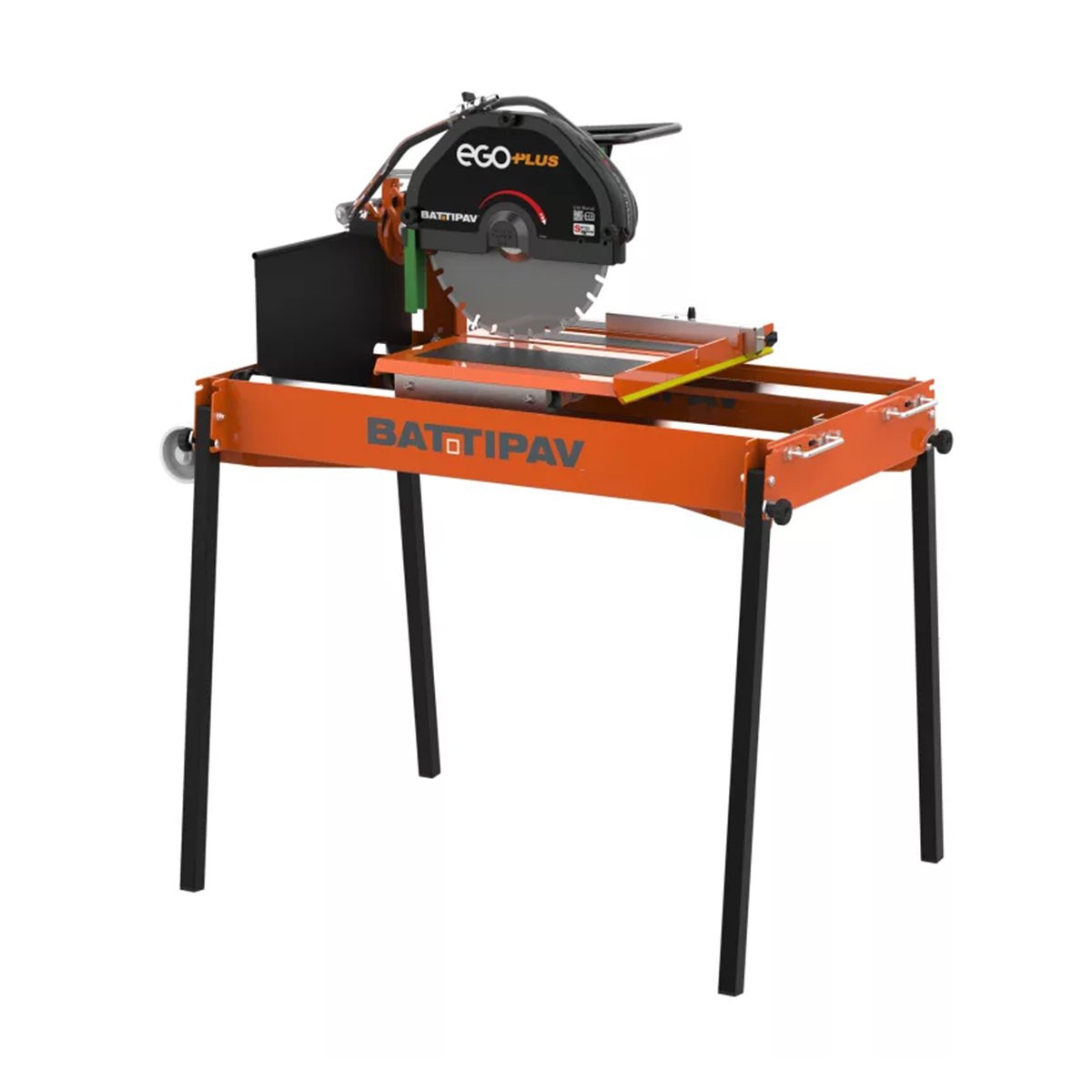

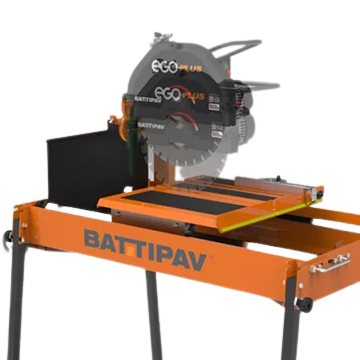

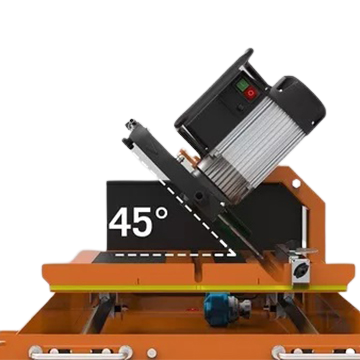

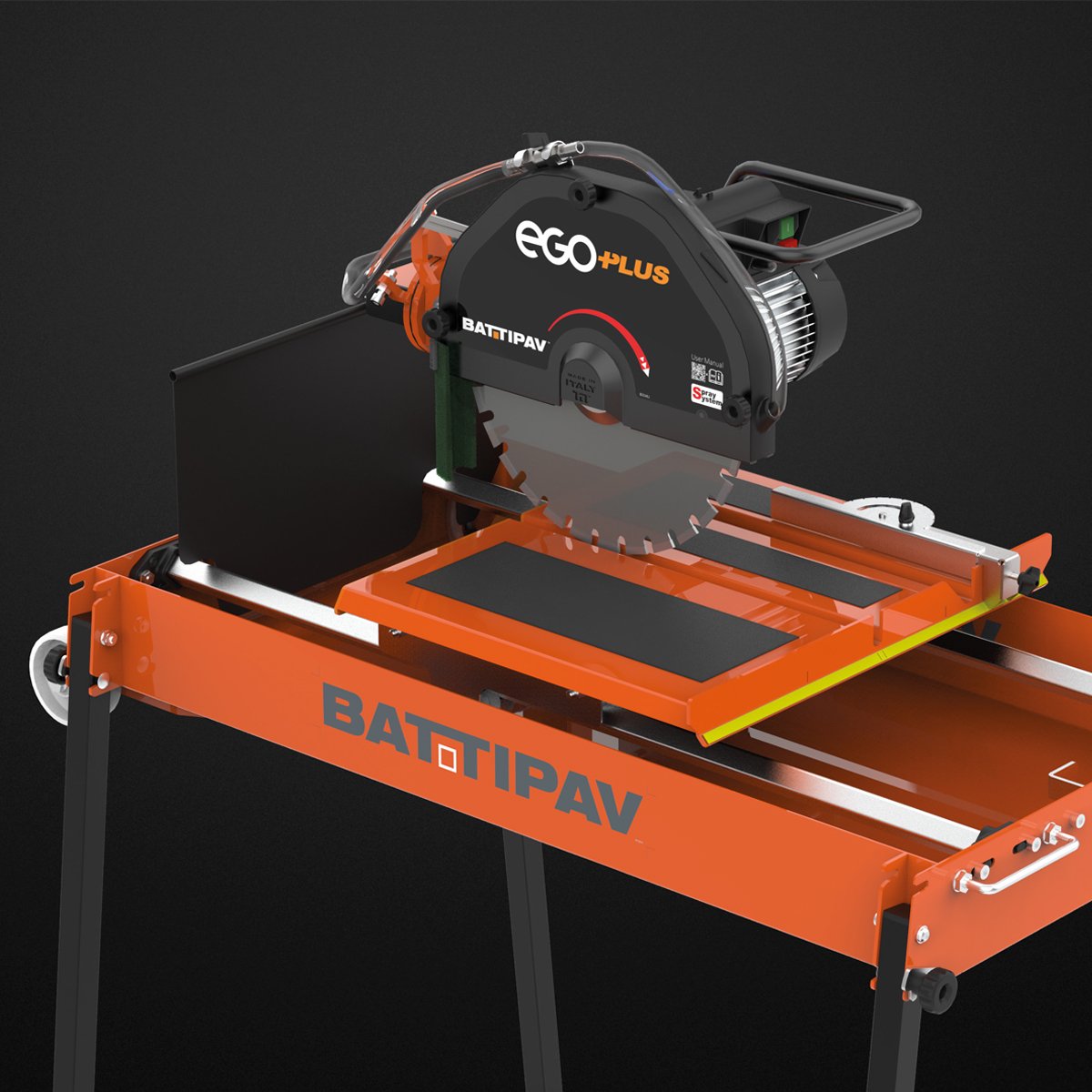

eGO PLUS is a masonry saw ideal for the building sector.It makes cuts pushing the sliding working table or tilting the cutting head. It's planned to work with disks Ø 350 or Ø 300 mm for straight and 45° angle cuts of bricks, stones, concrete-blocks and porcelain gres. TT Power The logo which identify the uniqueness of the electric motors manufactured by Battipav, which is the only company in the cutting machines industry able to develop and manufacture the electric motors that power their saws. AxT (Water for cutting): This trademark represents the winning association between submersible pump and masonry saw. The trademark symbolizes originality and high quality Spray system Diamond blade cooling system. It works on the three vital points of the diamond tool: on the front and on both sides of the rim. It has great efficiency also for 45 degrees cuts. It prevents cutting dust and improves the life of the diamond tool, by creating a flow of misty water inside the blade guard. 45° Cut Cutting head turning at 45° Adjustable head For faster and more precise cutting. The head can be adjusted at the requested height. Sliding Carriage Equipped with 6 registrable nylon wheels with 12 ball-bearings for perfect sliding. Accessories: Included: Transport Wheels Recommended Equipment:
MODEL e GO PLUS Blade diameter (mm) * 350300 Max. straight cutting length (mm) 800 Max. cutting depth for straight cut (mm) Blade Ø350 110 Blade Ø300 85 Max. cutting depth with 2 runs and blade Ø350 (mm) 125 Max. cutting depth for 45° angle cut 80 Tool hole diameter (mm) 25.4 Rotation speed (rpm) 2800 Net weight (kg) 62.5 ELECTRIC MOTOR Single Phase Power (HP / kW) 3.0 / 2.2 Voltage (V) 230 Frequency (Hz) 50 Amperometrical protection (A) 13
eGO PLUS is a masonry saw ideal for the building sector.It makes cuts pushing the sliding working table or tilting the cutting head. It's planned to work with disks Ø 350 or Ø 300 mm for straight and 45° angle cuts of bricks, stones, concrete-blocks and porcelain gres. TT Power The logo which identify the uniqueness of the electric motors manufactured by Battipav, which is the only company in the cutting machines industry able to develop and manufacture the electric motors that power their saws. AxT(Water for cutting): This trademark represents the winning association between submersible pump and masonry saw. The trademark symbolizes originality and high quality Spray system Diamond blade cooling system. It works on the three vital points of the diamond tool: on the front and on both sides of the rim. It has great efficiency also for 45 degrees cuts. It prevents cutting dust and improves the life of the diamond tool, by creating a flow of misty water inside the blade guard. 45° Cut Cutting head turning at 45° Adjustable head For faster and more precise cutting. The head can be adjusted at the requested height. Sliding Carriage Equipped with 6 registrable nylon wheels with 12 ball-bearings for perfect sliding.
Accessories:

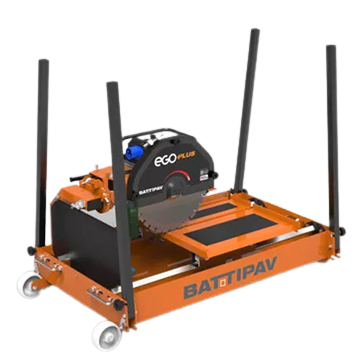

Included: Transport Wheels
Recommended Equipment:
MODEL
eGO PLUS
Blade diameter (mm)*
350300
Max. straight cutting length (mm)
800
Max. cutting depth for straight cut (mm)
Blade Ø350
110
Blade Ø300
85
Max. cutting depth with 2 runs and blade Ø350 (mm)
125
Max. cutting depth for 45° angle cut
80
Tool hole diameter (mm)
25.4
Rotation speed (rpm)
2800
Net weight (kg)
62.5
ELECTRIC MOTOR
Single Phase
Power (HP / kW)
3.0 / 2.2
Voltage (V)
230
Frequency (Hz)
50
Amperometrical protection (A)
13
Kindly contact us to get technical details for a product tailored for your project requirements.
