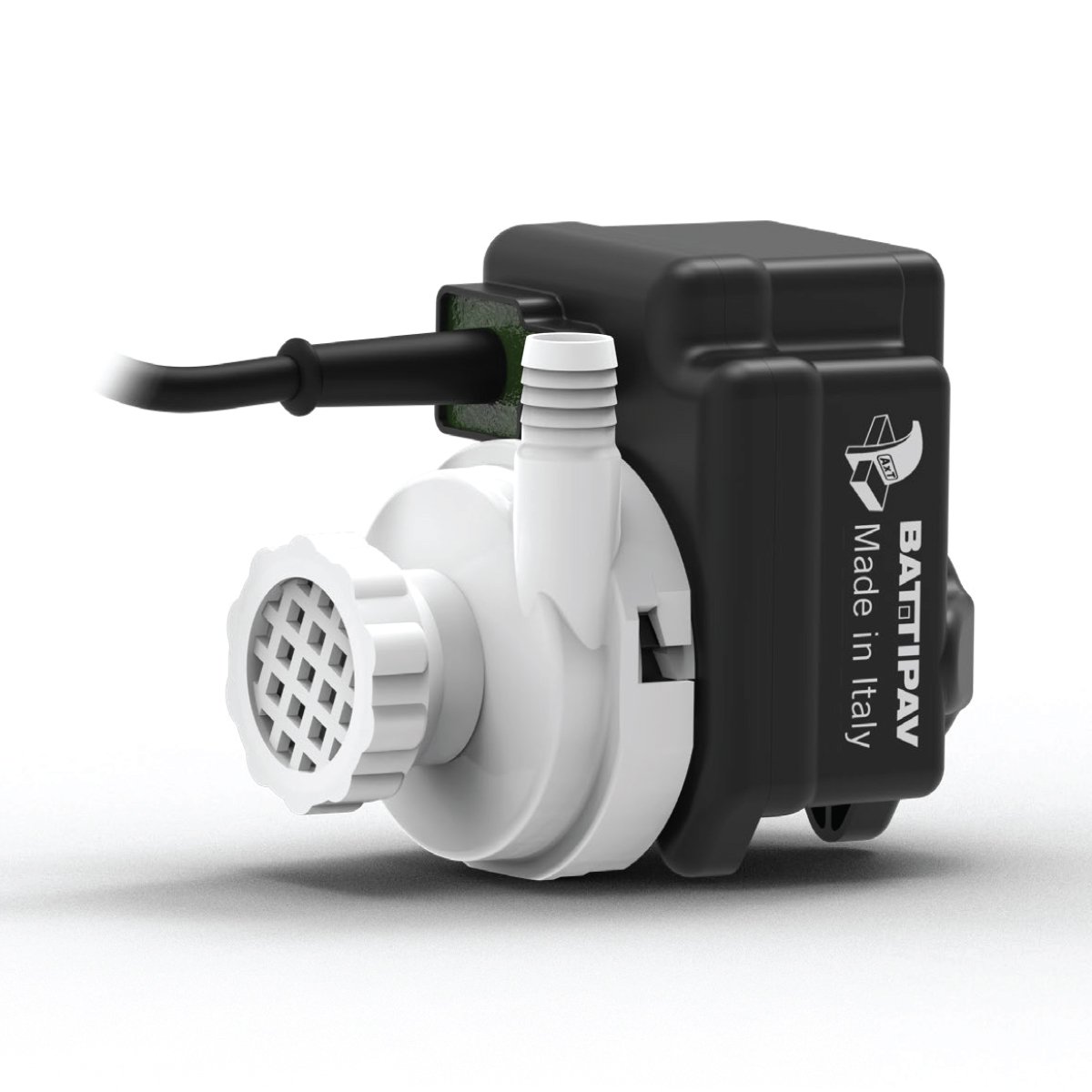

Professional submersible water pump for water recirculation in brick-tile saws. A full range of four models according to the capacity and amount of pumped water. TT Power The logo which identify the uniqueness of the electric motors manufactured by Battipav, which is the only company in the cutting machines industry able to develop and manufacture the electric motors that power their saws. AxT (Water for cutting): This trademark represents the winning association between submersible pump and masonry saw. The trademark symbolizes originality and high quality Spray system Diamond blade cooling system. It works on the three vital points of the diamond tool: on the front and on both sides of the rim. It has great efficiency also for 45 degrees cuts. It prevents cutting dust and improves the life of the diamond tool, by creating a flow of misty water inside the blade guard. Fast Leg The system which makes the storage of the machine much easier. This system ensures more rigidity and steadiness when operating, and allows to stack up to three machines on one pallet. This reduces the encumbrance of the machine by eliminating the packaging. AxT In order to better identify our submerged pumps and to safeguard quality and longevity, each product is marked with the registered trademark AxT. Certified All the pumps in the standard tensions, have TÜV/GS approval. Electrical Tests All the pumps are subject to rigid electrical quality tests. After work Professional submersible water pump for water recirculation in brick-tile saws. Extra Cut A braking system for three-phased motors, which allow a very fast complete stop of the disk after the saw switch-off. Hydraulic Tests Every model is subject to verifications of the respective hydraulic characteristics.
MODEL P0 P1 P2 P3 Water flow rate (L/h) 700 850 1,000 1,560 Head (m) 1.9 2.2 2.4 2.5 Cable length (m) 2.2 2.2 2.2 2.2 Isolation class F F F F IP grade X8 X8 X8 X8 ELECTRIC MOTOR Single Phase Single Phase Single Phase Single Phase Voltage (V) 230 230 230 230 Frequency (Hz) * 50 50 50 50 Power (W) 35 50 55 60
Professional submersible water pump for water recirculation in brick-tile saws. A full range of four models according to the capacity and amount of pumped water. TT Power The logo which identify the uniqueness of the electric motors manufactured by Battipav, which is the only company in the cutting machines industry able to develop and manufacture the electric motors that power their saws. AxT (Water for cutting): This trademark represents the winning association between submersible pump and masonry saw. The trademark symbolizes originality and high quality Spray system Diamond blade cooling system. It works on the three vital points of the diamond tool: on the front and on both sides of the rim. It has great efficiency also for 45 degrees cuts. It prevents cutting dust and improves the life of the diamond tool, by creating a flow of misty water inside the blade guard. Fast Leg The system which makes the storage of the machine much easier. This system ensures more rigidity and steadiness when operating, and allows to stack up to three machines on one pallet. This reduces the encumbrance of the machine by eliminating the packaging. AxT In order to better identify our submerged pumps and to safeguard quality and longevity, each product is marked with the registered trademark AxT. Certified All the pumps in the standard tensions, have TÜV/GS approval. Electrical Tests All the pumps are subject to rigid electrical quality tests. After work Professional submersible water pump for water recirculation in brick-tile saws. Extra Cut A braking system for three-phased motors, which allow a very fast complete stop of the disk after the saw switch-off. Hydraulic Tests Every model is subject to verifications of the respective hydraulic characteristics.
MODEL
P0
P1
P2
P3
Water flow rate (L/h)
700
850
1,000
1,560
Head (m)
1.9
2.2
2.4
2.5
Cable length (m)
2.2
2.2
2.2
2.2
Isolation class
F
F
F
F
IP grade
X8
X8
X8
X8
ELECTRIC MOTOR
Single Phase
Single Phase
Single Phase
Single Phase
Voltage (V)
230
230
230
230
Frequency (Hz)*
50
50
50
50
Power (W)
35
50
55
60
Kindly contact us to get technical details for a product tailored for your project requirements.
