VH01L300

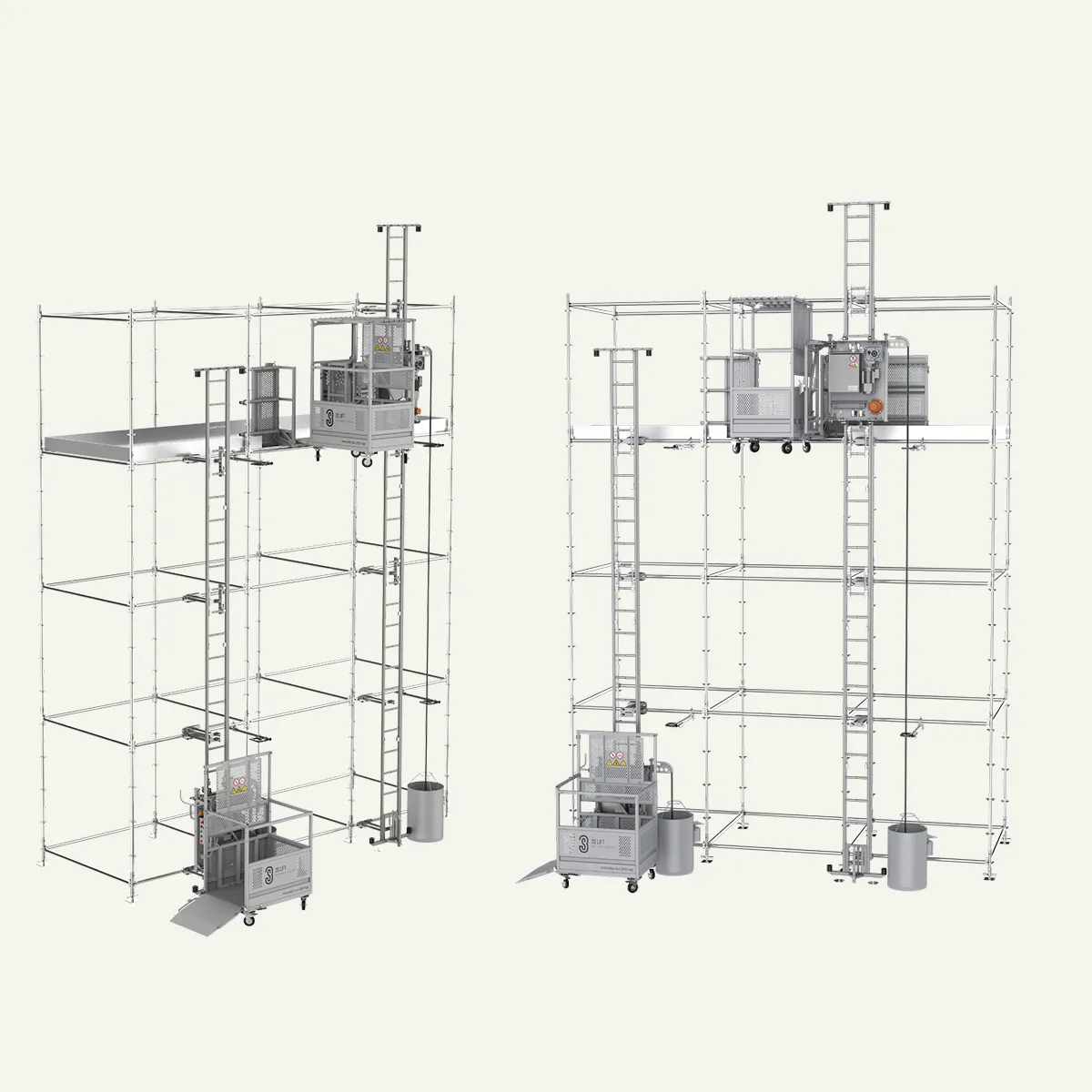

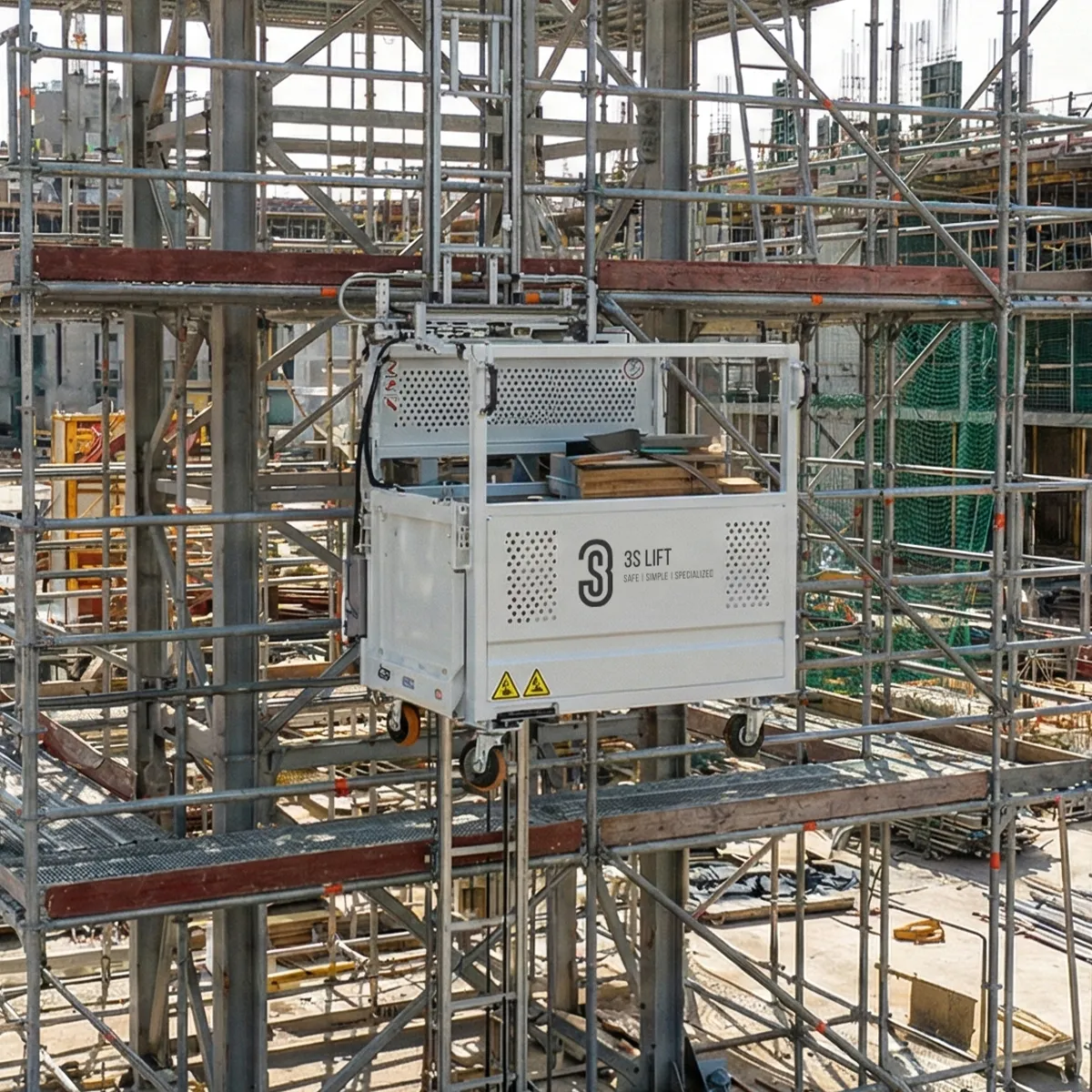

The VH01L300 Vertical Ladder Hoist utilizes 3S INDUSTRY’s signature rack and pinion technology to deliver industrial-grade lifting reliability in a compact footprint. Designed to integrate seamlessly with standard scaffolding systems, this hoist features a unique 90-degree swiveling cradle that allows materials to be loaded and unloaded safely onto the platform deck. With a rated load of 300kg and heights up to 50m, it serves as the logistical backbone for scaffolding erection and dismantling, ensuring continuous vertical flow without occupying the space required by large construction elevators. Features Rack and pinion drive 90-degree swivel cradle Slim ladder profile Frequency inverter control Advantages Positive gear engagement; no rope slip or stretching Platform rotates inwards toward the scaffolding deck Compact mast footprint Regulates power output and motor speed Benefits Operational Stability: Smooth start/stop and consistent speed regardless of load Safety & Ergonomics: Eliminates dangerous reaching over handrails Site Accessibility: 40% reduction in footprint compared to standard hoists Reduced Wear: Reduced current load prevents power spikes Product Details Top Section The top is designed with an anti-overtravel structure to prevent the equipment from detaching from the ladder standard section during operation. Standard Rail Section Constructed from carbon steel, it offers excellent rigidity and high strength. The standard section is equipped with quick-connect bolts for enhanced installation efficiency. Bottom Section Designed with adjustable height to suit different ground conditions, the bottom mast section can be fitted with an integrated mobility kit, enhancing safety and efficiency during installation and relocation. Drive Unit It is equipped with a height adjustment device and can accommodate a portable movement mechanism, facilitating easier equipment installation and mobility. Transport Cradle with Extension It is constructed from high-strength aluminum alloy, featuring electric installation and disassembly functions that eliminate the need for manual handling during setup. Transport Cradle without Extension It is constructed from high-strength aluminum alloy, featuring electric installation and disassembly functions that eliminate the need for manual handling during setup.

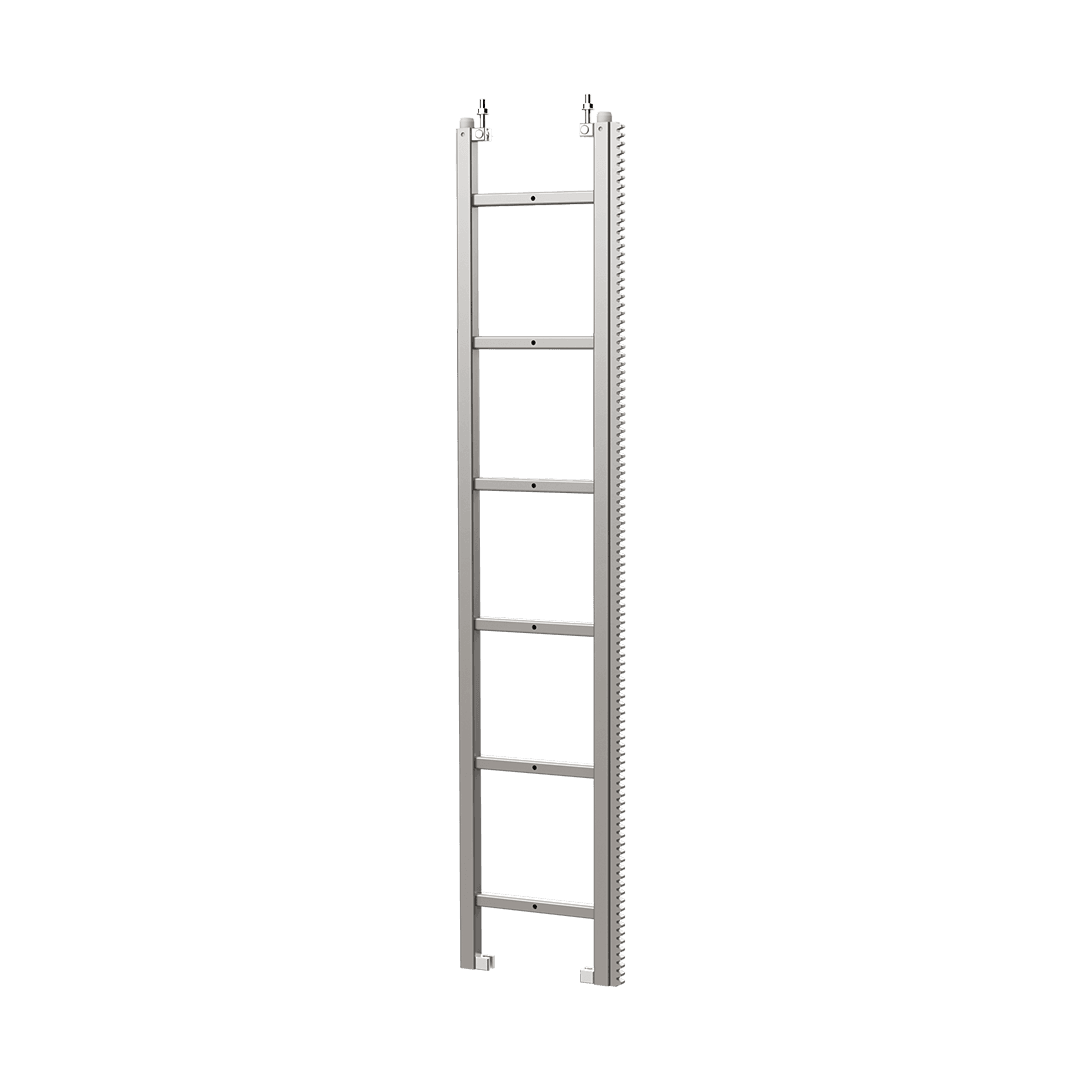

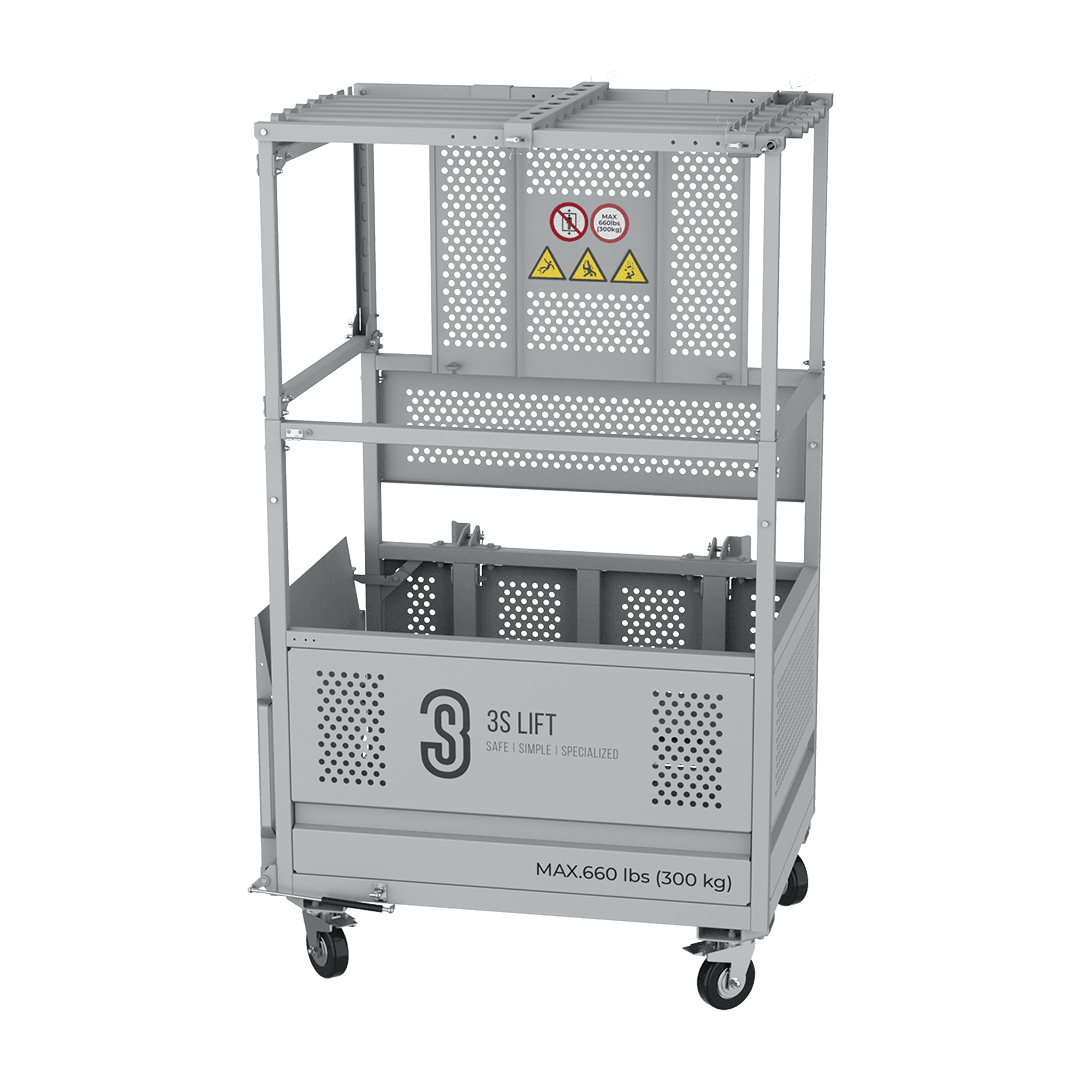

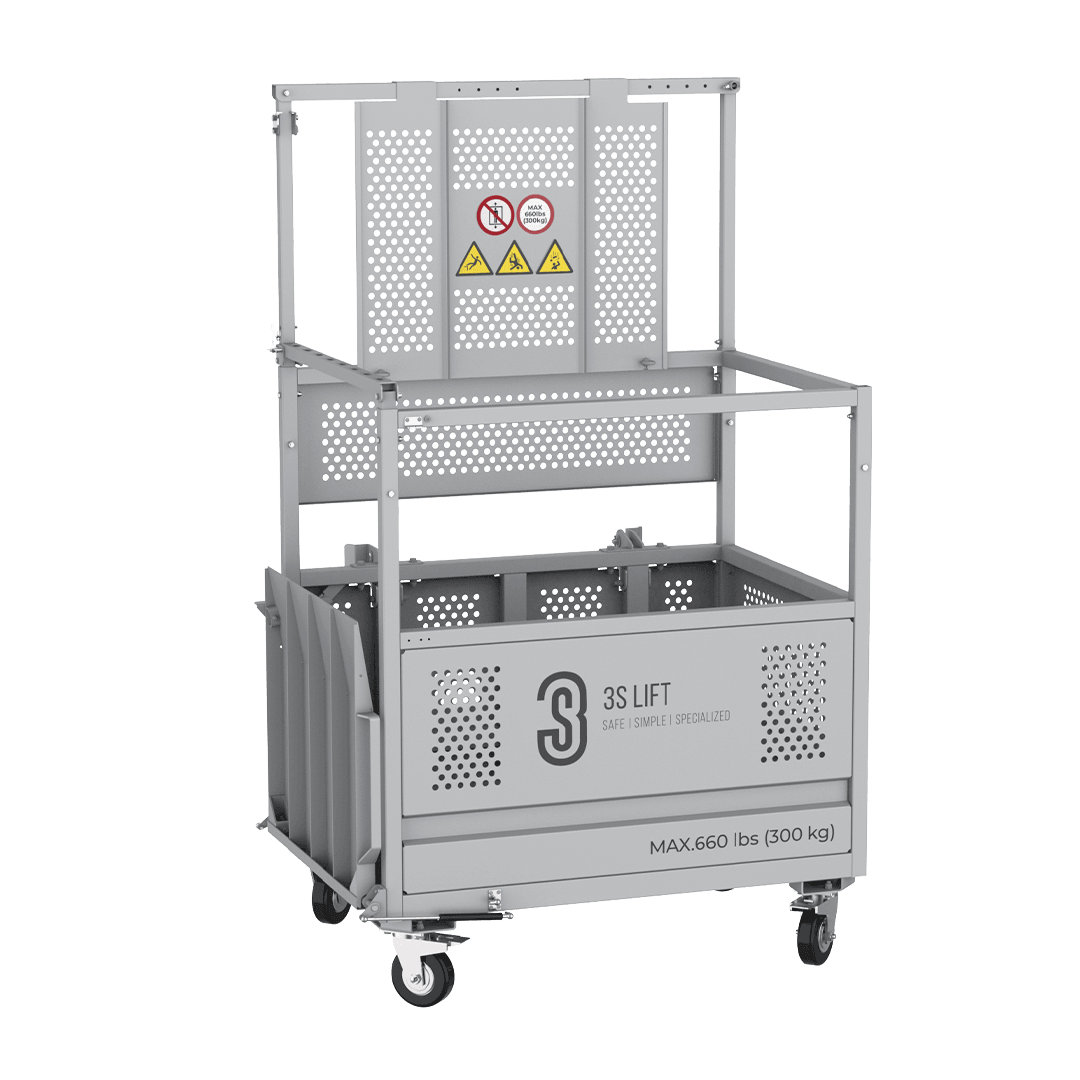

Model VH01L300 Drive Type Rack and Pinion Max. Rated Load 300 kg Max. Lifting Speed 20 m/min Anti-fall Braking Distance ≤ 1.4 m Max. Lifting Height 50 m / 164 ft Platform Dimensions Before expansion: 880x1260x1400 mm; After expansion: 880x1260x2090 mm Single Rail Length/Weight 1.96 m / 24.5 kg Motor Power 2.2 kW Operating Voltage 230 V 50 Hz (16A Max Current) Certification CE / EN 12158-1
