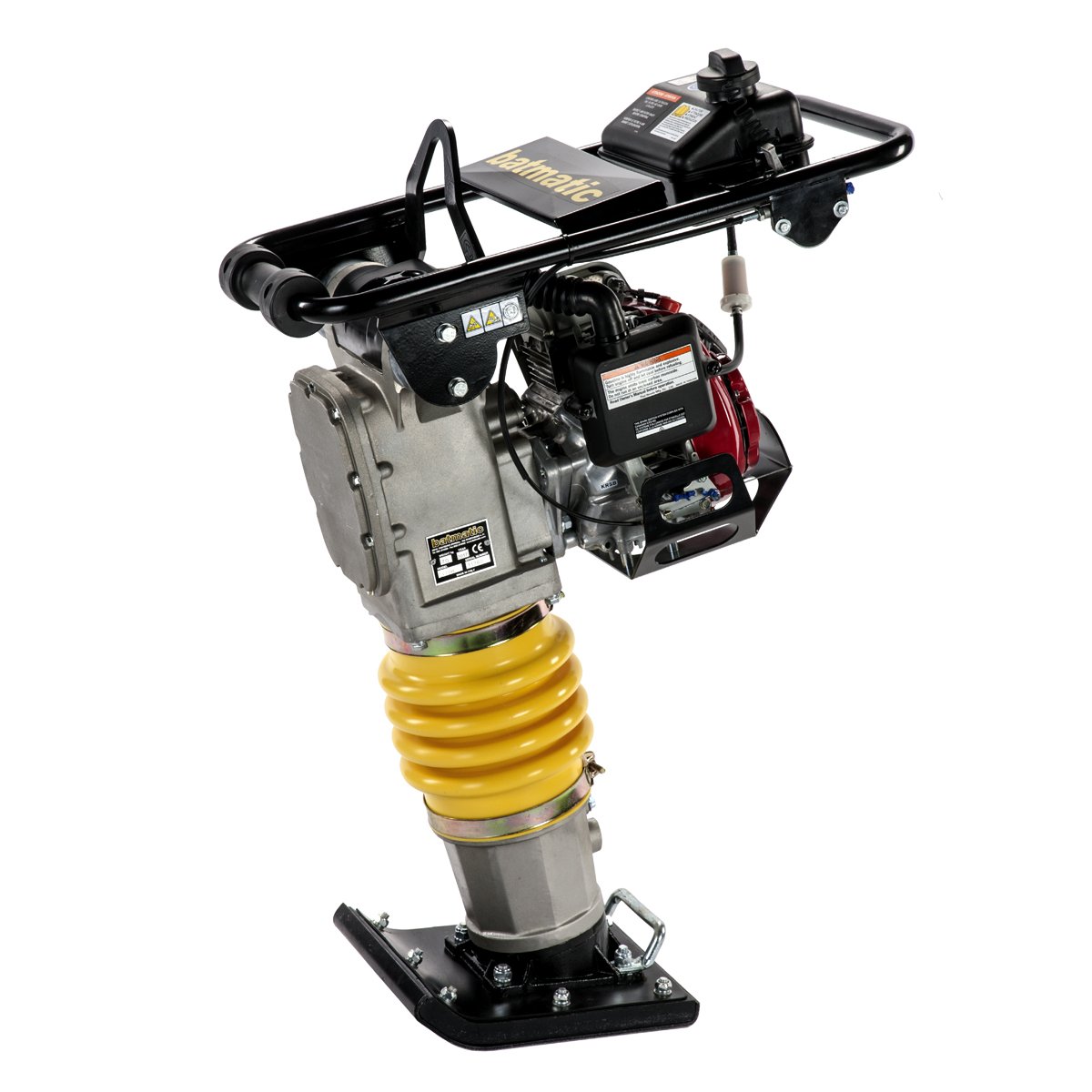

CV70H / CV80Y

Batmatic’s CV70H and CV80Y tamping rammers are trench specialists, built for compacting in the narrow spaces every utility contractor knows: power line ducts, gas runs and water pipeline trenches. A rammer’s high-impact foot consolidates cohesive soils in confined widths where a vibrating plate only skims, which is why every UAE utilities crew keeps one on the truck. The two models give a choice of engine fit, both carried on protected bellows and a shoe geometry that keeps the bounce controlled so the operator can walk the trench line quickly and evenly. Layer-by-layer trench compaction done properly is what stops the reinstatement sinking six months later. Al Wisam Trading stocks both rammers, plus bellows, shoes and service parts, at our Sharjah warehouse. Suitable for compacting in narrow spaces: trenches, power line gas and water pipeline trenches.

MODEL CV70H CV80Y Centrifugal force (kN / ton) 16 / 1.6 16 / 1.6 Frequency (vpm) 600 - 695 600 - 695 Compaction depth (cm) 60 - 70 60 - 70 Plate dimension (mm) Length 330 330 Width 285 285 Weight (kg) 70 81 Travelling speed (m/min) 15 - 18 15 - 18 Climbing ability (%) 20 20 ENGINE Honda Yanmar Model GXR 120 L48 Fuel Petrol Diesel Power (kW / HP) 2.6 / 3.5 3.1 / 4.2
