Construction Hoists in the UAE: How to Choose the Right Personnel and Material Hoist for a High Rise Project

On a UAE high rise, the tower crane gets the attention and the construction hoist quietly decides whether the program holds. Every block of concrete work, every pallet of blockwork, every fit out trade and every shift change moves through the same vertical bottleneck. When that bottleneck is sized correctly the upper floors stay busy. When it is undersized, crews queue at ground level in 45 degree heat while the float in the program disappears one shift at a time.

This guide sets out how contractors, project managers and plant managers across the UAE should approach a construction hoist selection, what the technical specifications actually mean on site, and which questions to settle before a purchase order is raised.

What a construction hoist is, and what makes it different

A construction hoist, sometimes called a builder's hoist, site hoist or personnel and material hoist, is a temporary rack and pinion lift erected against the face of a building under construction. Unlike a permanent passenger lift, it is designed to be erected quickly, extended as the structure rises, and dismantled at handover.

The drive principle is important. Instead of ropes and a counterweight, the cage carries a gear motor that drives a pinion running against a fixed rack on the mast. It is a forced drive system: the cage climbs the structure itself rather than hanging from it. That is why rack and pinion hoists can be extended to great heights simply by adding mast sections, and why they are the standard choice for tower construction.

Mast sections and tie ins

The mast is the primary load bearing structure. It provides vertical guidance for the cage, supports the weight of the equipment and the people inside it, and can be extended section by section as the building grows. Mast ties anchor the mast back to the building structure, restrain sway and transfer lateral loads into the slab edge. Tie in design and spacing are not an afterthought; they are a structural item that needs coordinating with the main contractor early.

Single cage or twin cage

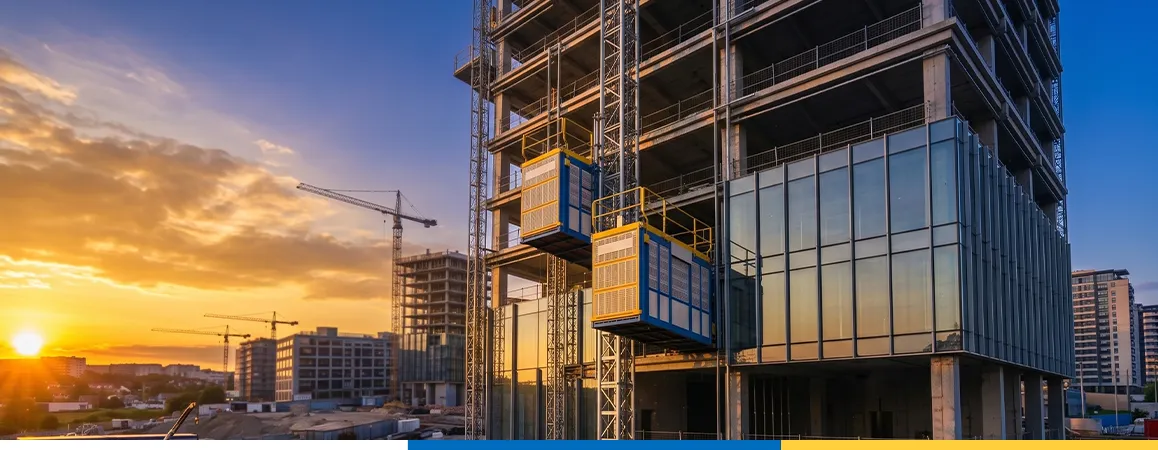

The first real decision is how many cages you need on one mast. A single cage installation is simpler, cheaper and faster to erect. A twin cage installation places two cages on the same mast and effectively doubles vertical traffic capacity without doubling the footprint at ground level or the number of tie in points.

The twin cage case is strongest when the site has one of three characteristics: a tall structure where round trip times are long, a compressed program where multiple trades are working at height simultaneously, or a constrained ground floor where there is simply nowhere to put a second mast. On a busy tower, the ability to handle a peak shift change on one cage while the other continues delivering materials is often the single biggest throughput gain available.

The CH Series is available in both configurations: the CH200 as a single cage unit and the CH200/200 as a twin cage unit, both rated at 2000 kg per cage.

Speed: what 46 m/min and 63 m/min really mean

Rated speed looks like a small line on a datasheet and behaves like a large line on the programme. The CH Series offers 0 to 46 m/min or 0 to 63 m/min. On a 200 m tower, that difference changes the single leg travel time by well over a minute, and a hoist that runs dozens of cycles a day will convert those minutes into hours across a month.

The higher speed option earns its cost on tall, fast moving structures where the hoist is the primary route to the upper floors. On shorter buildings, or where the hoist mainly serves material distribution across the lower half of the structure, the lower speed option is usually the better commercial decision. The honest test is to model your round trip time at both speeds against the peak hour demand rather than choosing on headline figures.

Sizing the cage to the load, not just the crew

A hoist that carries the workforce comfortably can still fail the project if it cannot take the materials. Long items such as ducting, pipework, rebar bundles and glazing frames are constrained by cage length, not by rated load. A cage rated at 2000 kg with internal dimensions of 3200 x 1500 x 2200 mm accepts both a full crew and the awkward, long loads that would otherwise wait for a crane pick.

Before specifying, list the five most awkward items your trades will need to lift, with their real dimensions. That list will tell you more about the correct cage than the headcount will.

Why variable frequency control matters on a UAE site

Variable frequency control, listed on the datasheet as VFC or a VFD unit, is often treated as a comfort feature. It is actually a commercial one for three reasons.

• Low starting current. A hoist that ramps up instead of slamming across the line draws far less current at start. On a site running from a temporary supply or a generator, that can be the difference between a stable board and repeated nuisance trips.
• Reduced energy consumption. Smoother acceleration and controlled deceleration lower the total energy drawn across thousands of cycles, which shows up directly in the site electricity bill.
• Mechanical life. Soft start and soft stop reduce shock loading on the rack, pinion and gear motor, which reduces wear and unplanned downtime across a multi year program.

There is a fourth benefit that is harder to quantify but obvious on site. A cage that starts and stops smoothly is a cage that operatives are willing to use every trip, which matters when the alternative is walking.

CH Series specifications at a glance

Full technical data for each configuration is available on request, and Al Wisam Trading can tailor the specification to the mast height, tie in geometry and power supply of a specific project.

The safety systems to confirm before you sign

Vertical access is one of the highest consequence risks on any site, and the safety chain should be specified, not assumed.

• Overspeed safety device. If the descending speed of the cage exceeds the rated speed, the device locks automatically, the cage stops immediately and power is cut.
• Tie in arrangement. The tie in anchors the mast to the building, restrains tower sway and transfers lateral loads, so it must be designed for the actual structure and the actual mast height.
• Drive integrity. A rack and pinion forced drive with correctly maintained guide rollers keeps the cage positively engaged with the mast at all times.
• Controlled operation. A VFD unit with defined control logic and smooth start and stop reduces both mechanical shock and operator error.
